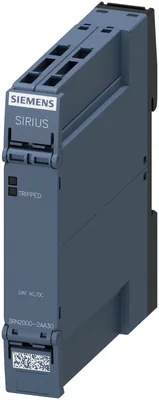

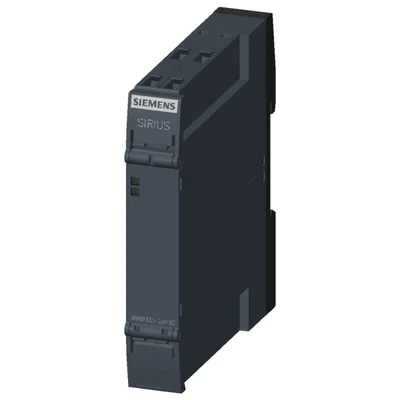

Siemens 3RN2000-2AA30

thermistor motor protection relay compact evaluation unit, 17.5 mm enclosure, spring-loaded terminal, 1 change-over contact, Us = 24 V AC/DC, Auto RESET, suitable for bimetallic temperature switches, supply=output voltage, 1 LED (tripped)

SiemensMFR # 3RN2000-2AA30SKU # CEY-937FC77F021D

product brand nameSIRIUS

product categorySIRIUS 3RN2 thermistor motor protection

product designationThermistor motor protection relay

product type designation3RN2

product functionthermistor motor protection

display version LEDYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RN2000-2AA30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categorySIRIUS 3RN2 thermistor motor protection

product designationThermistor motor protection relay

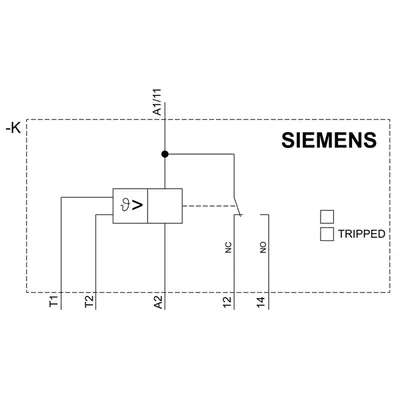

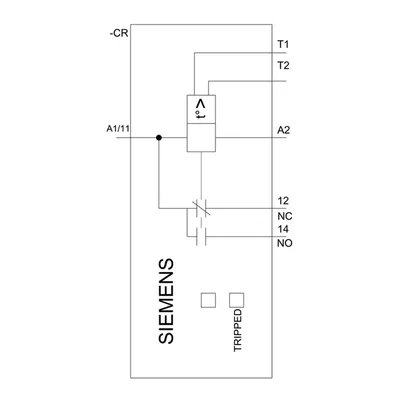

design of the productCompact evaluation unit, suitable for bimetallic switch (terminal A1 jumpered with root of changeover contact)

product type designation3RN2

General technical data

product functionthermistor motor protection

display version LEDYes

at AC in hot operating state0.3 W

at DC in hot operating state0.3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

degree of pollution3

surge voltage resistance rated value4 kV

shock resistance according to IEC 60068-2-2711 g / 15 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 0.35 mm

mechanical service life (operating cycles) typical10 000 000

at 24 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8

Net Weight0.098 kg

Product Function

error memoryNo

dynamic open-circuit detectionNo

external resetNo

auto-RESETYes

manual RESETNo

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

control supply voltage at DC rated value24 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

at 24 V1.8 A

at 24 V2 ms

Measuring circuit

buffering time in the event of power failure minimum40 ms

Precision

relative metering precision9 %

Auxiliary circuit

material of switching contactsAgSnO2

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts1

operational current of auxiliary contacts at AC-15 maximum3 A

at 24 V1 A

Main circuit

operating frequency rated value50 ... 60 Hz

at 24 V1 A

continuous current of the DIAZED fuse link of the output relay6 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationwithout galvanic isolation

between input and outputNo

between the voltage supply and other circuitsNo

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

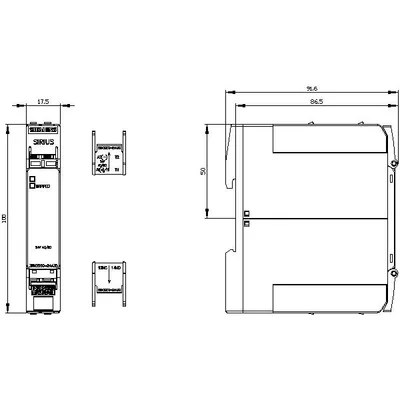

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width17.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity during operation maximum70 %
