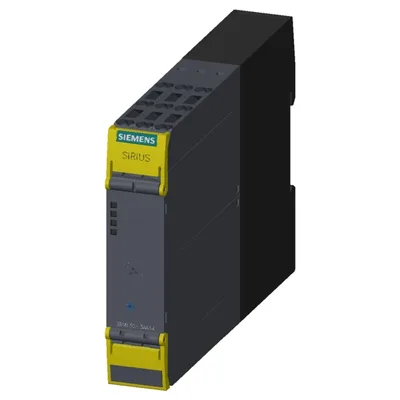

Siemens 3RM1302-3AA14

Failsafe reversing starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC, screw/spring-loaded terminals (push-in)

SiemensMFR # 3RM1302-3AA14SKU # CEY-8EF3B0394DA9

product brand nameSIRIUS

product categoryMotor starter

product designationFailsafe reversing starters

product type designation3RM1

product functionfail-safe reversing starter

intrinsic device protectionYes

Have questions?Chat on WhatsApp

About This Product

Failsafe reversing starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 110-230 V AC, screw/spring-loaded terminals (push-in)

Siemens 3RM1302-3AA14

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryMotor starter

product designationFailsafe reversing starters

design of the productWith electronic overload protection and safety-related disconnection

product type designation3RM1

General technical data

equipment version according to IEC 60947-4-23

product functionfail-safe reversing starter

intrinsic device protectionYes

for power supply reverse polarity protectionYes

suitability for operation device connector 3ZY12No

at AC in hot operating state per pole0.1 W

without load current share typical3.22 W

insulation voltage rated value500 V

overvoltage categoryIII

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

between control and auxiliary circuit250 V

shock resistance6 g / 11 ms

vibration resistance1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz

operating frequency maximum1 1/s

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.301 kg

direct startNo

reverse startingYes

product function short circuit protectionNo

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1Class A

due to burst according to IEC 61000-4-43 kV / 5 kHz

due to conductor-earth surge according to IEC 61000-4-54 kV signal lines 2 kV

due to conductor-conductor surge according to IEC 61000-4-52 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC

field-bound HF interference emission according to CISPR11Class B for domestic, business and commercial environments; Class A for industrial environments at 110 V DC

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

safe stateLoad circuit open

test wear-related service life necessaryYes

function test interval maximum1 a

diagnostics test interval by internal test function maximum600 s

stop category according to IEC 60204-10

with low demand rate according to SN 319200.6 %

with high demand rate according to SN 3192040 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 3192016 FIT

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 3

ISO 13849

category according to EN ISO 13849-14

performance level (PL) according to ISO 13849-1PL e

category according to ISO 13849-14

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryNo

IEC 61508

according to IEC 615083

safety device type according to IEC 61508-2Type B

PFHD with high demand rate according to IEC 615082E-8 1/h

PFDavg with low demand rate according to IEC 615081.75E-5

Safe failure fraction (SFF)99.4 %

hardware fault tolerance according to IEC 615081

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 2

PFHD with high demand rate according to IEC 61508 relating to ATEX5E-8 1/h

PFDavg with low demand rate according to IEC 61508 relating to ATEX0.0005

hardware fault tolerance according to IEC 61508 relating to ATEX0

T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a

certificate of suitability according to ATEX directive 2014/34/EUBVS 12 ATEX F 002 X

type of protection according to ATEX directive 2014/34/EUII (2)G [Ex e] [Ex d] [Ex px], II (2)D [Ex t] [Ex p], I (M2) [Ex d]

Main circuit

number of poles for main current circuit3

design of the switching contactHybrid

adjustable current response value current of the current-dependent overload release0.4 ... 2 A

minimum load [%]20 %; from set rated current

type of the motor protectionsolid-state

operating voltage rated value48 ... 500 V

relative symmetrical tolerance of the operating voltage10 %

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative symmetrical tolerance of the operating frequency10 %

at AC at 400 V rated value2 A

at AC-3 at 400 V rated value2 A

at AC-53a at 400 V at ambient temperature 40 °C rated value2 A

ampacity when starting maximum16 A

operating power for 3-phase motors at 400 V at 50 Hz0.09 ... 0.75 kW

Inputs/ Outputs

input voltage at digital input at DC rated value110 V

input voltage at digital input at AC rated value110 V

for signal <1> at DC1.5 mA

with signal <0> at DC0.25 mA

at 110 V0.2 mA

at 230 V0.4 mA

at 110 V1.1 mA

at 230 V2.3 mA

number of CO contacts for auxiliary contacts1

operational current of auxiliary contacts at AC-15 at 230 V maximum3 A

operational current of auxiliary contacts at DC-13 at 24 V maximum1 A

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value110 ... 230 V

at 60 Hz rated value110 ... 230 V

relative negative tolerance of the control supply voltage at AC at 60 Hz15 %

relative positive tolerance of the control supply voltage at AC at 60 Hz10 %

at 50 Hz110 ... 230 V

at 60 Hz110 ... 230 V

1 rated value50 Hz

2 rated value60 Hz

relative negative tolerance of the control supply voltage at DC15 %

relative positive tolerance of the control supply voltage at DC10 %

control supply voltage 1 at DC rated value110 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

at 110 V in standby mode of operation8 mA

at 230 V in standby mode of operation6 mA

at 110 V when switching on40 mA

at 230 V when switching on25 mA

at 110 V during operation25 mA

at 230 V during operation14 mA

in standby mode of operation4 mA

during operation30 mA

at AC at 110 V1 200 mA

at AC at 230 V2 900 mA

at AC at 110 V at switching on of motor1 200 mA

at AC at 230 V at switching on of motor2 900 mA

at AC at 110 V1 ms

at AC at 230 V1 ms

at AC at 110 V at switching on of motor1 ms

at AC at 230 V at switching on of motor1 ms

— with bypass circuit1.4 W

— with bypass circuit3.22 W

Response times

ON-delay time90 ... 120 ms

OFF-delay time60 ... 90 ms

Power Electronics

at 40 °C rated value2 A

at 50 °C rated value2 A

at 55 °C rated value2 A

at 60 °C rated value2 A

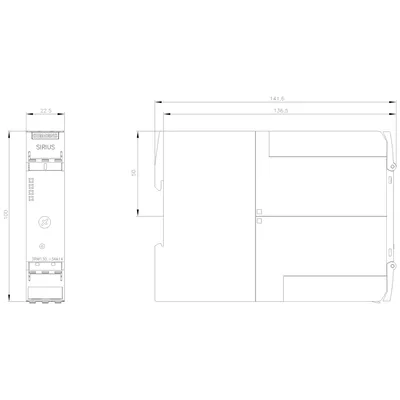

Installation/ mounting/ dimensions

mounting positionvertical, horizontal, standing (observe derating)

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width22.5 mm

depth141.6 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side3.5 mm

— downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

environmental category during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Communication/ Protocol

PROFINET IO protocolNo

PROFIsafe protocolNo

product function bus communicationNo

protocol is supported AS-Interface protocolNo

Connections/ Terminals

type of electrical connectionscrew-type terminals for main circuit, spring-loaded terminals (push-in) for control circuit

for main current circuitscrew-type terminals

for auxiliary and control circuitspring-loaded terminals (push-in)

wire length for motor unshielded maximum100 m

solid1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²)

finely stranded with core end processing1x (0,5 ... 4 mm²), 2x (0,5 ... 1,5 mm²)

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 4 mm²

solid or stranded0.5 ... 1.5 mm²

finely stranded with core end processing0.5 ... 1 mm²

finely stranded without core end processing0.5 ... 1.5 mm²

— solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

— finely stranded with core end processing1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)

— finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts1x (20 ... 16), 2x (20 ... 16)

AWG number as coded connectable conductor cross section for main contacts20 ... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 16

UL/CSA ratings

— at 230 V rated value0.125 hp

— at 200/208 V rated value0.333 hp

— at 220/230 V rated value0.333 hp

— at 460/480 V rated value0.75 hp

operational current at AC at 480 V according to UL 5082 A
