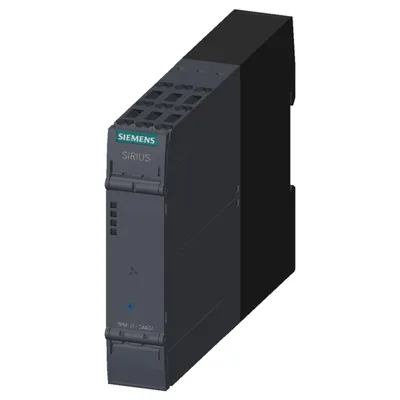

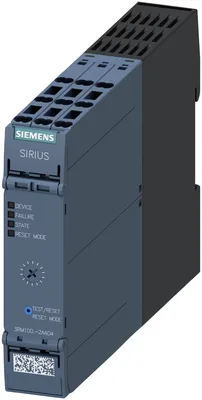

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RM1002-2AA04

direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 24 V DC, spring-loaded terminal (push-in)

SiemensMFR # 3RM1002-2AA04SKU # CEY-8EF3B02F04AC

product brand nameSIRIUS

product categoryMotor starter

product designationDirect-on-line starter

design of the productwith electronic overload protection

product type designation3RM1

product functionDirect-on-line starter

Have questions?Chat on WhatsApp

About This Product

direct-on-line starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 24 V DC, spring-loaded terminal (push-in)

Siemens 3RM1002-2AA04

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryMotor starter

product designationDirect-on-line starter

design of the productwith electronic overload protection

product type designation3RM1

General technical data

equipment version according to IEC 60947-4-23

product functionDirect-on-line starter

intrinsic device protectionYes

for power supply reverse polarity protectionNo

suitability for operation device connector 3ZY12Yes

at AC in hot operating state per pole0.1 W

without load current share typical1.68 W

insulation voltage rated value500 V

overvoltage categoryIII

surge voltage resistance rated value6 kV

between main and auxiliary circuit500 V

between control and auxiliary circuit250 V

shock resistance6 g / 11 ms

vibration resistance1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz

operating frequency maximum1 1/s

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.26 kg

direct startYes

reverse startingNo

product function short circuit protectionNo

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1Class A

due to burst according to IEC 61000-4-43 kV / 5 kHz

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11Class B for the domestic, business and commercial environments

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments

Safety related data

product function suitable for safety functionNo

safety-related switching onNo

safety-related switching OFFNo

test wear-related service life necessaryNo

ISO 13849

overdimensioning according to ISO 13849-2 necessaryNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Main circuit

number of poles for main current circuit3

design of the switching contactHybrid

design of the switching contact as NO contact for signaling functionOUT, electronic, 24 V DC, 15 mA

adjustable current response value current of the current-dependent overload release0.4 ... 2 A

minimum load [%]20 %; from set rated current

type of the motor protectionsolid-state

operating voltage rated value48 ... 500 V

relative symmetrical tolerance of the operating voltage10 %

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative symmetrical tolerance of the operating frequency10 %

at AC at 400 V rated value2 A

at AC-3 at 400 V rated value2 A

at AC-53a at 400 V at ambient temperature 40 °C rated value2 A

ampacity when starting maximum16 A

operating power for 3-phase motors at 400 V at 50 Hz0.09 ... 0.75 kW

Inputs/ Outputs

input voltage at digital input at DC rated value24 V

for signal <1> at DC11 mA

with signal <0> at DC1 mA

number of CO contacts for auxiliary contacts1

operational current of auxiliary contacts at AC-15 at 230 V maximum3 A

operational current of auxiliary contacts at DC-13 at 24 V maximum1 A

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value19.2 ... 30 V

relative negative tolerance of the control supply voltage at DC20 %

relative positive tolerance of the control supply voltage at DC25 %

control supply voltage 1 at DC rated value24 V

initial value0.8

full-scale value1.25

in standby mode of operation25 mA

during operation70 mA

at 24 V0.28 A; values at 25 °C

at DC at 24 V300 mA

at DC at 24 V at switching on of motor130 mA

at 24 V85 ms

at DC at 24 V80 ms

at DC at 24 V at switching on of motor20 ms

— with bypass circuit0.6 W

— with bypass circuit1.68 W

Response times

ON-delay time60 ... 90 ms

OFF-delay time60 ... 90 ms

Power Electronics

at 40 °C rated value2 A

at 50 °C rated value2 A

at 55 °C rated value2 A

at 60 °C rated value2 A

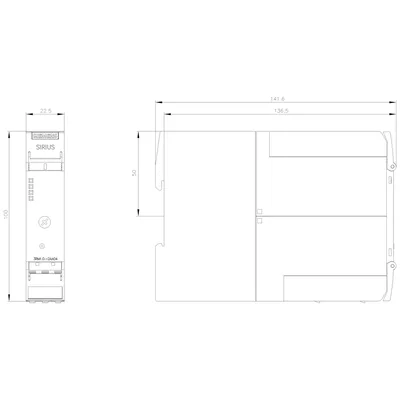

Installation/ mounting/ dimensions

mounting positionvertical, horizontal, standing (observe derating)

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height100 mm

width22.5 mm

depth141.6 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side3.5 mm

— downwards50 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

environmental category during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Communication/ Protocol

PROFINET IO protocolNo

PROFIsafe protocolNo

product function bus communicationNo

protocol is supported AS-Interface protocolNo

Connections/ Terminals

type of electrical connectionspring-loaded terminals (push-in) for main circuit, spring-loaded terminals (push-in) for control circuit

for main current circuitspring-loaded terminals (push-in)

for auxiliary and control circuitspring-loaded terminals (push-in)

wire length for motor unshielded maximum100 m

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing1x (0.5 ... 4 mm²)

solid or stranded0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid or stranded0.5 ... 1.5 mm²

finely stranded with core end processing0.5 ... 1 mm²

finely stranded without core end processing0.5 ... 1.5 mm²

— solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

— finely stranded with core end processing1x (0,5 ... 1,0 mm²), 2x (0,5 ... 1,0 mm²)

— finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts1x (20 ... 16), 2x (20 ... 16)

AWG number as coded connectable conductor cross section for main contacts20 ... 12

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 16

UL/CSA ratings

— at 230 V rated value0.125 hp

— at 200/208 V rated value0.333 hp

— at 220/230 V rated value0.333 hp

— at 460/480 V rated value0.75 hp

operational current at AC at 480 V according to UL 5082 A
