How can I get a price quote for Siemens 3RK3511-2BA10?

You can request a fast quote for Siemens 3RK3511-2BA10 from Yılsa Engineering. Reference part number CEY-8EF3B0394E43. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK3511-2BA10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK3511-2BA10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK3511-2BA10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

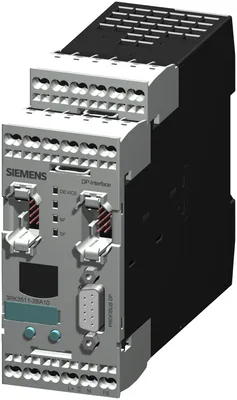

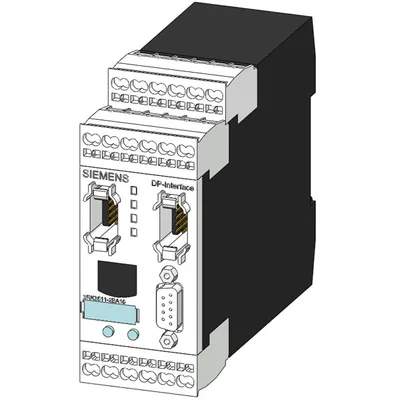

Siemens 3RK3511-2BA10

SIRIUS, interface module DP interface, for modular safety system 3RK3 PROFIBUS DP interface 12 Mbps, RS 485 45 mm overall width spring-type terminal can be parameterized via Safety ES without connection cable

SiemensMFR # 3RK3511-2BA10SKU # CEY-8EF3B0394E43

product brand nameSIRIUS

product categoryModular safety system

product designationInterface module

design of the productDP-Interface

certificate of suitability UL approvalYes

degree of pollution2

Have questions?Chat on WhatsApp

About This Product

Siemens 3RK3511-2BA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryModular safety system

product designationInterface module

design of the productDP-Interface

General technical data

certificate of suitability UL approvalYes

degree of pollution2

shock resistance15 g / 11 ms

according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.266 kg

Ambient conditions

installation altitude at height above sea level maximum4 000 m

relative humidity during operation10 ... 95 %

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV (power ports)

due to conductor-earth surge according to IEC 61000-4-5Test Level 0.5 KV / 1 KV

Communication/ Protocol

PROFIBUS DP protocolYes

Control circuit/ Control

type of voltageDC

inrush current peak at 24 V70 A
