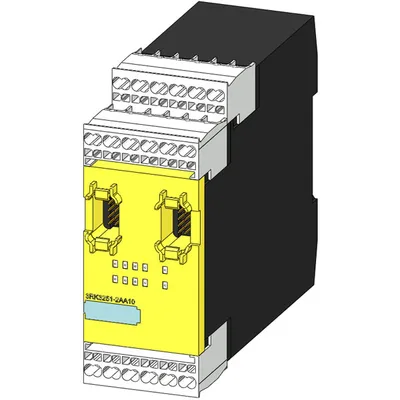

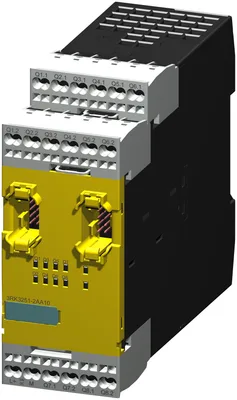

Siemens 3RK3251-2AA10
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular safety system 3RK3 4/8 F-RO, 24 V DC/2 A configurable via MSS ES 45 mm width spring-loaded terminal up to SIL 3 (IEC 61508) up to Performance Level e (ISO 13849-1) without connecting cable
product brand nameSIRIUS
product categoryModular Safety System
design of the product4/8 F-RO
EMERGENCY OFF functionNo
protective door monitoringNo
evaluation: selector switchNo
About This Product
successor 3SK2, S7-1200F or ET200SP when AS-i is used for modular safety system 3RK3 4/8 F-RO, 24 V DC/2 A configurable via MSS ES 45 mm width spring-loaded terminal up to SIL 3 (IEC 61508) up to Performance Level e (ISO 13849-1) without connecting cable
Siemens 3RK3251-2AA10
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIRIUS
product categoryModular Safety System
design of the product4/8 F-RO
EMERGENCY OFF functionNo
protective door monitoringNo
evaluation: electro-sensitive protective equipmentNo
evaluation: selector switchNo
evaluation: two-hand operator panelNo
evaluation: enabling switchNo
monitored start-upNo
insulation voltage rated value300 V
degree of pollution3
surge voltage resistance rated value4 000 V
shock resistance15 g / 11 ms
vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight0.418 kg
installation altitude at height above sea level maximum2 000 m
relative humidity during operation10 ... 95 %
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV (power ports)
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m, 3 V/m, 1 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
category according to EN 954-14
IEC 62061
Safety Integrity Level (SIL) according to IEC 62061SIL 3
PFHD with high demand rate according to IEC 620617.15E-9 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
performance level (PL) according to ISO 13849-1PL e
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
T1 value for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
design of the fuse link for short-circuit protection of non-solid-state switching element requiredNH Typ 3NA, DIAZED Typ 5SB, NEOZED Typ 5SE
Inputs/ Outputs
parameterizable outputsYes
safety-related0
non-safety-related0
number of outputs for testing contact-based sensors0
1-channel8
2-channel0
safety-related 2-channel0
non-safety-related0
at 24 V1 A
at 230 V0.1 A
at 24 V2 A
at 230 V2 A
type of voltageDC
control supply voltage 1 at DC rated value24 V
mounting positionvertical
fastening methodDIN rail

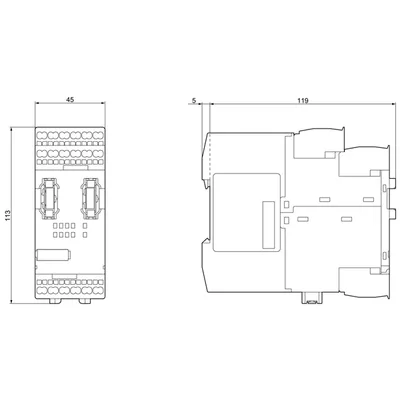

height113 mm
width45 mm
depth124 mm
type of electrical connectionspring-loaded terminals
