How can I get a price quote for Siemens 3RK3121-2AC00?

You can request a fast quote for Siemens 3RK3121-2AC00 from Yılsa Engineering. Reference part number CEY-8EF3B0394E59. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK3121-2AC00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK3121-2AC00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK3121-2AC00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

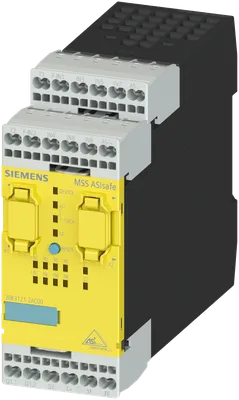

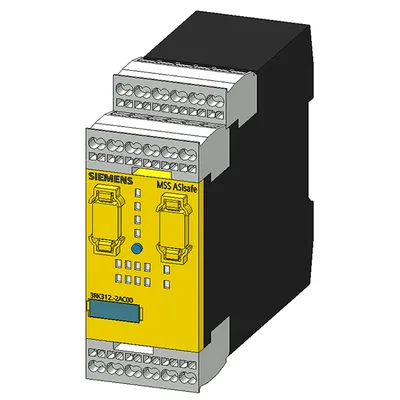

Siemens 3RK3121-2AC00

SIRIUS, central unit 3RK3 ASIsafe Basic for modular safety system 3RK3 1/2 F-DI, 6 DI, 1 F-RO, 1 F-DO,24 V DC monitoring of AS-i devices control of 8 safe outputs on AS-Interface bus configurable using software Safety ES 45 mm width spring-loaded terminal up to SIL 3 (IEC 61508) up to Performance Level E (ISO 13849-1) no expansion module connectable

SiemensMFR # 3RK3121-2AC00SKU # CEY-8EF3B0394E59

product brand nameSIRIUS

product categoryModular Safety System

product designationCentral unit

design of the product1/2 F-DI, 6 DI, 1 F-RO, 1 F-DO

monitoring of floating sensorsYes

monitoring of non-floating sensorsYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RK3121-2AC00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryModular Safety System

product designationCentral unit

design of the product1/2 F-DI, 6 DI, 1 F-RO, 1 F-DO

suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1Yes

monitoring of floating sensorsYes

monitoring of non-floating sensorsYes

position switch monitoringYes

EMERGENCY-OFF circuit monitoringYes

valve monitoringYes

opto-electronic protection device monitoringYes

proximity switch monitoringYes

safety-related circuitsYes

General technical data

EMERGENCY STOP functionYes

protective door monitoringYes

protective door monitoring with tumblerYes

muting, 2 sensor-parallelYes

muting, 4 sensor-parallelYes

muting, 4 sensor-sequentialYes

monitoring parameterizableYes

evaluation: electro-sensitive protective equipmentYes

evaluation: selector switchYes

pressure-sensitive mat monitoringYes

evaluation: two-hand operator panelYes

evaluation: enabling switchYes

monitored start-upYes

two-hand control according to EN 574Yes

number of function blocks typical300

insulation voltage rated value300 V

degree of pollution3

surge voltage resistance rated value2 500 V

consumed current for rated value of supply voltage1.685 A

of the enclosureIP20

of the terminalIP20

shock resistance15 g / 11 ms

vibration resistance according to IEC 60068-2-65 ... 500 Hz: 0.75 mm

operating frequency maximum1 000 1/h

mechanical service life (operating cycles) typical10 000 000

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.309 kg

product function suitable for AS-i Power24VYes

product function diagnostics with CTT2 deviceYes

number of safe signals for remote shutdown or cross traffic by means of AS-interface8

at 30 V maximum45 mA

at 24 V with AS-i Power24V maximum45 mA

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

air pressure according to SN 3120570 ... 106 kPa

Electromagnetic compatibility

installation environment regarding EMCThis product is suitable for Class A environments only. In household environments, this device can cause unwanted radio interference. The user is required to implement appropriate measures in this case.

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

diagnostics test interval by internal test function maximum1 000 s

stop category according to IEC 60204-10 / 1

category according to EN 954-14

IEC 62061

SIL Claim Limit (subsystem) according to EN 62061Kat. 4 / SIL3 / Ple

according to IEC 62061SIL 3

according to IEC 620617E-9 1/h

ISO 13849

performance level (PL) according to EN ISO 13849-1e

category according to EN ISO 13849-14

according to ISO 13849-1PL e

IEC 61508

according to IEC 615083

according to IEC 615081

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Short-circuit protection

design of the fuse link for short-circuit protection of the NO contacts of the relay outputs requiredNH Type 3NA, DIAZED Type 5SB, NEOZED Type 5SE

Inputs/ Outputs

parameterizable inputsYes

parameterizable outputsYes

safety-related2

non-safety-related6

input delay time0 ... 150 ms

ingress aquisition time at digital input maximum60 ms

input delay time at digital input maximum150 ms

safety-related 2-channel2

for testing contact-based sensors2

1-channel0

2-channel1

safety-related 2-channel1

non-safety-related0

design of the contactless switching element safety-relatedP potential

pulse duration of the contactless semiconductor contact block for switching off safety-related maximum1 ms

recovery time of the safe outputs420 ms

dark period of the common drivers1 ms

switching capacity current of semiconductor outputs at DC-13 at 24 V1.5 A

Communication/ Protocol

PROFIBUS DP protocolYes; when using the DP interface module; 64 bit cyclical data

protocol is supported AS-Interface protocolYes

Control circuit/ Control

type of voltageDC

control supply voltage rated value24 V

initial value0.85

full-scale value1.15

at 24 V70 A

at 24 V1 ms

operating power rated value4.5 W

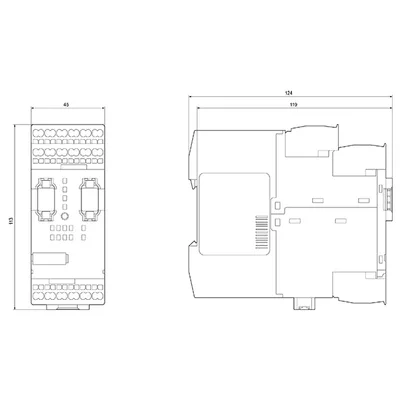

Installation/ mounting/ dimensions

mounting positionvertical

fastening methodSnap-mounted to DIN rail or screw-mounted with additional push-in lug

height111 mm

width45 mm

depth124 mm

Connections/ Terminals

product function removable terminalYes

type of electrical connectionspring-loaded terminals

solid2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2x (0.25 ... 1 mm²)

for AWG cables solid2x (24 ... 16)

for AWG cables stranded2x (24 ... 16)

connectable conductor cross-section finely stranded with core end processing0.25 ... 1.5 mm²

solid24 ... 16

stranded24 ... 16

DC resistance of the cable maximum100 Ω
