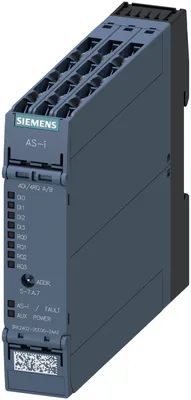

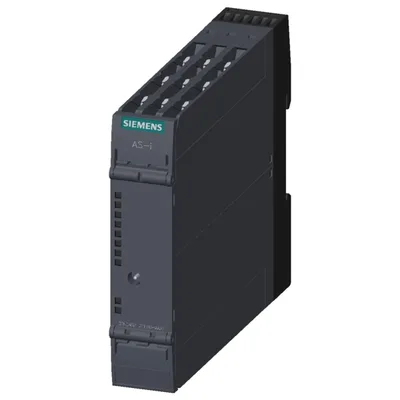

Siemens 3RK2402-2CE00-2AA2

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output relay 1 A 24 V DC Screw terminals Width 22.5 mm

SiemensMFR # 3RK2402-2CE00-2AA2SKU # CEY-8EF3B039487F

design of the productAS-i SC22.5, 4DI/4RQ A/B

product type designation3RK2

design of the device typeA/B slave (Spec. 3.0)

AS-Interface device profileS-7.A.7

ID1 code7; Setting cannot be changed

at 30 V maximum300 mA

Have questions?Chat on WhatsApp

About This Product

AS-i SlimLine Compact module SC22.5 digital, A/B slave 4 DI/4 RQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output relay 1 A 24 V DC Screw terminals Width 22.5 mm

Siemens 3RK2402-2CE00-2AA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationSlimline Compact I/O module for use in the control cabinet

design of the productAS-i SC22.5, 4DI/4RQ A/B

product type designation3RK2

design of the device typeA/B slave (Spec. 3.0)

AS-Interface device profileS-7.A.7

ID1 code7; Setting cannot be changed

operating voltage according to AS-Interface specification18 ... 31.6 V

product function suitable for AS-i Power24VYes

at 30 V maximum300 mA

at 24 V with AS-i Power24V maximum300 mA

type of address setting of the AS-i devicesvia front addressing socket

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.247 kg

according to EN 61346-2K

according to DIN 40719 extended according to IEC 204-2 according to IEC 750A

shock resistance15 g / 11 ms (modules) or 10 g / 11 ms (modules with device connector)

other informationSensor supply via Uaux: Auxiliary feed 20 to 30 V DC required to supply the sensor. Sensor supply via AS-i: No additional power required.

Digital Inputs

number of digital inputs4

number of digital inputs safety-related0

type of input characteristicPNP Type 2

type of connection technology2- and 3-wire technology

Sensor supply

type of voltage supply for sensor supplyAS-Interface / U_AUX switchable

ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA

note200 mA with supply via AS interface / 500 mA with supply via Uaux

property of the sensor supply short-circuit and overload resistantYes

from AS-interface8.5 V

from external auxiliary voltage1 V

Digital Outputs

number of digital outputs4

type of switching outputRelays, NO contacts

property of the output short-circuit proofNo

ampacity of the output relay at AC-15 at 230 V at 50/60 Hz3 A

at 24 V1 A

at 110 V0.2 A

at 230 V0.1 A

Analog inputs

number of analog inputs0

Analog outputs

number of analog outputs0

Device connector

for AS-Interface2 A

for external auxiliary voltage4 A

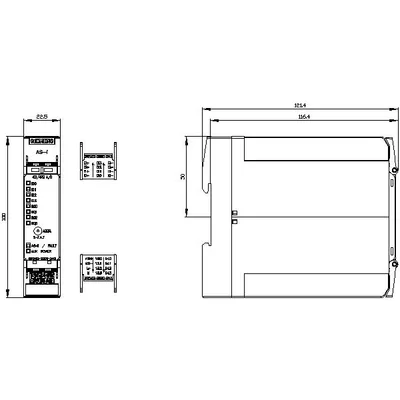

Installation/ mounting/ dimensions

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

Connections/ Terminals

type of electrical connection of the inputs and outputsScrew terminals

solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)

finely stranded without core end processingNot permitted

for AWG cables solid1x (24 ... 14), 2x (24 ... 16)

for AWG cables strandedNot permitted
