How can I get a price quote for Siemens 3RK2100-1EQ20-0AA3?

You can request a fast quote for Siemens 3RK2100-1EQ20-0AA3 from Yılsa Engineering. Reference part number CEY-8EF3B0301D35. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK2100-1EQ20-0AA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK2100-1EQ20-0AA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK2100-1EQ20-0AA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

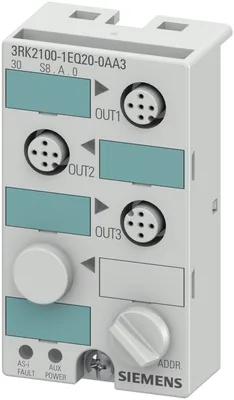

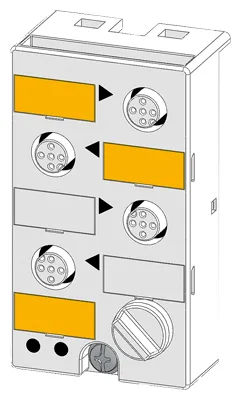

Siemens 3RK2100-1EQ20-0AA3

AS-i compact module K45 digital A/B slave, 3DQ, IP67 3 x output, 1 A 24 V DC 3 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately

SiemensMFR # 3RK2100-1EQ20-0AA3SKU # CEY-8EF3B0301D35

design of the device typeA/B slave

number of digital inputs0

type of connection technology2- and 3-wire technology

number of digital outputs3

type of voltage of output voltagesDC

type of switching outputPNP transistor

Have questions?Chat on WhatsApp

About This Product

AS-i compact module K45 digital A/B slave, 3DQ, IP67 3 x output, 1 A 24 V DC 3 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 is to be ordered separately

Siemens 3RK2100-1EQ20-0AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

design of the productdigital I/O modules for operation in the field, IP67 - K45

design of the device typeA/B slave

type of electrical connection of the inputs and outputsM12 screw-type terminals

Inputs

number of digital inputs0

type of connection technology2- and 3-wire technology

Outputs

number of digital outputs3

type of voltage of output voltagesDC

ampacity of the semiconductor output at DC-13 at 24 V1 A

type of switching outputPNP transistor

property of the output short-circuit proofYes

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +85 °C

protection class IPIP67

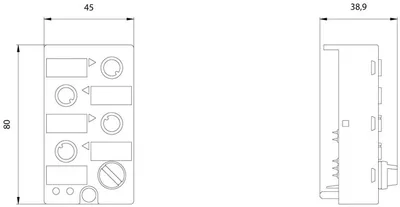

Mechanical data

width45 mm

height80 mm

depth30 mm

fastening methodstandard rail mounting/wall mounting using mounting plate for K45 compact module

shock resistance15 g / 11 ms

Accessories 3

Genuine accessories that can be used with the Siemens 3RK2100-1EQ20-0AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1KA00	Aksesuar
3RK1901-2DA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K45
3RK1901-2EA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K45
