How can I get a price quote for Siemens 3RK2100-1CE00-2AA2?

You can request a fast quote for Siemens 3RK2100-1CE00-2AA2 from Yılsa Engineering. Reference part number CEY-8EF3B03948A8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK2100-1CE00-2AA2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK2100-1CE00-2AA2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK2100-1CE00-2AA2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

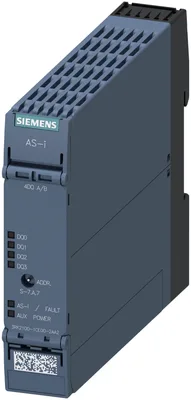

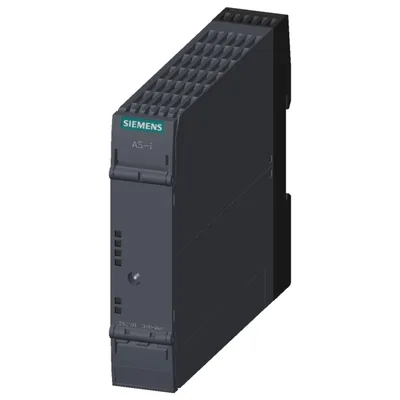

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RK2100-1CE00-2AA2

UL/CSA CERTIFICATION IN PREPARATION SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Width 22.5 mm

SiemensMFR # 3RK2100-1CE00-2AA2SKU # CEY-8EF3B03948A8

design of the productAS-i SC22.5, 4DQ A/B

product type designation3RK2

design of the device typeA/B slave (Spec. 3.0)

AS-Interface device profileS-7.A.7

ID1 code7; Setting cannot be changed

at 30 V maximum45 mA

Have questions?Chat on WhatsApp

About This Product

UL/CSA CERTIFICATION IN PREPARATION SC22.5 digital, A/B slave 4 DQ, IP20 4 x output, 2 A, 24 V DC maximal 4 A for all outputs Screw terminals Width 22.5 mm

Siemens 3RK2100-1CE00-2AA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationSlimline Compact I/O module for use in the control cabinet

design of the productAS-i SC22.5, 4DQ A/B

product type designation3RK2

design of the device typeA/B slave (Spec. 3.0)

AS-Interface device profileS-7.A.7

ID1 code7; Setting cannot be changed

operating voltage according to AS-Interface specification18 ... 31.6 V

product function suitable for AS-i Power24VYes

at 30 V maximum45 mA

at 24 V with AS-i Power24V maximum45 mA

type of address setting of the AS-i devicesvia front addressing socket

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.152 kg

according to EN 61346-2K

according to DIN 40719 extended according to IEC 204-2 according to IEC 750A

shock resistance15 g / 11 ms (modules) or 10 g / 11 ms (modules with device connector)

other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.

Digital Inputs

number of digital inputs0

number of digital inputs safety-related0

Digital Outputs

number of digital outputs4

type of switching outputPNP transistor

product function for power supply reverse polarity protectionYes

property of the output short-circuit proofYes

product functionBuilt-in induction protection

total current of digital outputs per module maximum4 A

type of voltage supply at the outputsvia AUX POWER

ampacity of the semiconductor output at DC-13 at 24 V2 A

Analog inputs

number of analog inputs0

Analog outputs

number of analog outputs0

Device connector

for AS-Interface2 A

for external auxiliary voltage4 A

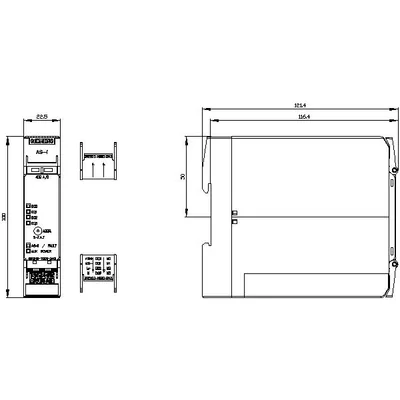

Installation/ mounting/ dimensions

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

Connections/ Terminals

type of electrical connection of the inputs and outputsScrew terminals

solid1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²)

finely stranded without core end processingNot permitted

for AWG cables solid1x (24 ... 14), 2x (24 ... 16)

for AWG cables strandedNot permitted

Accessories 18

Genuine accessories that can be used with the Siemens 3RK2100-1CE00-2AA2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1YA00	Aksesuar · Device connector
3ZY1141-2BA00	Aksesuar · Removable terminals
3ZY1141-1BA00	Aksesuar · Removable terminals
3ZY1121-2BA00	Aksesuar · Removable terminals
3ZY1121-1BA00	Aksesuar · Removable terminals
3ZY1131-2BA00	Aksesuar · Removable terminals
3ZY1122-2BA00	Aksesuar · Removable terminals
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1131-1BA00	Aksesuar · Removable terminals
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3ZY1311-0AA00	Aksesuar · Further accessories
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RK1901-1YA11	Aksesuar · Device termination connector
3RK1901-1YA10	Aksesuar · Device connector
3RK1901-1YA01	Aksesuar · Device termination connector
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1450-1AB00	Bileşen · Further accessories
