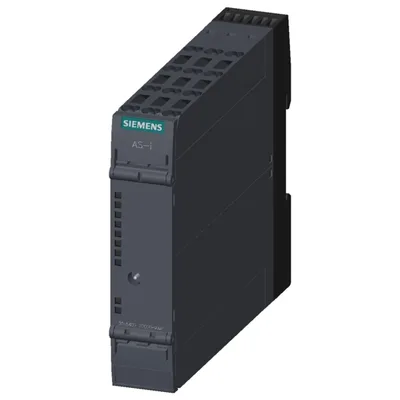

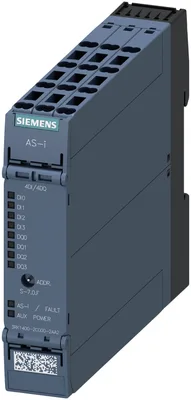

Siemens 3RK1400-2CG00-2AA2

UL/CSA CERTIFICATION IN PREPARATION SC22.5 digital 4 DI/4 DQ, IP20 4 x inputs for 3-wire sensor Sensor supply can be switched over 4 x output, 2 A, 24 V DC maximal 4 A for all outputs spring-type terminals Overall width 22.5 mm

SiemensMFR # 3RK1400-2CG00-2AA2SKU # CEY-8EF3B0393FD3

design of the productAS-i SC22.5, 4DI/4DQ, Standard

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.0.F

ID1 codeF; Factory setting, changeable

at 30 V maximum270 mA

Have questions?Chat on WhatsApp

About This Product

Siemens 3RK1400-2CG00-2AA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationSlimline Compact I/O module for use in the control cabinet

design of the productAS-i SC22.5, 4DI/4DQ, Standard

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.0.F

ID1 codeF; Factory setting, changeable

operating voltage according to AS-Interface specification18 ... 31.6 V

product function suitable for AS-i Power24VYes

at 30 V maximum270 mA

at 24 V with AS-i Power24V maximum270 mA

type of address setting of the AS-i devicesvia front addressing socket

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.182 kg

according to EN 61346-2K

according to DIN 40719 extended according to IEC 204-2 according to IEC 750A

shock resistance15 g / 11 ms (modules) or 10 g / 11 ms (modules with device connector)

other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.

Digital Inputs

number of digital inputs4

number of digital inputs safety-related0

type of input characteristicPNP Type 2

type of connection technology2- and 3-wire technology

Sensor supply

type of voltage supply for sensor supplyAS-Interface / U_AUX switchable

ampacity of the sensor supply for all inputs at ambient temperature 40 °C500 mA

note200 mA with supply via AS interface / 500 mA with supply via Uaux

property of the sensor supply short-circuit and overload resistantYes

from AS-interface8.5 V

from external auxiliary voltage1 V

Digital Outputs

number of digital outputs4

type of switching outputPNP transistor

product function for power supply reverse polarity protectionYes

property of the output short-circuit proofYes

product functionBuilt-in induction protection

total current of digital outputs per module maximum4 A

type of voltage supply at the outputsvia AUX POWER

ampacity of the semiconductor output at DC-13 at 24 V2 A

Analog inputs

number of analog inputs0

Analog outputs

number of analog outputs0

Device connector

for AS-Interface2 A

for external auxiliary voltage4 A

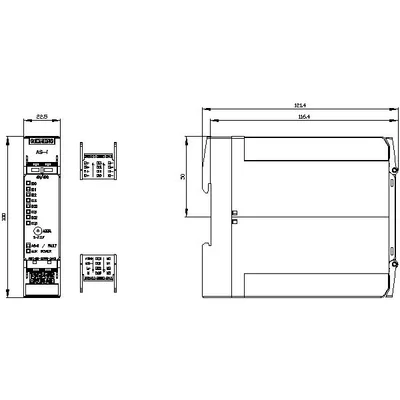

Installation/ mounting/ dimensions

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

Connections/ Terminals

type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0,25 ... 1,0 mm²), 2x (0,25 ... 1,0 mm²)

finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 16)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 16)

Accessories 4

Genuine accessories that can be used with the Siemens 3RK1400-2CG00-2AA2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1AA00	Aksesuar
3RK1901-1AA01	Aksesuar
3RK1901-2DA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K45
3RK1901-2EA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K45
