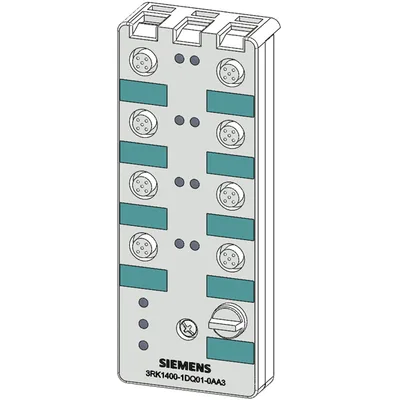

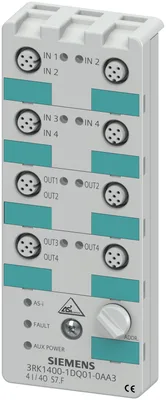

Siemens 3RK1400-1DQ01-0AA3

AS-i compact module K60 digital 4 DI/4 DQ, IP67 4 x input, maximum 200 mA 4 x output, 1 A, 24 V DC 8 x M12 socket Y-II assignment Mounting plate 3RK1901-0CA00 must be ordered separately

SiemensMFR # 3RK1400-1DQ01-0AA3SKU # CEY-937FC780C300

design of the device typestandard slave

type of voltage supply for sensor supplyusing AS-Interface

input voltage20 ... 30 V

at ambient temperature 40 °C200 mA

number of digital inputs4

type of connection technology2- and 3-wire technology

Have questions?Chat on WhatsApp

About This Product

AS-i compact module K60 digital 4 DI/4 DQ, IP67 4 x input, maximum 200 mA 4 x output, 1 A, 24 V DC 8 x M12 socket Y-II assignment Mounting plate 3RK1901-0CA00 must be ordered separately

Siemens 3RK1400-1DQ01-0AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

design of the productdigital I/O modules for operation in the field, IP67 - K60

design of the device typestandard slave

type of electrical connection of the inputs and outputsM12 screw-type terminals

Sensor supply

type of voltage supply for sensor supplyusing AS-Interface

input voltage20 ... 30 V

property of the sensor supply short-circuit and overload resistantYes

at ambient temperature 40 °C200 mA

Inputs

number of digital inputs4

type of connection technology2- and 3-wire technology

type of voltage of the input voltagesDC

for signal <1> minimum6 mA

with signal <0> maximum1.5 mA

design of the pin assignment of the inputsY-II assignement

Outputs

number of digital outputs4

type of voltage of output voltagesDC

ampacity of the semiconductor output at DC-13 at 24 V1 A

type of switching outputPNP transistor

design of the pin assignment of the outputsY-II assignement

property of the output short-circuit proofYes

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +85 °C

protection class IPIP67

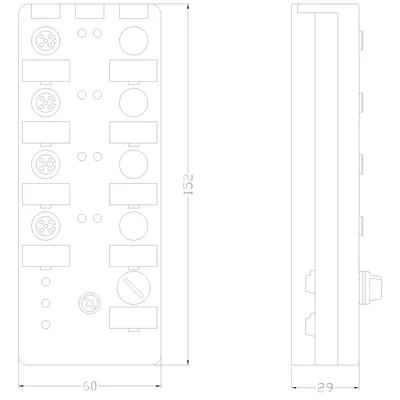

Mechanical data

width60 mm

height152 mm

depth29 mm

fastening methodstandard rail mounting/wall mounting using mounting plate for K60 compact module

shock resistance15 g / 11 ms

Accessories 4

Genuine accessories that can be used with the Siemens 3RK1400-1DQ01-0AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1KA00	Aksesuar
3RK1901-0CA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K60
3RK1901-0CB01	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K60
3RK1902-0AR00	Seçmeli zorunlu ürün
