How can I get a price quote for Siemens 3RK1395-6KS71-1AD3?

You can request a fast quote for Siemens 3RK1395-6KS71-1AD3 from Yılsa Engineering. Reference part number CEY-8EF3B0394010. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1395-6KS71-1AD3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1395-6KS71-1AD3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1395-6KS71-1AD3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

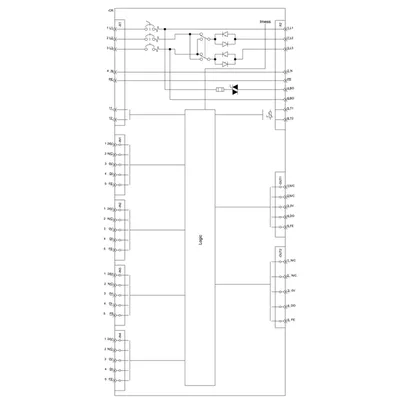

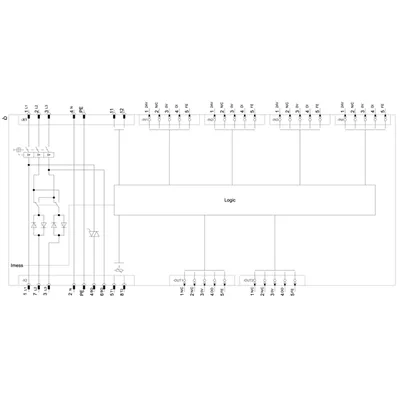

Siemens 3RK1395-6KS71-1AD3

SIRIUS motor starter M200D technology module reversing starter electronic switching AC-3, 0.75 kW/400 V 0.15 A...2.00 A electronic overload protection thermistor: thermoclick / PTC with brake contact 400 V AC 4 DI / 2 DO Han Q4/2 - Han Q8/0 via communications module 3RK1305* can be used on PROFIBUS or PROFINET

SiemensMFR # 3RK1395-6KS71-1AD3SKU # CEY-8EF3B0394010

product brand nameSIRIUS

product designationMotor starters

design of the productreversing starter

product type designationM200D

on-site operationNo

insulation voltage rated value500 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3RK1395-6KS71-1AD3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMotor starters

design of the productreversing starter

product type designationM200D

on-site operationNo

control circuit interface to parallel wiringNo

insulation voltage rated value500 V

degree of pollution3

surge voltage resistance rated value6 000 V

between main and auxiliary circuit400 V

between control and auxiliary circuit24 V

shock resistance12 g / 11 ms

vibration resistance7 mm / 2 g

type of coordination1

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight3.188 kg

direct startNo

reverse startingYes

product component motor brake outputYes

brake control with 230 V ACYes

brake control with 400 V ACYes

brake control with 24 V DCNo

brake control with 180 V DCNo

brake control with 500 V DCNo

product extension braking module for brake controlNo

product function short circuit protectionYes

design of short-circuit protectioncircuit-breakers

at 400 V rated value50 000 A

at 500 V rated value20 000 A

EMC emitted interference according to IEC 60947-1CISPR11, ambience A (group 2)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3, ambience A (industrial sector)

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

Safety related data

with low demand rate according to SN 3192050 %

with high demand rate according to SN 3192075 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Main circuit

number of poles for main current circuit3

design of the switching contactsolid-state / thyristor / 2 phases

adjustable current response value current of the current-dependent overload release0.15 ... 2 A

type of the motor protectionfull motor protection

operating voltage rated value200 ... 440 V

at AC at 400 V rated value2 A

at AC-3 at 400 V rated value2 A

— at 400 V rated value0.75 kW

— at 500 V rated value750 W

— at 400 V rated value1 kW

— at 500 V rated value0.75 kW

digital inputs parameterizableYes

digital outputs parameterizableYes

number of digital inputs4

for digital output signals2

for digital input signals4

number of digital outputs2

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC24 V

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC20.4 ... 28.8 V

in standby mode of operation100 mA

during operation600 mA

in switching state OFF with bypass circuit2.7936 W

in switching state ON with bypass circuit7.92 W

Response times

ON-delay time25 ms

OFF-delay time35 ms

mounting positionvertical, horizontal, flat

mounting position recommendedhorizontal

fastening methodscrew fixing

height215 mm

width294 mm

depth148 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation10 ... 95 %

PROFIBUS DP protocolNo

PROFINET protocolNo

AS-Interface protocolNo

PROFINET protocolNo

PROFIBUS DP protocolNo

product function bus communicationYes

protocol is supported AS-Interface protocolNo

product function control circuit interface with IO linkNo

for main current circuitplug according to ISO 23570, HAN Q4/2

for auxiliary and control circuitconnector

1 for digital input signalsM12 socket

1 for digital output signalsM12 socket

2 for digital input signalsM12 socket

3 for digital input signalsM12 socket

4 for digital input signalsM12 socket

full-load current (FLA) for 3-phase AC motor at 480 V rated value1.6 A

— at 460/480 V rated value0.7 hp

operating voltage at AC at 60 Hz according to CSA and UL rated value480 V

Accessories 32

Genuine accessories that can be used with the Siemens 3RK1395-6KS71-1AD3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1902-0AB00	Aksesuar · Miscellaneous accessories · tools
3RK1911-5BA20	Aksesuar
3RK1911-5BA10	Aksesuar · Miscellaneous accessories · seals
3RK1911-5BA00	Aksesuar · Miscellaneous accessories · seals
3RK1911-3BA00	Aksesuar
3RK1911-2BS60	Aksesuar
3RK1911-2BS40	Aksesuar
3RK1911-2BS20	Aksesuar
3RK1911-2BM22	Aksesuar
3RK1911-2BM21	Aksesuar
3RK1911-2BG02	Aksesuar · Miscellaneous accessories · connectors
3RK1911-2BF02	Aksesuar · Miscellaneous accessories · connectors
3RK1911-2BF01	Aksesuar · Miscellaneous accessories · connectors
3RK1911-2BE50	Aksesuar
3RK1911-2BE30	Aksesuar
3RK1911-2BE10	Aksesuar
3RK1911-0EH31	Aksesuar · Accessories
3RK1911-0EG31	Aksesuar · Accessories
3RK1911-0EF31	Aksesuar · Accessories
3RK1911-0EE31	Aksesuar · Accessories
3RK1911-0ED31	Aksesuar · Accessories
3RK1911-0EB31	Aksesuar · Accessories
3RK1911-0DC33	Aksesuar · Accessories
3RK1911-0DC13	Aksesuar · Accessories
3RK1902-0CW00	Aksesuar · Miscellaneous accessories · tools
3RK1902-0CK00	Aksesuar
3RK1902-0CJ00	Aksesuar
3RK1902-0CE00	Aksesuar
3RK1902-0CC00	Aksesuar
3RK1902-0AJ00	Aksesuar · Miscellaneous accessories · tools
3RK1911-5BA30	Aksesuar · Miscellaneous accessories · seals
3RK1911-5BA50	Aksesuar · Miscellaneous accessories · seals
