How can I get a price quote for Siemens 3RK1304-5KS40-5AA3?

You can request a fast quote for Siemens 3RK1304-5KS40-5AA3 from Yılsa Engineering. Reference part number CEY-8EF3B0301F54. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1304-5KS40-5AA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1304-5KS40-5AA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1304-5KS40-5AA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

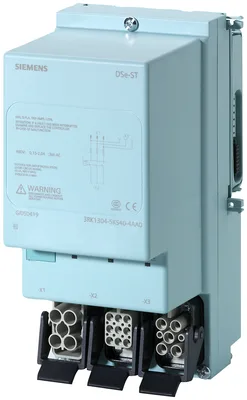

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

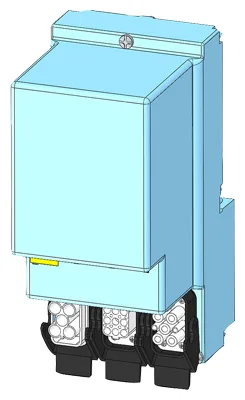

Siemens 3RK1304-5KS40-5AA3

ET 200pro RSE ST Reversing starter standard Mechanical switching Electronic overload protection AC-3, 0.9 kW / 400 V 0.15 A...2.00 A Brake contact 400 V AC Han Q4/2 - Han Q8/0

SiemensMFR # 3RK1304-5KS40-5AA3SKU # CEY-8EF3B0301F54

product brand nameSIMATIC

product designationMotor starters

design of the productreversing starter

product type designationET 200pro

product function on-site operationYes

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

ET 200pro RSE ST Reversing starter standard Mechanical switching Electronic overload protection AC-3, 0.9 kW / 400 V 0.15 A...2.00 A Brake contact 400 V AC Han Q4/2 - Han Q8/0

Siemens 3RK1304-5KS40-5AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product designationMotor starters

design of the productreversing starter

product type designationET 200pro

General technical data

product function on-site operationYes

insulation voltage rated value400 V

degree of pollution3

surge voltage resistance rated value6 kV

maximum permissible voltage for protective separation between main and auxiliary circuit400 V

degree of protection NEMA ratingType 2, 20

shock resistance15 g / 11 ms

vibration resistance2 g

operating frequency maximum750 1/h

mechanical service life (operating cycles) of the main contacts typical30 000 000

type of coordination1

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight1.815 kg

direct startNo

reverse startingYes

product component motor brake outputYes

brake control with 230 V ACNo

brake control with 400 V ACYes

brake control with 24 V DCNo

brake control with 180 V DCNo

brake control with 500 V DCNo

type of voltage of the supply voltage for brake control requiredAC

supply voltage for brake control required400 V

product function short circuit protectionYes

design of short-circuit protectionfuse

at 400 V rated value100 000 A

Safety related data

with low demand rate according to SN 3192050 %

with high demand rate according to SN 3192075 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

MTTFd205 a

IEC 61508

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Main circuit

number of poles for main current circuit3

design of the switching contactelectromechanical

adjustable current response value current of the current-dependent overload release0.15 ... 2 A

type of the motor protectionsolid-state

type of voltageAC

operating voltage rated value200 ... 400 V

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative positive tolerance of the operating frequency10 %

relative negative tolerance of the operating frequency15 %

operating range relative to the operating voltage at AC at 50 Hz200 ... 440 V

at AC at 400 V rated value2 A

at AC-3 at 400 V rated value2 A

at AC-3e at 400 V rated value2 A

at AC-3 at 400 V rated value900 W

operating power for 3-phase motors at 400 V at 50 Hz70 ... 900 W

Inputs/ Outputs

digital inputs parameterizableNo

digital outputs parameterizableNo

number of digital inputs0

for digital output signals0

for digital input signals0

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC24 V

minimum permissible20.4 V

maximum permissible28.8 V

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC24 V

in standby mode of operation60 mA

when switching on250 mA

during operation250 mA

— with bypass circuit1.6416 W

— without bypass circuit1.6416 W

— with bypass circuit3.888 W

— without bypass circuit3.888 W

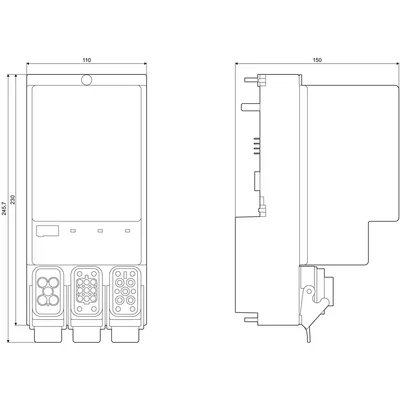

Installation/ mounting/ dimensions

mounting positionvertical, horizontal

fastening methodscrew fixing

height230 mm

width110 mm

depth150 mm

Ambient conditions

installation altitude at height above sea level maximum3 500 m

during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation5 ... 95 %

Communication/ Protocol

PROFIBUS DP protocolYes

PROFINET protocolYes

PROFINET IO protocolYes

PROFIsafe protocolNo

design of the interface PROFINET protocolYes

product function bus communicationYes

protocol is supported AS-Interface protocolNo

supports PROFIenergy measured valuesYes

supports PROFIenergy shutdownYes

of the inputs2 byte

of the outputs2 byte

type of electrical connection of the communication interfacevia backplane bus

Connections/ Terminals

for main current circuittab terminals

1 for digital input signalsM12 socket

2 for digital input signalsM12 socket

3 for digital input signalsM12 socket

4 for digital input signalsM12 socket

at the manufacturer-specific device interfaceoptical interface

for main energy infeedsocket according to ISO23570

for load-side outgoing feedersocket according to ISO23570

for main energy transmissionsocket according to ISO23570

for supply voltage line-sidevia backplane bus

for supply voltage transmissionvia backplane bus

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor at 480 V rated value2 A

— at 460/480 V rated value0.75 hp

— at 575/600 V rated value1 hp

operating voltage at AC at 60 Hz according to CSA and UL rated value600 V

Accessories 24

Genuine accessories that can be used with the Siemens 3RK1304-5KS40-5AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1911-2BE50	Aksesuar
3RK1911-2BE10	Aksesuar
3RK1911-2BE30	Aksesuar
3RK1922-2BQ00	Aksesuar
3RK1911-2BF50	Aksesuar
3RK1911-2BF10	Aksesuar
3RK1902-0CJ00	Aksesuar
3RK1902-0CK00	Aksesuar
3RK1911-0DB13	Aksesuar · Accessories
3RK1911-0DB33	Aksesuar · Accessories
3RK1911-0DC13	Aksesuar · Accessories
3RK1911-0DC33	Aksesuar · Accessories
3RK1902-0CE00	Aksesuar
3RK1902-0CC00	Aksesuar
3RK1911-0EB31	Aksesuar · Accessories
3RK1911-0ED31	Aksesuar · Accessories
3RK1922-2BP00	Aksesuar
6SL3555-0PA00-2AA0	Aksesuar
3RK1911-2BM21	Aksesuar
3RK1911-2BM22	Aksesuar
3RK1911-2BL21	Aksesuar
3RK1911-2BL22	Aksesuar
3RT2900-1SB20	Yedek parça · Miscellaneous accessories · labeling plates
6ES7194-4HA00-0AA0	Yedek parça · label
