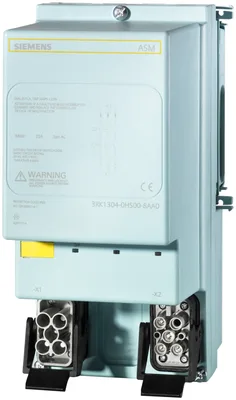

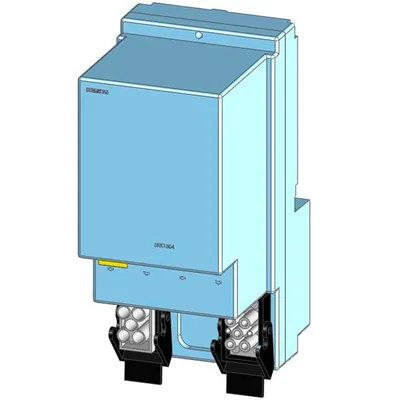

Siemens 3RK1304-0HS00-8AA0

ET 200pro ASM 400 V disconnecting module 400 V to 25 A for safe disconnection up to category 3/4 Han Q4/2

SiemensMFR # 3RK1304-0HS00-8AA0SKU # CEY-8EF3B03942A2

product brand nameSIMATIC

product designationMotor starters

design of the productsafety disconnecting module

product type designationET 200pro

product function on-site operationNo

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

ET 200pro ASM 400 V disconnecting module 400 V to 25 A for safe disconnection up to category 3/4 Han Q4/2

Siemens 3RK1304-0HS00-8AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product designationMotor starters

design of the productsafety disconnecting module

product type designationET 200pro

General technical data

product function on-site operationNo

insulation voltage rated value400 V

degree of pollution3

surge voltage resistance rated value6 kV

maximum permissible voltage for protective separation between main and auxiliary circuit400 V

degree of protection NEMA ratingType 2, 12

shock resistance15 g / 11 ms

vibration resistance2 g

operating frequency maximum750 1/h

mechanical service life (operating cycles) of the main contacts typical10 000 000

type of coordination1

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight2.346 kg

product component motor brake outputNo

brake control with 230 V ACNo

brake control with 400 V ACNo

brake control with 24 V DCNo

brake control with 180 V DCNo

brake control with 500 V DCNo

product function short circuit protectionNo

Safety related data

safe stateLoad circuit open

stop category according to IEC 60204-10

with high demand rate according to SN 3192040 %

failure rate [FIT] at rate of recognizable hazardous failures (λdd)550 FIT

failure rate [FIT] at rate of non-recognizable hazardous failures (λdu)6 FIT

average diagnostic coverage level (DCavg)99 %

MTTFd205 a

IEC 62061

PFHD with high demand rate according to IEC 620616E-9 1/h

IEC 61508

according to IEC 61508SIL 3

safety device type according to IEC 61508-2Type A

PFDavg with low demand rate according to IEC 615085E-6

Safe failure fraction (SFF)99 %

hardware fault tolerance according to IEC 615081

T1 value for proof test interval or service life according to IEC 6150810 a

Electrical Safety

touch protection against electrical shockfinger-safe

Main circuit

number of poles for main current circuit3

design of the switching contactelectromechanical

type of voltageAC

operating voltage rated value200 ... 400 V

operating frequency 1 rated value50 Hz

operating frequency 2 rated value60 Hz

relative positive tolerance of the operating frequency10 %

relative negative tolerance of the operating frequency15 %

operating range relative to the operating voltage at AC at 50 Hz200 ... 440 V

at AC at 400 V rated value25 A

at AC-3 at 400 V rated value25 A

at AC-3e at 400 V rated value25 A

at AC-3 at 400 V rated value11 000 W

at AC-3e at 400 V rated value11 000 W

operating power for 3-phase motors at 400 V at 50 Hz0 ... 11 000 W

Inputs/ Outputs

digital inputs parameterizableNo

digital outputs parameterizableNo

number of digital inputs0

for digital output signals0

for digital input signals0

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC24 V

minimum permissible20.4 V

maximum permissible28.8 V

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC24 V

in standby mode of operation5 mA

when switching on300 mA

during operation300 mA

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

height230 mm

width110 mm

depth157.5 mm

Ambient conditions

installation altitude at height above sea level maximum3 500 m

during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation5 ... 95 %

Communication/ Protocol

PROFIBUS DP protocolYes

PROFINET protocolYes

PROFINET IO protocolYes

PROFIsafe protocolNo

design of the interface PROFINET protocolYes

product function bus communicationYes

protocol is supported AS-Interface protocolNo

supports PROFIenergy measured valuesNo

supports PROFIenergy shutdownNo

of the inputs1 byte

of the outputs0 byte

type of electrical connection of the communication interfacevia backplane bus

Connections/ Terminals

for main current circuittab terminals

1 for digital input signalsM12 socket

2 for digital input signalsM12 socket

3 for digital input signalsM12 socket

4 for digital input signalsM12 socket

at the manufacturer-specific device interfaceoptical interface

for main energy infeedsocket according to ISO23570

for load-side outgoing feedersocket according to ISO23570

for main energy transmissionsocket according to ISO23570

for supply voltage line-sidevia backplane bus

for supply voltage transmissionvia backplane bus

UL/CSA ratings

full-load current (FLA) for 3-phase AC motor at 480 V rated value20 A

— at 200/208 V rated value7.5 hp

— at 220/230 V rated value7.5 hp

— at 460/480 V rated value15 hp

— at 575/600 V rated value20 hp

operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
