How can I get a price quote for Siemens 3RK1304-0HS00-6AA0?

You can request a fast quote for Siemens 3RK1304-0HS00-6AA0 from Yılsa Engineering. Reference part number CEY-8EF3B02FBA11. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1304-0HS00-6AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1304-0HS00-6AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1304-0HS00-6AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

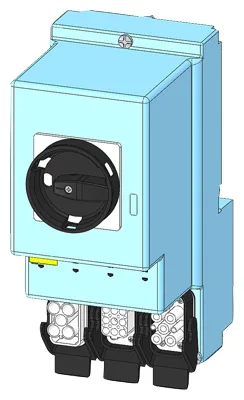

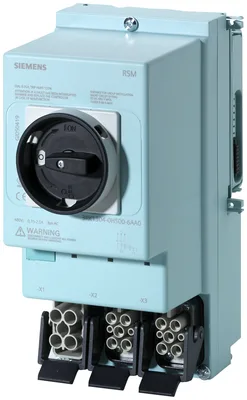

Siemens 3RK1304-0HS00-6AA0

ET 200 RSM Maintenance switch module Up to 25 A Up to 25 A Disconnector function for Main circuit Han Q4/2

SiemensMFR # 3RK1304-0HS00-6AA0SKU # CEY-8EF3B02FBA11

product brand nameSIMATIC

product designationMotor starters

design of the productmaintenance switch

product type designationET 200pro

product function on-site operationYes

insulation voltage rated value400 V

Have questions?Chat on WhatsApp

About This Product

ET 200 RSM Maintenance switch module Up to 25 A Up to 25 A Disconnector function for Main circuit Han Q4/2

Siemens 3RK1304-0HS00-6AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product designationMotor starters

design of the productmaintenance switch

product type designationET 200pro

General technical data

product function on-site operationYes

insulation voltage rated value400 V

degree of pollution3

surge voltage resistance rated value6 kV

maximum permissible voltage for protective separation between main and auxiliary circuit400 V

shock resistance15 g / 11 ms

vibration resistance2 g

type of coordination1

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight1.429 kg

product component motor brake outputNo

brake control with 230 V ACNo

brake control with 400 V ACNo

brake control with 24 V DCNo

brake control with 180 V DCNo

brake control with 500 V DCNo

product function short circuit protectionYes

design of short-circuit protectioncircuit-breakers

at 400 V rated value50 000 A

IEC 61508

according to IEC 61508SIL 3

T1 value for proof test interval or service life according to IEC 6150810 a

Electrical Safety

touch protection against electrical shockfinger-safe

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release25 A

type of voltageAC

operating voltage rated value200 ... 400 V

operating range relative to the operating voltage at AC at 50 Hz200 ... 440 V

at AC at 400 V rated value25 A

at AC-3 at 400 V rated value25 A

Inputs/ Outputs

digital inputs parameterizableNo

digital outputs parameterizableNo

number of digital inputs0

for digital output signals0

for digital input signals0

Supply voltage

type of voltage of the supply voltageDC

supply voltage 1 at DC24 V

minimum permissible20.4 V

maximum permissible28.8 V

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC rated value20.4 ... 28.8 V

control supply voltage 1 at DC24 V

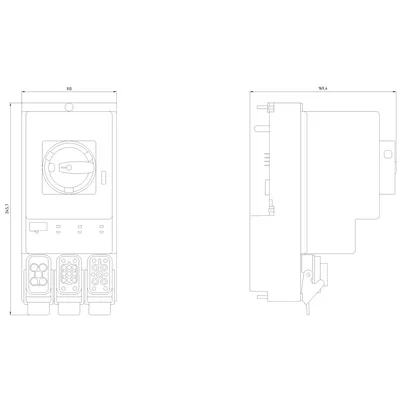

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

height230 mm

width110 mm

depth170 mm

Ambient conditions

installation altitude at height above sea level maximum3 500 m

during operation-25 ... +55 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation5 ... 95 %

Communication/ Protocol

PROFIBUS DP protocolYes

PROFINET protocolYes

design of the interface PROFINET protocolYes

product function bus communicationYes

protocol is supported AS-Interface protocolNo

supports PROFIenergy measured valuesNo

supports PROFIenergy shutdownNo

of the inputs1 byte

of the outputs0 byte

type of electrical connection of the communication interfacevia backplane bus

Connections/ Terminals

for main current circuittab terminals

1 for digital input signalsM12 socket

2 for digital input signalsM12 socket

3 for digital input signalsM12 socket

4 for digital input signalsM12 socket

at the manufacturer-specific device interfaceoptical interface

for main energy infeedsocket according to ISO23570

for load-side outgoing feedersocket according to ISO23570

for main energy transmissionsocket according to ISO23570

for supply voltage line-sidevia backplane bus

for supply voltage transmissionvia backplane bus

UL/CSA ratings

operating voltage at AC at 60 Hz according to CSA and UL rated value600 V
