How can I get a price quote for Siemens 3RK1207-3CG00-2AA2?

You can request a fast quote for Siemens 3RK1207-3CG00-2AA2 from Yılsa Engineering. Reference part number CEY-8EF3B03942EB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1207-3CG00-2AA2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1207-3CG00-2AA2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1207-3CG00-2AA2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

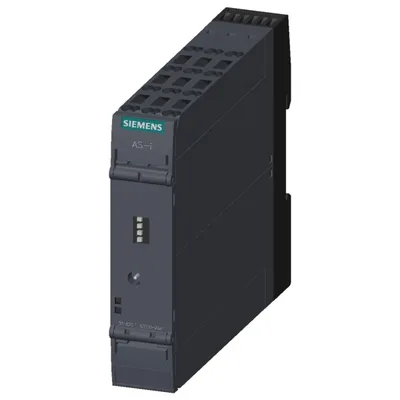

Photo may not represent actual item. Refer to name and product specs for all details.

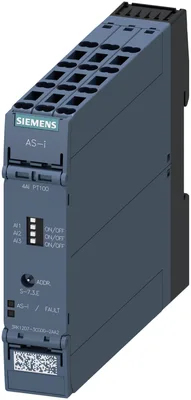

Siemens 3RK1207-3CG00-2AA2

UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog, 4AI-RTD spring-type terminals 4 x analog input Thermal resistance/resistor Overall width 22.5 mm

SiemensMFR # 3RK1207-3CG00-2AA2SKU # CEY-8EF3B03942EB

design of the productAS-i SC22.5, 4AI voltage/current

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.3.E

ID1 codeF; Factory setting, changeable

at 30 V maximum100 mA

Have questions?Chat on WhatsApp

About This Product

UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog, 4AI-RTD spring-type terminals 4 x analog input Thermal resistance/resistor Overall width 22.5 mm

Siemens 3RK1207-3CG00-2AA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationSlimline Compact I/O module for use in the control cabinet

design of the productAS-i SC22.5, 4AI voltage/current

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.3.E

ID1 codeF; Factory setting, changeable

operating voltage according to AS-Interface specification18 ... 31.6 V

product function suitable for AS-i Power24VYes

at 30 V maximum100 mA

at 24 V with AS-i Power24V maximum100 mA

type of address setting of the AS-i devicesvia front addressing socket

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.194 kg

according to EN 61346-2K

according to DIN 40719 extended according to IEC 204-2 according to IEC 750A

shock resistance15 g / 11 ms (modules) or 10 g / 11 ms (modules with device connector)

other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.

Digital Inputs

number of digital inputs0

number of digital inputs safety-related0

Sensor supply

type of voltage supply for sensor supplyusing AS-Interface

Digital Outputs

number of digital outputs0

Analog inputs

number of analog inputs4

signal range at the analog inputPt 100 standard and climate range / Ni 100 / resistance measurement 0 ... 600 Ohm

design of the sensor at the analog input is supported resistor temperature sensorYes

product function input variable parameterizableYes

A/D resolution for analog inputs/outputs16 bit

product function smoothing parameterizableYes

set values of the interference frequency for interference voltage suppression50 / 60 Hz

Analog outputs

number of analog outputs0

Errors/ accuracies

relative symmetrical operational limit relating to input range/output range1 %; full sclae

relative symmetrical basic error limit relating to input range/output range at 25 °C0.7 %

symmetrical temperature error per K relating to input range/output range0.01 %/K

relative symmetrical linearity error relating to input range/output range0.05 %

relative symmetrical repeat accuracy relating to input range/output range in settled state 25 °C0.1 %

Device connector

for AS-Interface2 A

for external auxiliary voltage4 A

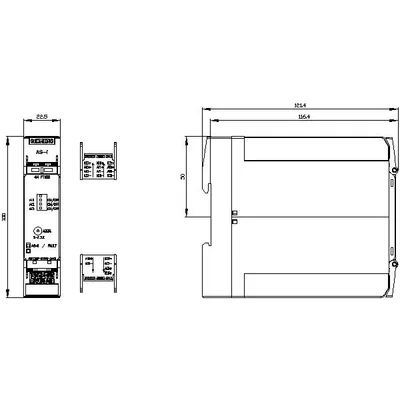

Installation/ mounting/ dimensions

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

Connections/ Terminals

type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0,25 ... 1,0 mm²), 2x (0,25 ... 1,0 mm²)

finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 16)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 16)
