How can I get a price quote for Siemens 3RK1200-0CQ20-0AA3?

You can request a fast quote for Siemens 3RK1200-0CQ20-0AA3 from Yılsa Engineering. Reference part number CEY-937FC77E4E11. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RK1200-0CQ20-0AA3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RK1200-0CQ20-0AA3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RK1200-0CQ20-0AA3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

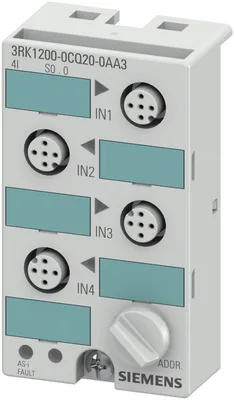

Siemens 3RK1200-0CQ20-0AA3

AS-i compact module K45 digital 4 DI, IP67 4 x input, maximum 200 mA 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately

SiemensMFR # 3RK1200-0CQ20-0AA3SKU # CEY-937FC77E4E11

design of the device typestandard slave

type of voltage supply for sensor supplyusing AS-Interface

input voltage20 ... 30 V

at ambient temperature 40 °C200 mA

number of digital inputs4

type of connection technology2- and 3-wire technology

Have questions?Chat on WhatsApp

About This Product

AS-i compact module K45 digital 4 DI, IP67 4 x input, maximum 200 mA 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately

Siemens 3RK1200-0CQ20-0AA3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General technical data

design of the productdigital I/O modules for operation in the field, IP67 - K45

design of the device typestandard slave

type of electrical connection of the inputs and outputsM12 screw-type terminals

Sensor supply

type of voltage supply for sensor supplyusing AS-Interface

input voltage20 ... 30 V

property of the sensor supply short-circuit and overload resistantYes

at ambient temperature 40 °C200 mA

Inputs

number of digital inputs4

type of connection technology2- and 3-wire technology

type of voltage of the input voltagesDC

for signal <1> minimum6 mA

with signal <0> maximum1.5 mA

design of the pin assignment of the inputsstandard assignement

Outputs

number of digital outputs0

Ambient conditions

during operation-25 ... +85 °C

during storage-40 ... +85 °C

protection class IPIP67

Mechanical data

width45 mm

height80 mm

depth30 mm

fastening methodstandard rail mounting/wall mounting using mounting plate for K45 compact module

shock resistance15 g / 11 ms

Accessories 18

Genuine accessories that can be used with the Siemens 3RK1200-0CQ20-0AA3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1YA00	Aksesuar · Device connector
3ZY1141-2BA00	Aksesuar · Removable terminals
3ZY1141-1BA00	Aksesuar · Removable terminals
3ZY1121-2BA00	Aksesuar · Removable terminals
3ZY1121-1BA00	Aksesuar · Removable terminals
3ZY1131-2BA00	Aksesuar · Removable terminals
3ZY1122-2BA00	Aksesuar · Removable terminals
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1131-1BA00	Aksesuar · Removable terminals
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3ZY1311-0AA00	Aksesuar · Further accessories
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RK1901-1YA11	Aksesuar · Device termination connector
3RK1901-1YA10	Aksesuar · Device connector
3RK1901-1YA01	Aksesuar · Device termination connector
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1450-1AB00	Bileşen · Further accessories
