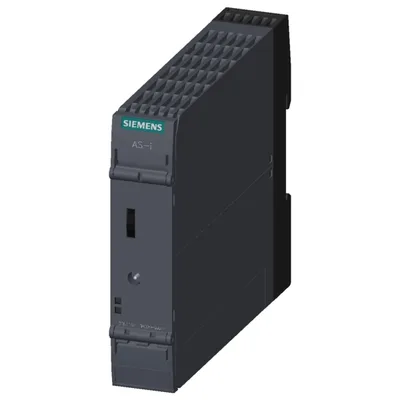

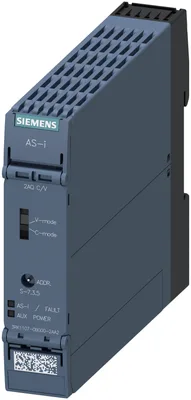

Siemens 3RK1107-0BG00-2AA2

UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog 2AQ-C/V spring-loaded terminals 2 x analog output outputs switchable C/V overall width 22.5 mm

SiemensMFR # 3RK1107-0BG00-2AA2SKU # CEY-8EF3B039430D

design of the productAS-i SC22.5, 2AQ voltage/current

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.3.5

ID1 codeF; Factory setting, changeable

at 30 V maximum200 mA

Have questions?Chat on WhatsApp

About This Product

UL/CSA CERTIFICATION IN PREPARATION SC22.5, IP20, analog 2AQ-C/V spring-loaded terminals 2 x analog output outputs switchable C/V overall width 22.5 mm

Siemens 3RK1107-0BG00-2AA2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product designationSlimline Compact I/O module for use in the control cabinet

design of the productAS-i SC22.5, 2AQ voltage/current

product type designation3RK1

design of the device typestandard slave

AS-Interface device profileS-7.3.5

ID1 codeF; Factory setting, changeable

operating voltage according to AS-Interface specification18 ... 31.6 V

product function suitable for AS-i Power24VYes

at 30 V maximum200 mA

at 24 V with AS-i Power24V maximum200 mA

type of address setting of the AS-i devicesvia front addressing socket

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Diboron trioxide CAS-No. 1303-86-2

Net Weight0.153 kg

according to EN 61346-2K

according to DIN 40719 extended according to IEC 204-2 according to IEC 750A

shock resistance15 g / 11 ms (modules) or 10 g / 11 ms (modules with device connector)

other informationAn auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III.

Digital Inputs

number of digital inputs0

number of digital inputs safety-related0

Digital Outputs

number of digital outputs0

type of voltage supply at the outputsAS interface or U_AUX

Analog inputs

number of analog inputs0

A/D resolution for analog inputs/outputs12 bit

Analog outputs

number of analog outputs2

signal range at analog output0 ... 20 mA; 4 ... 20 mA; +/- 20 mA; 1 ... 5 V; 0 ... 10 V; +/- 10 V

product function parameterizable output variableYes

Errors/ accuracies

relative symmetrical operational limit relating to input range/output range1 %; full sclae

relative symmetrical basic error limit relating to input range/output range at 25 °C0.8 %

symmetrical temperature error per K relating to input range/output range0.01 %/K

relative symmetrical linearity error relating to input range/output range0.08 %

relative symmetrical repeat accuracy relating to input range/output range in settled state 25 °C0.1 %

Device connector

for AS-Interface2 A

for external auxiliary voltage4 A

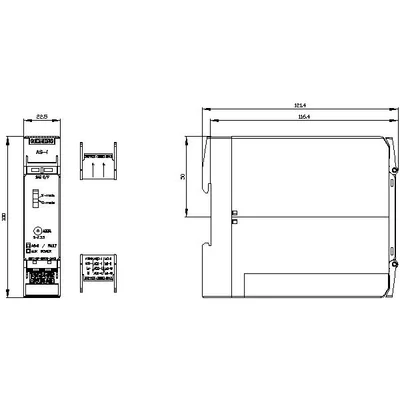

Installation/ mounting/ dimensions

fastening methodscrew and snap-on mounting

height100 mm

width22.5 mm

depth120 mm

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +85 °C

Connections/ Terminals

type of electrical connection of the inputs and outputsspring-loaded terminal (push-in)

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

finely stranded with core end processing1x (0,25 ... 1,0 mm²), 2x (0,25 ... 1,0 mm²)

finely stranded without core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 16)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 16)

Accessories 4

Genuine accessories that can be used with the Siemens 3RK1107-0BG00-2AA2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RK1901-1KA00	Aksesuar
3RK1901-1AA00	Aksesuar
3RK1901-0CA00	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K60
3RK1901-0CB01	Seçmeli zorunlu ürün · accessories digital I/O modules for operation in the field, IP67 - K60
