How can I get a price quote for Siemens 3RF2950-0KA16?

You can request a fast quote for Siemens 3RF2950-0KA16 from Yılsa Engineering. Reference part number CEY-8EF3B02FD61E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RF2950-0KA16 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RF2950-0KA16 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RF2950-0KA16?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

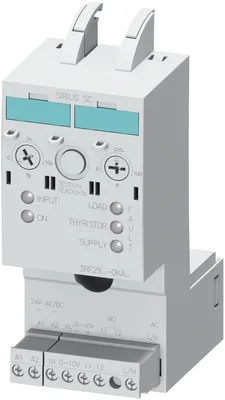

Photo may not represent actual item. Refer to name and product specs for all details.

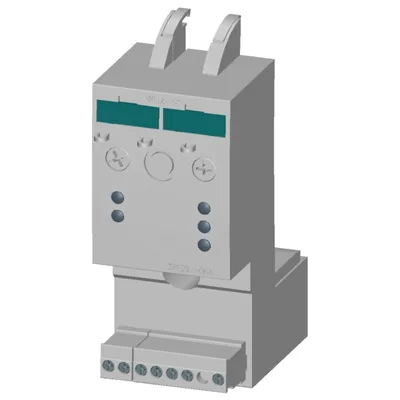

Siemens 3RF2950-0KA16

***phase-out type*** power controller current range 50 A / 40 °C 400 … 600 V / 24 V AC/DC with partial load monitoring for semiconductor relay/contactor

SiemensMFR # 3RF2950-0KA16SKU # CEY-8EF3B02FD61E

product brand nameSIRIUS

product designationpower controller

product type designation3RF29

without load current share typical1 W

insulation voltage rated value600 V

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** power controller current range 50 A / 40 °C 400 … 600 V / 24 V AC/DC with partial load monitoring for semiconductor relay/contactor

Siemens 3RF2950-0KA16

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationpower controller

product type designation3RF29

_1 of the accessories that can be ordered3RF2900-0RA88

_1 of the accessories that can be orderedsealable end cover

_2 of the accessories that can be orderedinput reactor / 1AC

General technical data

product functionfor 3RF21/23 solid-state relays/solid-state contactors

without load current share typical1 W

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value2.5 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.145 kg

Main circuit

number of poles for main current circuit0

number of NO contacts for main contacts0

number of NC contacts for main contacts0

at 50 Hz rated value400 ... 600 V

at 60 Hz rated value400 ... 600 V

operating frequency rated value50 ... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz340 ... 660 V

at 60 Hz340 ... 660 V

at AC-51 rated value50 A

derating temperature40 °C

teach range current initial value1.6 A

teach range current full-scale value50 A

partial load for load monitoring1.6 A

Control circuit/ Control

type of voltageAC/DC

at 50 Hz rated value20.5 ... 26.5 V

at 60 Hz rated value20.5 ... 26.5 V

at 50 Hz full-scale value for signal<0> recognition5 V

at 60 Hz full-scale value for signal<0> recognition5 V

control supply voltage at DC rated value18 ... 30 V

control supply voltage at DC full-scale value for signal<0> recognition5 V

supply voltage frequency for auxiliary and control circuit rated value50 ... 60 Hz

symmetrical line frequency tolerance5 Hz

at AC2 mA

at DC2 mA

control current at AC rated value40 mA

control current at DC rated value40 mA

Auxiliary circuit

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

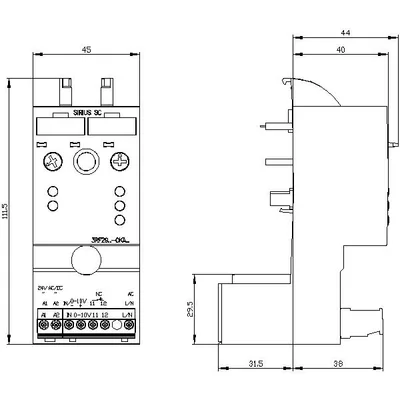

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodclip-on

height111.5 mm

width45 mm

depth69.5 mm

Connections/ Terminals

for auxiliary and control circuitscrew-type terminals

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

tightening torque for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m

tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in

design of the thread of the connection screw of the auxiliary and control contactsM3

stripped length of the cable for auxiliary and control contacts7 mm

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
