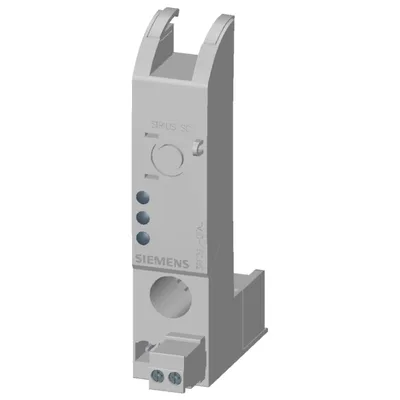

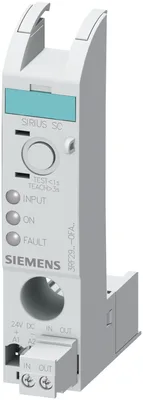

Siemens 3RF2906-0FA08

***phase-out type*** load monitoring basis current range 6 A / 40 °C control voltage 24 V DC for semiconductor relay/contactor

SiemensMFR # 3RF2906-0FA08SKU # CEY-8EF3B0395C2D

product brand nameSIRIUS

product designationload monitoring, basis

product type designation3RF29

without load current share typical0.6 W

insulation voltage rated value600 V

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** load monitoring basis current range 6 A / 40 °C control voltage 24 V DC for semiconductor relay/contactor

Siemens 3RF2906-0FA08

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationload monitoring, basis

product type designation3RF29

_1 of the accessories that can be ordered3RF2900-0RA88

_1 of the accessories that can be orderedsealable end cover

General technical data

product functionfor 3RF21/23 solid-state relays/solid-state contactors

without load current share typical0.6 W

insulation voltage rated value600 V

degree of pollution3

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2B

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.053 kg

Main circuit

number of poles for main current circuit0

number of NO contacts for main contacts0

number of NC contacts for main contacts0

operating frequency rated value50 ... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at AC-51 rated value6 A

derating temperature40 °C

teach range current initial value0.25 A

teach range current full-scale value6 A

partial load for load monitoring0.25 A

Control circuit/ Control

type of voltageDC

control supply voltage at DC rated value18 ... 30 V

control supply voltage at DC full-scale value for signal<0> recognition5 V

at DC2 mA

control current at DC rated value25 mA

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

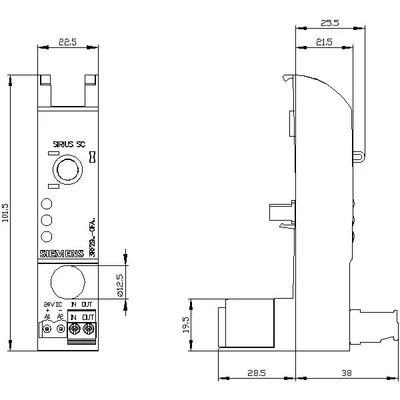

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodclip-on

height101.5 mm

width22.5 mm

depth67 mm

Connections/ Terminals

for auxiliary and control circuitscrew-type terminals

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

tightening torque for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m

tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in

design of the thread of the connection screw of the auxiliary and control contactsM3

stripped length of the cable for auxiliary and control contacts7 mm

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
