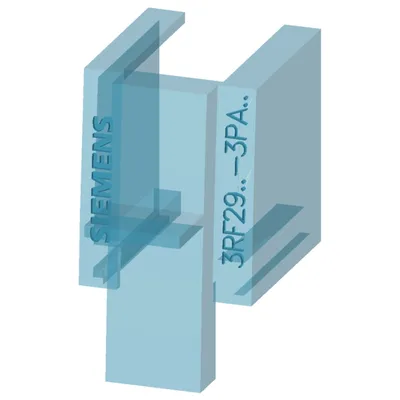

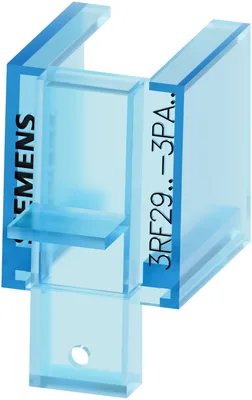

Siemens 3RF2900-3PA88

terminal cover for 3RF21/23/31/33 ring cable terminal and screw terminal

SiemensMFR # 3RF2900-3PA88SKU # CEY-8EF3B0308502

product brand nameSIRIUS

product designationterminal cover

product type designation3RF29

degree of pollution3

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.004 kg

Have questions?Chat on WhatsApp

About This Product

terminal cover for 3RF21/23/31/33 ring cable terminal and screw terminal

Siemens 3RF2900-3PA88

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationterminal cover

product type designation3RF29

General technical data

product functionsolid-state relay / solid-state contactor 3RF2

degree of pollution3

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.004 kg

Auxiliary circuit

number of CO contacts for auxiliary contacts0

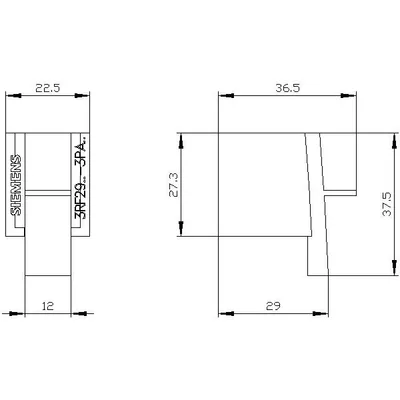

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodclip-on

height36.5 mm

width22.5 mm

depth37.5 mm

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
