How can I get a price quote for Siemens 3RF2900-2TB88?

You can request a fast quote for Siemens 3RF2900-2TB88 from Yılsa Engineering. Reference part number CEY-8EF3B0395C31. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RF2900-2TB88 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RF2900-2TB88 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RF2900-2TB88?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

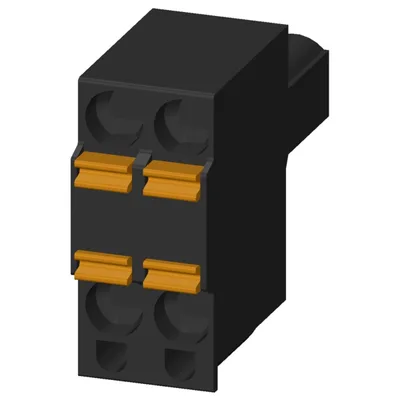

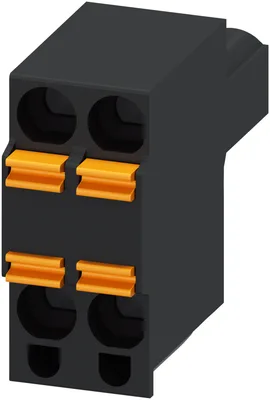

Siemens 3RF2900-2TB88

***phase-out type*** control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping points per contact color black

SiemensMFR # 3RF2900-2TB88SKU # CEY-8EF3B0395C31

product brand nameSIRIUS

product designationcontrol plug

product type designation3RF29

degree of pollution3

reference code according to IEC 81346-2X

Substance Prohibitance (day/month/year)07/01/2006

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** control connector for 3RF20/21/22/23/24 spring-loaded connection system two clamping points per contact color black

Siemens 3RF2900-2TB88

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontrol plug

product type designation3RF29

General technical data

product functionsolid-state relay / solid-state contactor 3RF2

degree of pollution3

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2X

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.005 kg

Main circuit

operating frequency rated value50 ... 60 Hz

derating temperature40 °C

Auxiliary circuit

number of CO contacts for auxiliary contacts0

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodclip-on

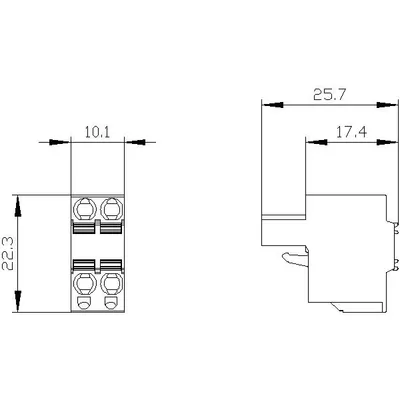

width10 mm

Connections/ Terminals

for auxiliary and control circuitspring-loaded terminals

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

stripped length of the cable for auxiliary and control contacts10 mm

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments
