How can I get a price quote for Siemens 3RF2340-1BA26?

You can request a fast quote for Siemens 3RF2340-1BA26 from Yılsa Engineering. Reference part number CEY-8EF3B0395CA6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RF2340-1BA26 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RF2340-1BA26 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RF2340-1BA26?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

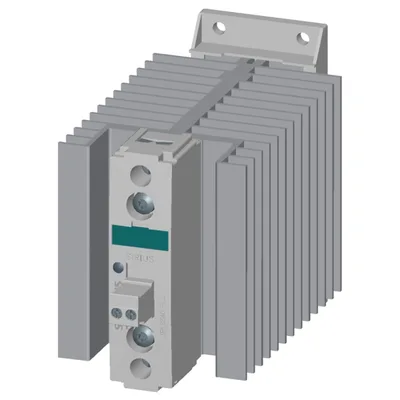

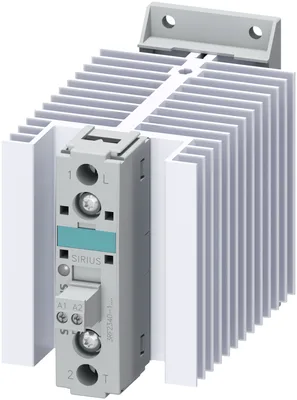

Siemens 3RF2340-1BA26

***phase-out type*** solid-state contactor 1-phase 3RF2 AC 15 / 20 A / 40 °C 48-600 V / 110-230 V AC instantaneous switching

SiemensMFR # 3RF2340-1BA26SKU # CEY-8EF3B0395CA6

product brand nameSIRIUS

product designationsolid-state contactor

design of the product1-pole

product type designation3RF23

product functioninstantaneous switching

at AC in hot operating state44 W

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** solid-state contactor 1-phase 3RF2 AC 15 / 20 A / 40 °C 48-600 V / 110-230 V AC instantaneous switching

Siemens 3RF2340-1BA26

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsolid-state contactor

design of the product1-pole

product type designation3RF23

_1 of the accessories that can be ordered3RF2900-3PA88

_2 of the accessories that can be ordered3RF2950-0HA36

_4 of the accessories that can be ordered3RF2950-0GA36

_1 of the accessories that can be orderedterminal cover

_2 of the accessories that can be orderedpower regulator

_4 of the accessories that can be orderedload monitoring

General technical data

product functioninstantaneous switching

at AC in hot operating state44 W

at AC in hot operating state per pole44 W

without load current share typical3.5 W

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4

Net Weight0.422 kg

Main circuit

number of poles for main current circuit1

number of NO contacts for main contacts1

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48 ... 600 V

— at 60 Hz rated value48 ... 600 V

operating frequency rated value50 ... 60 Hz

at 50 Hz40 ... 660 V

at 60 Hz40 ... 660 V

at AC-1 at 400 V rated value40 A

at AC-51 rated value40 A

at AC-51 according to IEC 60947-4-333 A

according to UL 508 rated value20 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible1 000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1 600 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value1 150 A

I2t value maximum6 600 A²·s

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz110 ... 230 V

at 60 Hz110 ... 230 V

at 50 Hz full-scale value for signal<0> recognition40 V

at 60 Hz full-scale value for signal<0> recognition40 V

initial value for signal <1> detection90 V

1 rated value50 Hz

2 rated value60 Hz

symmetrical line frequency tolerance5 Hz

at AC2 mA

control current at AC rated value15 mA

ON-delay time40 ms

OFF-delay time40 ms; additionally max. one half-wave

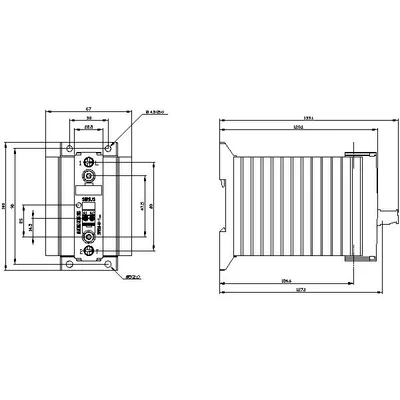

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodscrew fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715

design of the thread of the screw for securing the equipmentM4

height100 mm

width67.5 mm

depth144.5 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

— finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14 ... 10)

solid or stranded1.5 ... 6 mm²

finely stranded with core end processing1 ... 10 mm²

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

AWG number as coded connectable conductor cross section for main contacts10 ... 14

for main contacts with screw-type terminals2 ... 2.5 N·m

for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m

for main contacts with screw-type terminals18 ... 22 lbf·in

for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value20 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments

Short-circuit protection, design of the fuse link

of gS fuse for semiconductor protection at NH design usable3NE1802-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1350

of back-up R fuse link for semiconductor protection at NH design usable3NE8017-1

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2280

at NH design usable3NA6812; These fuses have a smaller rated current than the semiconductor relays

at NH design usable noteThese fuses have a smaller rated current than the semiconductor relays
