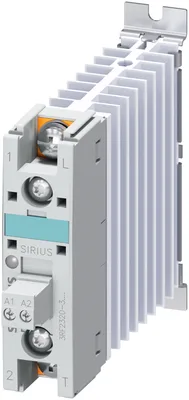

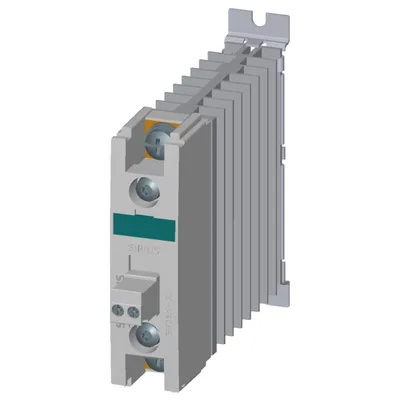

Siemens 3RF2320-3AA02

***phase-out type*** solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 24-230 V / 24 V DC ring cable terminal

SiemensMFR # 3RF2320-3AA02SKU # CEY-8EF3B0395CDA

product brand nameSIRIUS

product designationsolid-state contactor

design of the product1-pole

product type designation3RF23

product functionzero-point switching

at AC in hot operating state20 W

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 24-230 V / 24 V DC ring cable terminal

Siemens 3RF2320-3AA02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsolid-state contactor

design of the product1-pole

product type designation3RF23

_1 of the accessories that can be ordered3RF2900-3PA88

_3 of the accessories that can be ordered3RF2900-0EA18

_4 of the accessories that can be ordered3RF2920-0GA13

_1 of the accessories that can be orderedterminal cover

_3 of the accessories that can be orderedconverter

_4 of the accessories that can be orderedload monitoring

General technical data

product functionzero-point switching

at AC in hot operating state20 W

at AC in hot operating state per pole20 W

without load current share typical0.4 W

insulation voltage rated value600 V

degree of pollution3

surge voltage resistance of main circuit rated value6 kV

protection class IPIP00

protection class IP on the front according to IEC 60529IP00

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4

Net Weight0.172 kg

Main circuit

number of poles for main current circuit1

number of NO contacts for main contacts1

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value24 ... 230 V

— at 60 Hz rated value24 ... 230 V

operating frequency rated value50 ... 60 Hz

at 50 Hz20 ... 253 V

at 60 Hz20 ... 253 V

at AC-1 at 400 V rated value20 A

at AC-51 rated value20 A

at AC-51 according to IEC 60947-4-313.2 A

according to UL 508 rated value17.6 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible1 000 V/µs

blocking voltage at the thyristor for main contacts maximum permissible800 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value600 A

I2t value maximum1 800 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC rated value maximum permissible30 V

control supply voltage 1 at DC15 ... 24 V

initial value for signal <1> detection15 V

full-scale value for signal<0> recognition5 V

at DC13 mA

control current at DC rated value15 mA

ON-delay time1 ms; additionally max. one half-wave

OFF-delay time1 ms; additionally max. one half-wave

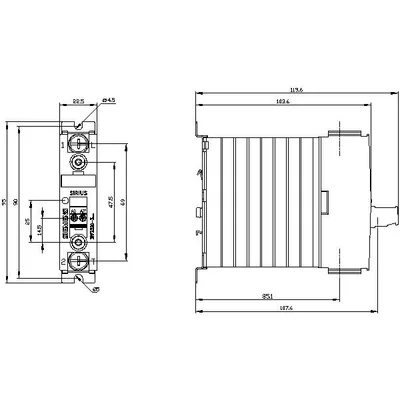

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodscrew fixing and snap-on mounting on standard mounting rail 35 mm according to IEC 60715

design of the thread of the screw for securing the equipmentM4

height95 mm

width22.5 mm

depth120 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for main current circuitRing cable lug connection

for auxiliary and control circuitring terminal lug connection

for main contacts for JIS cable lugJIS C 2805 R 2-5, 5,5-5, 8-5, 14-5

for DIN cable lug for main contactsDIN 46234-5-2,5, -5-6, -5-10, -5-16, -5-25

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

for main contacts with screw-type terminals2 ... 2.5 N·m

for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m

for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in

for main contactsM5

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value17.6 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

field-based interference according to IEC 61000-4-380 MHz ... 1 GHz 10 V/m, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class B for the domestic, business and commercial environments

Short-circuit protection, design of the fuse link

of gS fuse for semiconductor protection at NH design usable3NE1814-0

of full range R fuse link for semiconductor protection at cylindrical design usable5SE1325

of back-up R fuse link for semiconductor protection at NH design usable3NE8015-1

of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable3NC1032

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2263

at NH design usable3NA6807

at cylindrical design 10 x 38 mm usable3NW6007-1

at cylindrical design 14 x 51 mm usable3NW6107-1

at cylindrical design 22 x 58 mm usable3NW6207-1

of DIAZED fuse usable5SB2711

of NEOZED fuse usable5SE2320
