How can I get a price quote for Siemens 3RF2255-2AB45?

You can request a fast quote for Siemens 3RF2255-2AB45 from Yılsa Engineering. Reference part number CEY-8EF3B0395742. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RF2255-2AB45 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RF2255-2AB45 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RF2255-2AB45?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

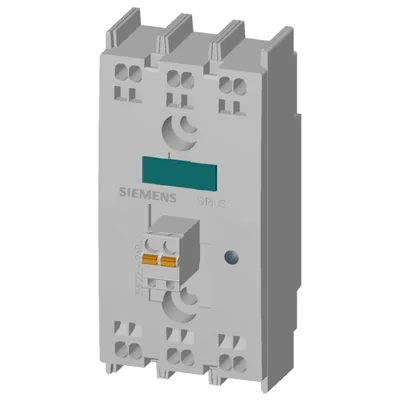

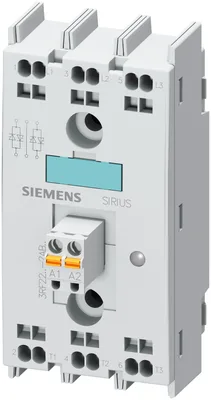

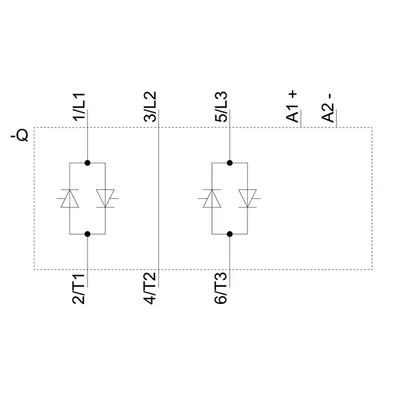

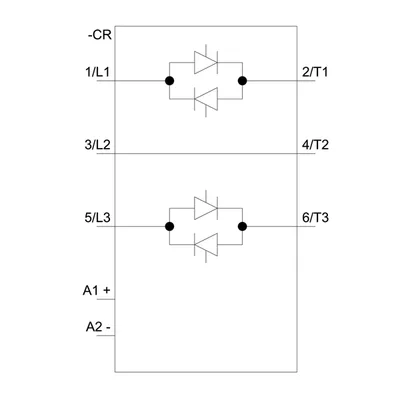

Siemens 3RF2255-2AB45

***phase-out type*** semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 2-phase controlled spring-loaded terminal blocking voltage 1200 V for mounting on available cooling surfaces

SiemensMFR # 3RF2255-2AB45SKU # CEY-8EF3B0395742

product brand nameSIRIUS

product designationsolid-state relay

design of the product2-pole controlled

product type designation3RF22

product functionzero-point switching

at AC in hot operating state151 W

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 2-phase controlled spring-loaded terminal blocking voltage 1200 V for mounting on available cooling surfaces

Siemens 3RF2255-2AB45

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsolid-state relay

design of the product2-pole controlled

product type designation3RF22

_2 of the accessories that can be ordered3RF2900-0EA18

_2 of the accessories that can be orderedconverter

General technical data

product functionzero-point switching

at AC in hot operating state151 W

at AC in hot operating state per pole151 W

without load current share typical0.5 W

insulation voltage rated value600 V

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.12 kg

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48 ... 600 V

— at 60 Hz rated value48 ... 600 V

operating frequency rated value50 ... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40 ... 660 V

at 60 Hz40 ... 660 V

operational current rated value maximum55 A

at AC-1 at 400 V rated value55 A

at AC-51 rated value20 A

according to UL 508 rated value20 A

ampacity maximum55 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible100 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1 200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value600 A

I2t value maximum1 800 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC4 ... 30 V

initial value for signal <1> detection4 V

full-scale value for signal<0> recognition1 V

at DC22 mA

control current at DC rated value30 mA

ON-delay time1 ms; additionally max. one half-wave

OFF-delay time1 ms; additionally max. one half-wave

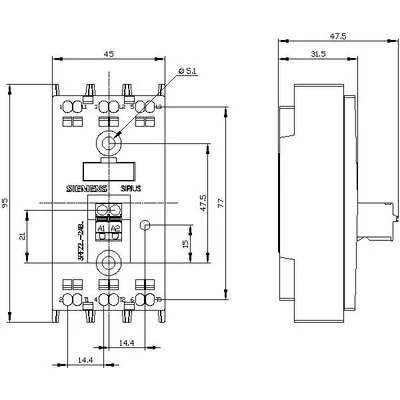

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodscrew fixing

design of the thread of the screw for securing the equipmentM4

tightening torque of fixing screw maximum1.5 N·m

tightening torque [lbf·in] of fixing screw maximum13 lbf·in

height95 mm

width45 mm

depth47 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

— solid2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²)

— finely stranded without core end processing2x (0.5 ... 2.5 mm²)

for AWG cables for main contacts2x (18 ... 14)

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 1.5 mm²

finely stranded without core end processing0.5 ... 2.5 mm²

— solid0.5 ... 1.5 mm²

— finely stranded with core end processing0.5 ... 2.5 mm²

— finely stranded without core end processing0.5 ... 2.5 mm²

for AWG cables for auxiliary and control contacts1x (20 ... 12)

AWG number as coded connectable conductor cross section for main contacts10 ... 14

for main contacts with screw-type terminals2 ... 2.5 N·m

for main contactsM4

for main contacts10 mm

for auxiliary and control contacts10 mm

UL/CSA ratings

operational current according to UL 508 rated value20 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE1803-0; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at NH design usable3NE8018-1

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2250; These fuses have a smaller rated current than the semiconductor relays

up to 460 V3NA3807-6; These fuses have a smaller rated current than the semiconductor relays

up to 600 V3NA3805-6; These fuses have a smaller rated current than the semiconductor relays
