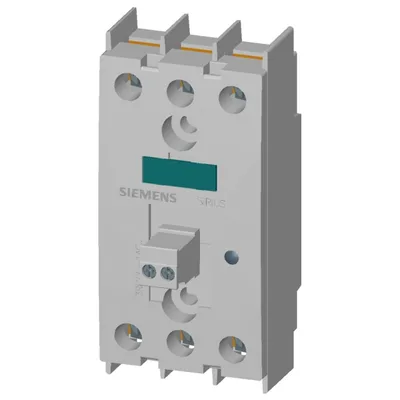

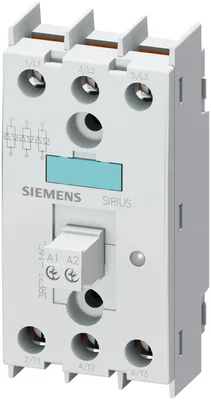

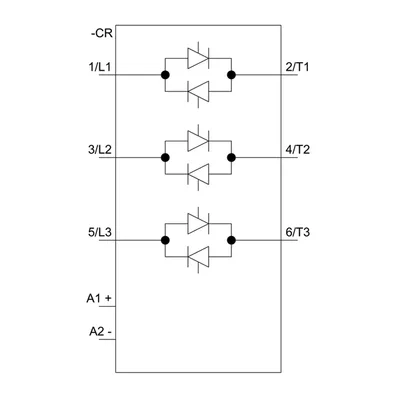

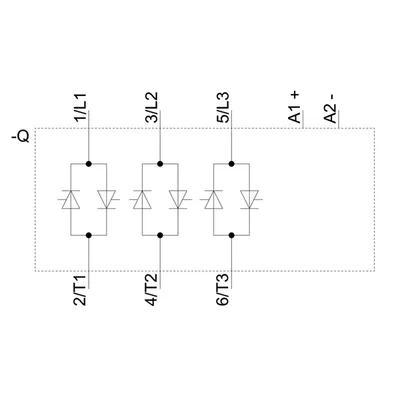

Siemens 3RF2255-1AC45

***phase-out type*** semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal blocking voltage 1200 V for mounting on available cooling surfaces

SiemensMFR # 3RF2255-1AC45SKU # CEY-8EF3B02FD61F

product brand nameSIRIUS

product designationsolid-state relay

design of the product3-pole controlled

product type designation3RF22

product functionzero-point switching

at AC in hot operating state226 W

Have questions?Chat on WhatsApp

About This Product

***phase-out type*** semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 3-phase controlled screw terminal blocking voltage 1200 V for mounting on available cooling surfaces

Siemens 3RF2255-1AC45

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationsolid-state relay

design of the product3-pole controlled

product type designation3RF22

_2 of the accessories that can be ordered3RF2900-0EA18

_2 of the accessories that can be orderedconverter

General technical data

product functionzero-point switching

at AC in hot operating state226 W

at AC in hot operating state per pole226 W

without load current share typical0.9 W

insulation voltage rated value600 V

surge voltage resistance of main circuit rated value6 kV

protection class IPIP20

protection class IP on the front according to IEC 60529IP20

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-62 g

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.124 kg

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

type of voltage of the operating voltageAC

— at 50 Hz rated value48 ... 600 V

— at 60 Hz rated value48 ... 600 V

operating frequency rated value50 ... 60 Hz

relative symmetrical tolerance of the operating frequency10 %

at 50 Hz40 ... 660 V

at 60 Hz40 ... 660 V

operational current rated value maximum55 A

at AC-1 at 400 V rated value55 A

at AC-51 rated value50 A

according to UL 508 rated value50 A

ampacity maximum55 A

operational current minimum500 mA

rate of voltage rise at the thyristor for main contacts maximum permissible100 V/µs

blocking voltage at the thyristor for main contacts maximum permissible1 200 V

reverse current of the thyristor10 mA

derating temperature40 °C

surge current resistance rated value600 A

I2t value maximum1 800 A²·s

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC4 ... 30 V

initial value for signal <1> detection4 V

full-scale value for signal<0> recognition1 V

at DC22 mA

control current at DC rated value30 mA

ON-delay time1 ms; additionally max. one half-wave

OFF-delay time1 ms; additionally max. one half-wave

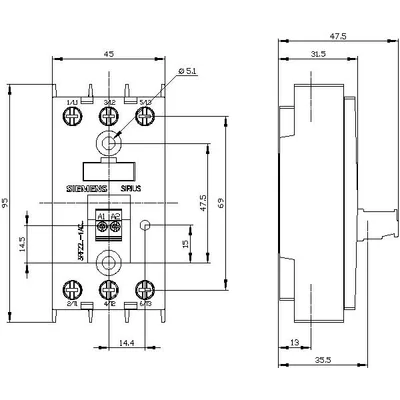

Installation/ mounting/ dimensions

fastening method side-by-side mountingYes

fastening methodscrew fixing

design of the thread of the screw for securing the equipmentM4

tightening torque of fixing screw maximum1.5 N·m

tightening torque [lbf·in] of fixing screw maximum13 lbf·in

height95 mm

width45 mm

depth47 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²)

— finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²

for AWG cables for main contacts2x (14 ... 10)

solid or stranded1.5 ... 6 mm²

finely stranded with core end processing1 ... 10 mm²

— solid1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

— finely stranded without core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1 mm²)

for AWG cables for auxiliary and control contacts1x (20 ... 12)

AWG number as coded connectable conductor cross section for main contacts10 ... 14

for main contacts with screw-type terminals2 ... 2.5 N·m

for auxiliary and control contacts with screw-type terminals0.5 ... 0.6 N·m

for main contacts with screw-type terminals18 ... 22 lbf·in

for auxiliary and control contacts with screw-type terminals4.5 ... 5.3 lbf·in

for main contactsM4

of the auxiliary and control contactsM3

for main contacts10 mm

for auxiliary and control contacts7 mm

UL/CSA ratings

operational current according to UL 508 rated value50 A

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Ambient conditions

installation altitude at height above sea level maximum1 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV / 5 kHz, behavior criterion 2

due to conductor-earth surge according to IEC 61000-4-52 kV, behavior criterion 2

due to conductor-conductor surge according to IEC 61000-4-51 kV, behavior criterion 2

due to high-frequency radiation according to IEC 61000-4-6140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1

electrostatic discharge according to IEC 61000-4-24 kV contact discharging / 8 kV air discharging, behavior criterion 2

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Short-circuit protection, design of the fuse link

of full range R fuse link for semiconductor protection at NH design usable3NE1803-0; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at NH design usable3NE8018-1

of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable3NC1450; These fuses have a smaller rated current than the semiconductor relays

of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable3NC2250; These fuses have a smaller rated current than the semiconductor relays

up to 460 V3NA3807-6; These fuses have a smaller rated current than the semiconductor relays

up to 600 V3NA3805-6; These fuses have a smaller rated current than the semiconductor relays
