How can I get a price quote for Siemens 3RB2483-4AC1?

You can request a fast quote for Siemens 3RB2483-4AC1 from Yılsa Engineering. Reference part number CEY-8EF3B0395270. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RB2483-4AC1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RB2483-4AC1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RB2483-4AC1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

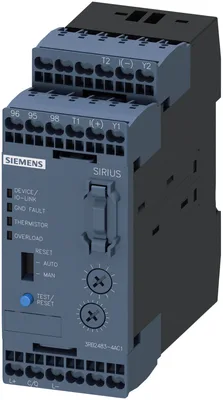

Siemens 3RB2483-4AC1

evaluation unit for full motor protection (monostable) for IO-Link frame size S00...S12, class 5...30 stand-alone installation main circuit: -- auxiliary circuit: spring-loaded terminal manual-automatic RESET

SiemensMFR # 3RB2483-4AC1SKU # CEY-8EF3B0395270

product brand nameSIRIUS

product designationElectronic overload relay for IO-Link

product type designation3RB24

size of overload relayS00 ... S12

per pole0.17 W

surge voltage resistance rated value4 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 3RB2483-4AC1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationElectronic overload relay for IO-Link

product type designation3RB24

General technical data

size of overload relayS00 ... S12

size of contactor can be combined company-specificS00 ... S12

power loss [W] for rated value of the current at AC in hot operating state0.5 W

per pole0.17 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4 kV

shock resistance according to IEC 60068-2-2715 g / 11 ms

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight252.83 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

relative humidity during operation100 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release0.3 ... 630 A

operating frequency rated value50 ... 60 Hz

operational current rated value630 A

Auxiliary circuit

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts1

at 24 V6 A

at 125 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0.55 A

at 125 V0.3 A

at 220 V0.2 A

Protective and monitoring functions

trip classCLASS 5, 10, 20 and 30 adjustable

UL/CSA ratings

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A

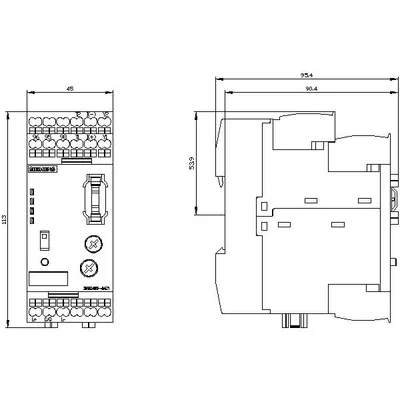

Installation/ mounting/ dimensions

mounting positionany

fastening methodstand-alone installation

height113 mm

width45 mm

depth95 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side6 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side6 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

for auxiliary and control circuitspring-loaded terminals

— solid or stranded1x (0,25 ... 1,5 mm²), 2x (0,25 ... 1,5 mm²)

— finely stranded with core end processing1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²)

— finely stranded without core end processing1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²)

for AWG cables for auxiliary contacts1x (24 ... 16), 2x (24 ... 16)

Safety related data

failure rate [FIT] with low demand rate according to SN 319202 310 FIT

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
