How can I get a price quote for Siemens 3RA6500-1CB43?

You can request a fast quote for Siemens 3RA6500-1CB43 from Yılsa Engineering. Reference part number CEY-8EF3B0395316. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RA6500-1CB43 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RA6500-1CB43 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RA6500-1CB43?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

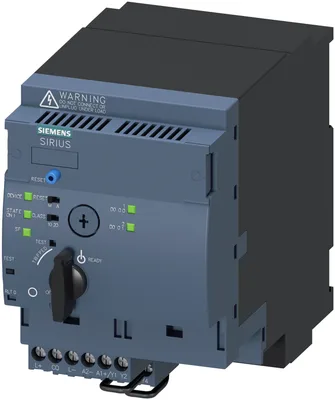

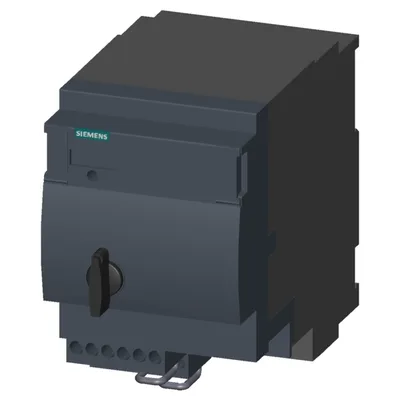

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

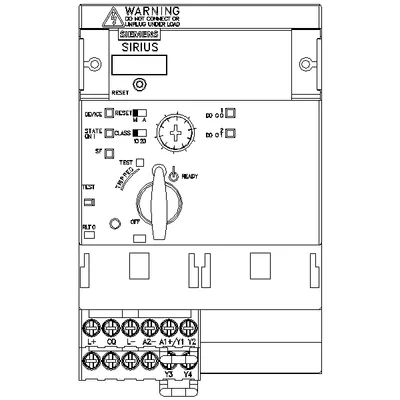

Siemens 3RA6500-1CB43

Possible replacement with ET 200SP motor starter. ET 200SP I/O system required starter reversing starter for IO-Link 690 V 24 V DC 1...4 A IP20 connection main circuit: plug-in, without terminals connection control circuit: screw terminal alternative 3RK1308 or 3RA8 requirement controller such as ET 200SP in use

SiemensMFR # 3RA6500-1CB43SKU # CEY-8EF3B0395316

product brand nameSIRIUS

product designationCompact starter for IO-Link

design of the productreversing starter

product type designation3RA65

product extension auxiliary switchYes

at AC in hot operating state1 W

Have questions?Chat on WhatsApp

About This Product

Siemens 3RA6500-1CB43

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCompact starter for IO-Link

design of the productreversing starter

product type designation3RA65

General technical data

product function control circuit interface to parallel wiringNo

product extension auxiliary switchYes

at AC in hot operating state1 W

at AC in hot operating state per pole0.33 W

without load current share typical2.9 W

insulation voltage rated value690 V

degree of pollution3

surge voltage resistance rated value6 000 V

degree of protection NEMA ratingother

shock resistancea=60 m/s2 (6g) with 10 ms per 3 shocks in all axes

vibration resistancef = 4 ... 5.8 Hz, d = 15 mm; f = 5.8 ... 500 Hz, a = 20 m/s²; 10 cycles

of the main contacts typical10 000 000

of auxiliary contacts typical10 000 000

of the signaling contacts typical10 000 000

at DC-13 at 6 A at 24 V typical30 000

at AC-15 at 6 A at 230 V typical200 000

type of coordinationcontinous operation according to IEC 60947-6-2

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight2.312 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-55 ... +80 °C

during transport-55 ... +80 °C

relative humidity during operation10 ... 90 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release1 ... 4 A

formula for making capacity limit current12 x Ie

formula for limit current breaking capacity10 x Ie

at 400 V rated value1.5 kW

at 500 V rated value2.2 kW

at 690 V rated value3 kW

operating voltage at AC-3 rated value maximum690 V

at AC at 400 V rated value4 A

at AC-3 at 400 V rated value4 A

— at 400 V rated value3.6 A

— at 500 V rated value3.9 A

— at 690 V rated value3.8 A

at AC-3 at 400 V rated value1.5 kW

— at 400 V rated value1 500 W

— at 500 V rated value2 200 W

— at 690 V rated value3 000 W

no-load switching frequency3 600 1/h

at AC-41 according to IEC 60947-6-2 maximum750 1/h

at AC-43 according to IEC 60947-6-2 maximum250 1/h

Control circuit/ Control

type of voltageDC

control supply voltage 1 at DC rated value24 V

control supply voltage 1 at DC24 V

at DC maximum2.9 W

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of NO contacts of instantaneous short-circuit trip unit for signaling contact0

number of CO contacts of the current-dependent overload release for signaling contact0

operational current of auxiliary contacts at AC-12 maximum10 A

operational current of auxiliary contacts at DC-13 at 250 V0.27 A

Protective and monitoring functions

trip classCLASS 10 and 20 adjustable

at 400 V rated value53 kA

at 500 V rated value3 kA

at 690 V rated value3 kA

UL/CSA ratings

at 480 V rated value4 A

at 600 V rated value4 A

at 200/208 V rated value0.75 hp

at 220/230 V rated value0.75 hp

at 460/480 V rated value2 hp

at 575/600 V rated value3 hp

Short-circuit protection

product function short circuit protectionYes

design of short-circuit protectionelectromagnetic

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

Installation/ mounting/ dimensions

mounting positionany

mounting position recommendedvertical, on horizontal standard DIN rail

fastening methodscrew and snap-on mounting

height170 mm

width90 mm

depth165 mm

Connections/ Terminals

product component removable terminal for main circuitYes

product component removable terminal for auxiliary and control circuitYes

for main current circuitplug-in without terminals

for auxiliary and control circuitscrew-type terminals

solid2x (1.5 ... 6 mm²), 1x 10 mm²

finely stranded with core end processing2x (1.5 ... 6 mm²)

— solid0.5 ... 4 mm², 2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

Safety related data

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319201 500 000

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

Communication/ Protocol

product function bus communicationYes

AS-Interface protocolNo

IO-Link protocolYes

product function control circuit interface with IO linkYes

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum2.5 ms

type of voltage supply via input/output link masterNo

of the address range of the inputs with cyclical transfer total2 byte

of the address range of the outputs with cyclical transfer total2 byte

Electromagnetic compatibility

due to burst according to IEC 61000-4-44 kV main circuits, 2 kV auxiliary circuits, 2 kV IO-Link, 2 kV limit switches, 2 kV line hand-held device

due to conductor-earth surge according to IEC 61000-4-54 kV main circuits, 0.5 kV auxiliary voltage with upstream overvoltage protection

due to conductor-conductor surge according to IEC 61000-4-52 kV main circuits, 0.5 kV auxiliary voltage with upstream overvoltage protection

due to high-frequency radiation according to IEC 61000-4-60.15-80Mhz at 10V

field-based interference according to IEC 61000-4-380 ... 3000 MHz at 10V/m

electrostatic discharge according to IEC 61000-4-28 kV

conducted HF interference emissions according to CISPR11150 kHz ... 30 MHz Class A

field-bound HF interference emission according to CISPR1130 ... 1000 MHz Class A

Supply voltage

Supply voltage required Auxiliary voltageYes

Display

number of LEDs5

display version as status display of the input/output link devicegreen/red dual LED
