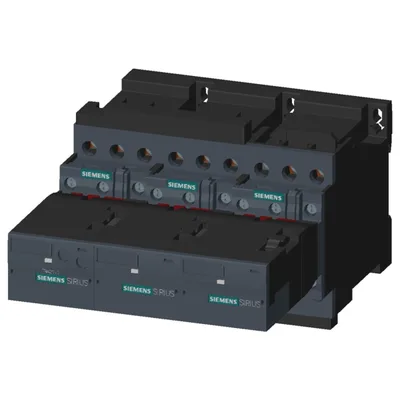

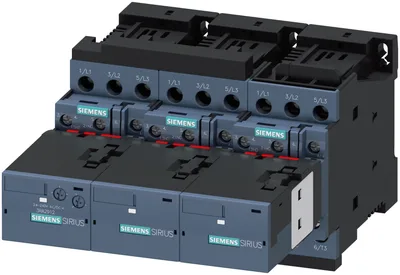

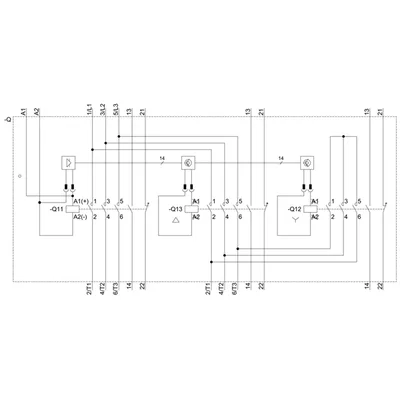

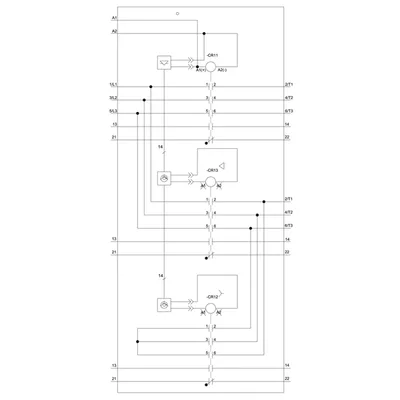

Siemens 3RA2425-8XF32-1BB4

Contactor assembly for star-delta (wye-delta) start AC-3, 15/18.5 kW/400 V, 24 V DC 3-pole, Size S0 screw terminal electrical and mechanical interlock 3 NO + 3 NC integrated

SiemensMFR # 3RA2425-8XF32-1BB4SKU # CEY-8EF3B02F8B32

product brand nameSIRIUS

product type designation3RA24

1 of the supplied contactor3RT2026-1BB40

2 of the supplied contactor3RT2026-1BB40

3 of the supplied contactor3RT2024-1BB40

of the supplied RS assembly kit3RA2923-2BB1

Have questions?Chat on WhatsApp

About This Product

Contactor assembly for star-delta (wye-delta) start AC-3, 15/18.5 kW/400 V, 24 V DC 3-pole, Size S0 screw terminal electrical and mechanical interlock 3 NO + 3 NC integrated

Siemens 3RA2425-8XF32-1BB4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationContactor assembly for star-delta (wye-delta) start

product type designation3RA24

1 of the supplied contactor3RT2026-1BB40

2 of the supplied contactor3RT2026-1BB40

3 of the supplied contactor3RT2024-1BB40

of the supplied RS assembly kit3RA2923-2BB1

of the supplied function module for wye-delta circuits3RA2816-0EW20

General technical data

size of contactorS0

product extension auxiliary switchNo

at AC7,5 g / 5 ms, 4,7 g / 10 ms

at DC10g / 5 ms, 7,5g / 10 ms

at AC11,8 g / 5 ms, 7,4 g / 10 ms

at DC15 g / 5 ms, 10 g / 10 ms

of contactor typical10 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2009

SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight2.426 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum690 V

— at 400 V rated value40 A

— at 400 V rated value15 kW

— at 500 V rated value19 kW

— at 690 V rated value19 kW

at AC-3 maximum1 000 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage 1 at DC rated value24 V

closing power of magnet coil at DC13.8 W

holding power of magnet coil at DC13.8 W

Auxiliary circuit

instantaneous contact3

contact reliability of auxiliary contacts< 1 error per 100 million operating cycles

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

— with type of coordination 1 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 100 A

— with type of coordination 2 requiredgG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A

for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

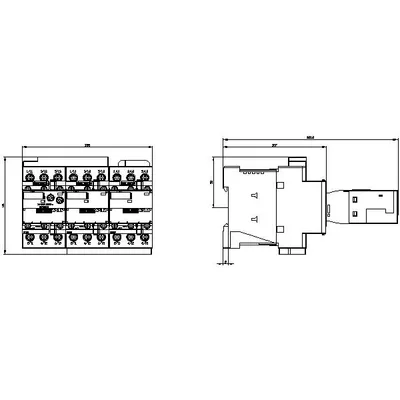

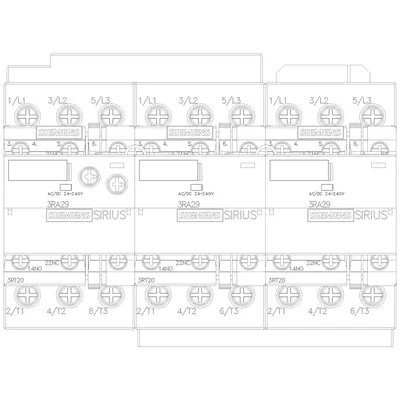

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height101 mm

width135 mm

depth181 mm

— forwards6 mm

— backwards0 mm

— upwards6 mm

— downwards6 mm

— at the side6 mm

— forwards6 mm

— backwards0 mm

— upwards6 mm

— at the side6 mm

— downwards6 mm

— forwards6 mm

— backwards0 mm

— upwards6 mm

— downwards6 mm

— at the side6 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

at contactor for auxiliary contactsScrew-type terminals

of magnet coilscrew terminal

solid2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)

solid or stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)

finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14)

Safety related data

product function suitable for safety functionYes

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

product function bus communicationNo

protocol is supported AS-Interface protocolNo

product function control circuit interface with IO linkNo
