How can I get a price quote for Siemens 3RA2210-1JS16-2BB4?

You can request a fast quote for Siemens 3RA2210-1JS16-2BB4 from Yılsa Engineering. Reference part number CEY-8EF3B03955E1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RA2210-1JS16-2BB4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RA2210-1JS16-2BB4 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RA2210-1JS16-2BB4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

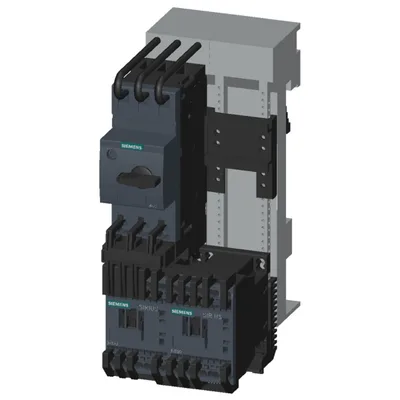

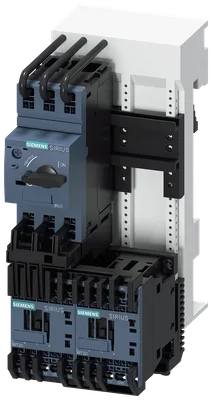

Siemens 3RA2210-1JS16-2BB4

Load feeder fuseless, Reversing duty 400 V AC, Size S00 7.00...10.0 A 24 V DC Spring-type terminal for 60 mm busbar systems Type of coordination 1, Iq = 150 kA 1 NC (contactor) Adapter length 200 mm

SiemensMFR # 3RA2210-1JS16-2BB4SKU # CEY-8EF3B03955E1

product brand nameSIRIUS

product designationReversing starter

design of the productfor 60 mm busbars

product type designation3RA22

of the supplied contactor3RT2016-2BB42

of the supplied circuit-breakers3RV2011-1JA20

Have questions?Chat on WhatsApp

About This Product

Load feeder fuseless, Reversing duty 400 V AC, Size S00 7.00...10.0 A 24 V DC Spring-type terminal for 60 mm busbar systems Type of coordination 1, Iq = 150 kA 1 NC (contactor) Adapter length 200 mm

Siemens 3RA2210-1JS16-2BB4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationReversing starter

design of the productfor 60 mm busbars

product type designation3RA22

of the supplied contactor3RT2016-2BB42

of the supplied circuit-breakers3RV2011-1JA20

of the supplied RS assembly kit8US1250-5AS10

of the supplied busbar adapter8US1251-5DS11

of the supplied link module3RA2911-2AA00

of the supplied wiring kit3RA2913-2AA2

General technical data

size of the circuit-breakerS00

size of load feederS00

at AC in hot operating state per pole3.4 W

without load current share typical4 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

degree of protection NEMA ratingother

shock resistance according to IEC 60068-2-276 g / 11 ms

mechanical service life (operating cycles) of contactor typical30 000 000

type of coordination1

reference code according to IEC 81346-2:2019Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight1.94 kg

Ambient conditions

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

design of the switching contactelectromechanical

adjustable current response value current of the current-dependent overload release7 ... 10 A

rated value690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

at AC-3 at 400 V rated value9 A

at AC-3e at 400 V rated value9 A

— at 400 V rated value4 000 W

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

holding power of magnet coil at DC4 W

Auxiliary circuit

product extension auxiliary switchYes

Protective and monitoring functions

trip classCLASS 10

design of the overload releasethermal (bimetallic)

response value current of instantaneous short-circuit trip unit130 A

UL/CSA ratings

at 480 V rated value7.6 A

at 600 V rated value7.6 A

— at 110/120 V rated value0.33 hp

— at 230 V rated value1 hp

— at 200/208 V rated value2 hp

— at 220/230 V rated value3 hp

— at 460/480 V rated value5 hp

— at 575/600 V rated value7.5 hp

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 400 V according to IEC 60947-4-1 rated value150 000 A

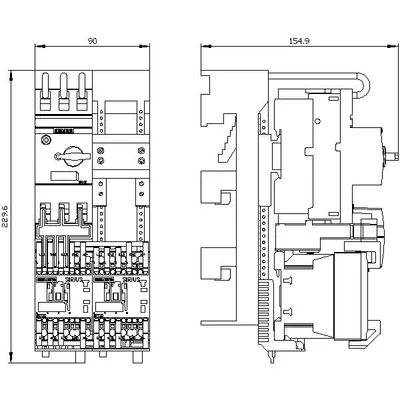

Installation/ mounting/ dimensions

mounting positionvertical

fastening methodfor snapping onto 60 mm busbar systems

height230 mm

width90 mm

depth155 mm

— forwards32 mm

— backwards0 mm

— upwards50 mm

— at the side10 mm

— downwards10 mm

— forwards32 mm

— backwards0 mm

— upwards50 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

Safety related data

product function suitable for safety functionYes

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

PROFINET IO protocolNo

PROFIsafe protocolNo

protocol is supported AS-Interface protocolNo

Accessories 6

Genuine accessories that can be used with the Siemens 3RA2210-1JS16-2BB4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RV2901-2E	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-2F	Aksesuar · Auxiliary switch · auxiliary switches
3RV2901-2A	Aksesuar · Auxiliary switch · auxiliary switches
3RV2902-2AP0	Aksesuar · Auxiliary release · undervoltage releases
3RV2902-2DP0	Aksesuar · Auxiliary release · shunt releases
3RH2911-2DA11	Aksesuar · Auxiliary switch · auxiliary switches
