How can I get a price quote for Siemens 3RA2210-0DA15-2BB4?

You can request a fast quote for Siemens 3RA2210-0DA15-2BB4 from Yılsa Engineering. Reference part number CEY-8EF3B0395093. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RA2210-0DA15-2BB4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RA2210-0DA15-2BB4 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RA2210-0DA15-2BB4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

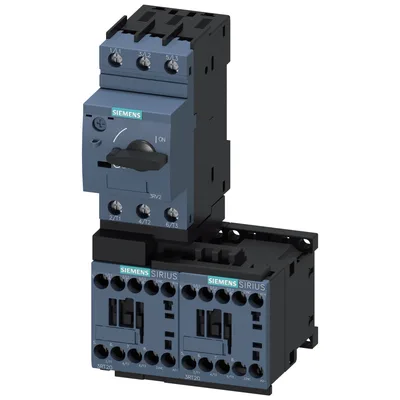

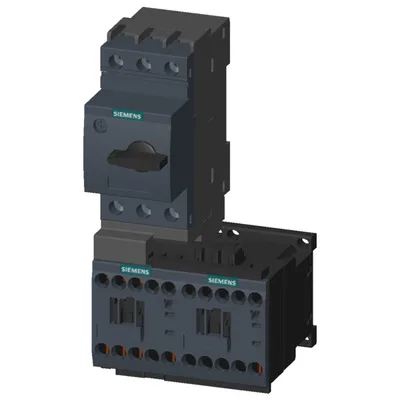

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3RA2210-0DA15-2BB4

Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.22...0.32 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)

SiemensMFR # 3RA2210-0DA15-2BB4SKU # CEY-8EF3B0395093

product brand nameSIRIUS

product designationReversing starter

design of the productfor DIN-rail or screw mounting

product type designation3RA22

of the supplied contactor3RT2015-1BB42

of the supplied circuit-breakers3RV2011-0DA10

Have questions?Chat on WhatsApp

About This Product

Siemens 3RA2210-0DA15-2BB4

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationReversing starter

design of the productfor DIN-rail or screw mounting

product type designation3RA22

of the supplied contactor3RT2015-1BB42

of the supplied circuit-breakers3RV2011-0DA10

of the supplied link module3RA1921-1DA00

of the supplied wiring kit3RA2913-2AA1

General technical data

size of the circuit-breakerS00

size of load feederS00

at AC in hot operating state per pole2 W

without load current share typical4 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

degree of protection NEMA ratingother

shock resistance according to IEC 60068-2-276 g / 11 ms

mechanical service life (operating cycles) of contactor typical30 000 000

type of coordination2

reference code according to IEC 81346-2:2019Q

Substance Prohibitance (day/month/year)10/01/2009

Net Weight0.822 kg

Ambient conditions

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

design of the switching contactelectromechanical

adjustable current response value current of the current-dependent overload release0.22 ... 0.32 A

rated value690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

at AC-3 at 400 V rated value0.3 A

at AC-3e at 400 V rated value0.32 A

— at 400 V rated value90 W

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

holding power of magnet coil at DC4 W

Auxiliary circuit

product extension auxiliary switchYes

Protective and monitoring functions

trip classCLASS 10

design of the overload releasethermal (bimetallic)

response value current of instantaneous short-circuit trip unit4.2 A

UL/CSA ratings

at 480 V rated value0.3 A

at 600 V rated value0.3 A

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 400 V according to IEC 60947-4-1 rated value150 000 A

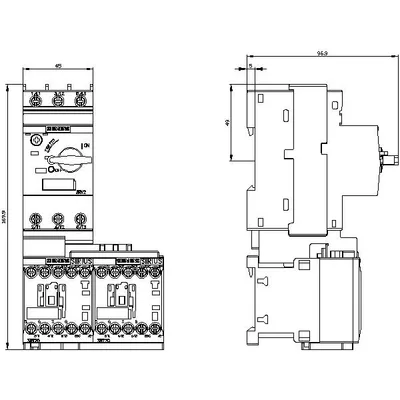

Installation/ mounting/ dimensions

mounting positionvertical

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height170 mm

width90 mm

depth97 mm

— forwards32 mm

— backwards0 mm

— upwards50 mm

— at the side10 mm

— downwards10 mm

— forwards32 mm

— backwards0 mm

— upwards50 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

Safety related data

product function suitable for safety functionYes

Electrical Safety

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Communication/ Protocol

PROFINET IO protocolNo

PROFIsafe protocolNo

protocol is supported AS-Interface protocolNo
