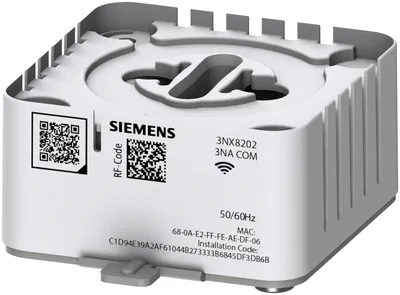

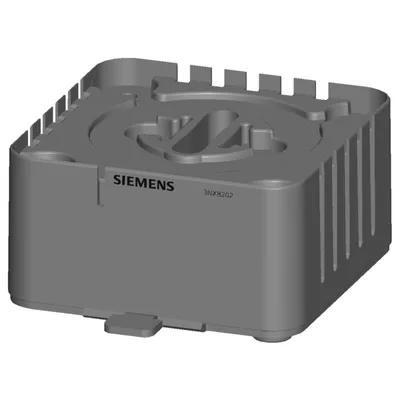

Siemens 3NX8202

3NA COM electr. module, frame size 2, insul.

SiemensMFR # 3NX8202SKU # YLS6T1SZR5JFILI

product brand nameSENTRON

product designationElectronic module

design of the productfor 3NA COM fuses size 2, insulated

mounting typeinsulated grip lugs

type of voltage of the operating voltageAC

operational current at AC rated value400 A

Have questions?Chat on WhatsApp

About This Product

Siemens 3NX8202 (3NA COM electr. module, frame size 2, insul.) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3NX8202 — price, stock availability and technical specifications.

Siemens 3NX8202

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationElectronic module

design of the productfor 3NA COM fuses size 2, insulated

General technical data

size of fuse system according to EN 60269-1NH2

mounting typeinsulated grip lugs

type of voltage of the operating voltageAC

operational current at AC rated value400 A

at AC400 V

Protection class

protection class IPIP20

Dissipation

power loss [W]0.05 W

power loss [W] for rated value of the current at AC in hot operating state per pole0 W

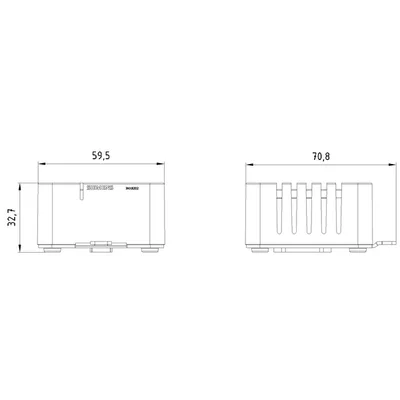

Mechanical Design

height32.7 mm

width60 mm

depth71.1 mm

mounting positionAny, preferably vertical

Net Weight154 g

Environmental conditions

minimum-25 °C

maximum70 °C

ambient temperature during storage minimum-40 °C

environmental category-10 °C to +55 °C at 95% relative humidity

Accessories 10

Genuine accessories that can be used with the Siemens 3NX8202 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NA6230-4KK01	Uyumlu ürün
3NA6232-4KK01	Uyumlu ürün
3NA6236-4KK01	Uyumlu ürün
3NA6240-4KK01	Uyumlu ürün
3NA6242-4KK01	Uyumlu ürün
3NA6244-4KK01	Uyumlu ürün
3NA6252-4KK01	Uyumlu ürün
3NA6352-4KK01	Uyumlu ürün
3NA6354-4KK01	Uyumlu ürün
3NA6360-4KK01	Uyumlu ürün
