How can I get a price quote for Siemens 3NW7221?

You can request a fast quote for Siemens 3NW7221 from Yılsa Engineering. Reference part number YLSSXHFX2WT5DF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NW7221 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NW7221 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NW7221?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

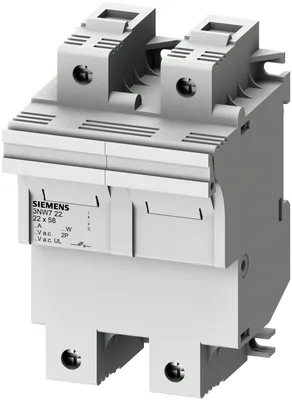

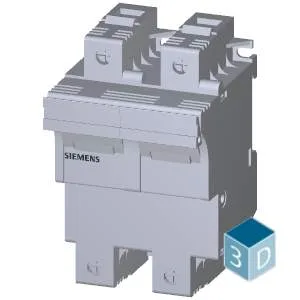

Siemens 3NW7221

SENTRON, cylindrical fuse holder, 22x58 mm, 2-pole, In: 100 A, Un AC: 690 V

SiemensMFR # 3NW7221SKU # YLSSXHFX2WT5DF

product brand nameSENTRON

product designationCylindrical fuse holder

number of poles2

size of fuse link22 x 58 mm

at AC rated value690 V

protection class IPIP20

Have questions?Chat on WhatsApp

About This Product

SENTRON, cylindrical fuse holder, 22x58 mm, 2-pole, In: 100 A, Un AC: 690 V

Siemens 3NW7221

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCylindrical fuse holder

General technical data

number of poles2

size of fuse link22 x 58 mm

Supply voltage

at AC rated value690 V

protection class IPIP20

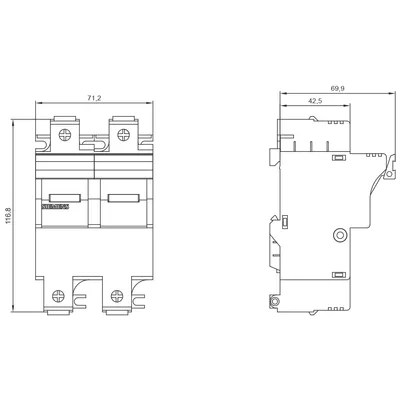

Mechanical Design

height117 mm

width72 mm

depth70 mm

Net Weight347 g

Certificates

reference code according to IEC 81346-2F

Accessories 20

Genuine accessories that can be used with the Siemens 3NW7221 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NW7902	Aksesuar
3NC1000	Aksesuar · NH fuse system
3NW8220-1	Seçmeli zorunlu ürün
3NW8217-1	Seçmeli zorunlu ürün
3NW8210-1	Seçmeli zorunlu ürün
3NW8207-1	Seçmeli zorunlu ürün
3NW8205-1	Seçmeli zorunlu ürün
3NW8222-1	Seçmeli zorunlu ürün
3NW8212-1	Seçmeli zorunlu ürün
3NW6230-1	Seçmeli zorunlu ürün
3NW6224-1	Seçmeli zorunlu ürün
3NW6222-1	Seçmeli zorunlu ürün
3NW6220-1	Seçmeli zorunlu ürün
3NW6217-1	Seçmeli zorunlu ürün
3NW6212-1	Seçmeli zorunlu ürün
3NW6210-1	Seçmeli zorunlu ürün
3NW6207-1	Seçmeli zorunlu ürün
3NW6205-1	Seçmeli zorunlu ürün
3NW8224-1	Seçmeli zorunlu ürün
3NW8230-1	Seçmeli zorunlu ürün
