How can I get a price quote for Siemens 3NP5360-0EA86?

You can request a fast quote for Siemens 3NP5360-0EA86 from Yılsa Engineering. Reference part number CEY-8EF3B031CB61. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NP5360-0EA86 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NP5360-0EA86 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NP5360-0EA86?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

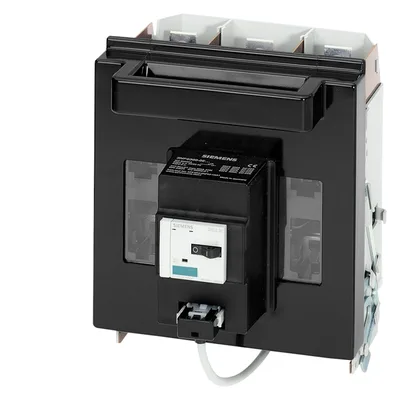

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3NP5360-0EA86

SENTRON, Fuse switch disconnector 3NP5, 3-pole, NH2, 400 A, for assembly and installation on mounting plate, with High-speed closing, screw terminal, Fuse monitoring: through 3RV, Auxiliary switch at Switch disconnector: 1 NO+1 NC, Auxiliary switch at the Fuse monitoring: 1 NO+1 NC

SiemensMFR # 3NP5360-0EA86SKU # CEY-8EF3B031CB61

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the safety monitoringby 3RV

design of the actuating elementCover handle

design of the load switch strip formNo

number of poles3

Have questions?Chat on WhatsApp

About This Product

Siemens 3NP5360-0EA86

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the productauxiliary switch at the switch disconnector: 1 NO + 1 NC, auxiliary switch at the fuse monitoring device: 1 NO + 1 NC

design of the safety monitoringby 3RV

design of the actuating elementCover handle

design of the load switch strip formNo

General technical data

number of poles3

size of disconnecting linkNH1, NH2

size of fuse linkNH1, NH2

mounting typeFixed mounting

fuse systemLV HRC fuse

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value maximum690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole5 W

Main circuit

operational current rated value400 A

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

Product function

product function fuse monitoringYes

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value4 kA

Connections

type of electrical connection6 - 240 mm²

for main current circuitscrew-type terminals

Mechanical Design

height300 mm

width231 mm

depth192 mm

fastening methodMounting plate

floor mountingYes

rail mountingNo

Net Weight6.903 kg

Environmental conditions

installation altitude at height above sea level maximum2 000 m

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Accessories 55

Genuine accessories that can be used with the Siemens 3NP5360-0EA86 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3TX6546-3B	Aksesuar · Terminal covers · terminal covers
3NY1103	Aksesuar
3NY1910	Aksesuar
3NY1911	Aksesuar
3NY1211	Aksesuar
3NY1245	Aksesuar
3NY4012	Aksesuar
3NY1422	Aksesuar
3NA6254-4	Seçmeli zorunlu ürün
3NA7242	Seçmeli zorunlu ürün
3NA7242-6	Seçmeli zorunlu ürün
3NA7244	Seçmeli zorunlu ürün
3NA7244-6	Seçmeli zorunlu ürün
3NA7250-6	Seçmeli zorunlu ürün
3NA7252	Seçmeli zorunlu ürün
3NA7252-6	Seçmeli zorunlu ürün
3ND2244	Seçmeli zorunlu ürün
3ND2252	Seçmeli zorunlu ürün
3ND2254	Seçmeli zorunlu ürün
3NA3242-4KK01	Seçmeli zorunlu ürün
3NA3244-4KK01	Seçmeli zorunlu ürün
3NA3244-4KK03	Seçmeli zorunlu ürün
3NA3252-4KK01	Seçmeli zorunlu ürün
3NA3242-4KK02	Seçmeli zorunlu ürün
3NA3244-4KK02	Seçmeli zorunlu ürün
3NA3244-4KK04	Seçmeli zorunlu ürün
3NA3252-4KK02	Seçmeli zorunlu ürün
3NA6242-4KK01	Seçmeli zorunlu ürün
3NA6242-4KK02	Seçmeli zorunlu ürün
3NA6244-4KK01	Seçmeli zorunlu ürün
3NA6244-4KK02	Seçmeli zorunlu ürün
3NA6254	Seçmeli zorunlu ürün
3NA6252-4KK01	Seçmeli zorunlu ürün
3NA6252-6	Seçmeli zorunlu ürün
3NA6252	Seçmeli zorunlu ürün
3NA3250	Seçmeli zorunlu ürün
3NA3252	Seçmeli zorunlu ürün
3NA3254	Seçmeli zorunlu ürün
3NA3244-6	Seçmeli zorunlu ürün
3NA3252-6	Seçmeli zorunlu ürün
3NA3242	Seçmeli zorunlu ürün
3NA3242-6	Seçmeli zorunlu ürün
3NA3244	Seçmeli zorunlu ürün
3NA3250-6	Seçmeli zorunlu ürün
3NA6242	Seçmeli zorunlu ürün
3NA6242-4	Seçmeli zorunlu ürün
3NA6242-6	Seçmeli zorunlu ürün
3NA6244	Seçmeli zorunlu ürün
3NA6244-4	Seçmeli zorunlu ürün
3NA6244-6	Seçmeli zorunlu ürün
3NA6250	Seçmeli zorunlu ürün
3NA6250-4	Seçmeli zorunlu ürün
3NA6250-6	Seçmeli zorunlu ürün
3NA6252-4	Seçmeli zorunlu ürün
3NA6252-4KK02	Seçmeli zorunlu ürün
