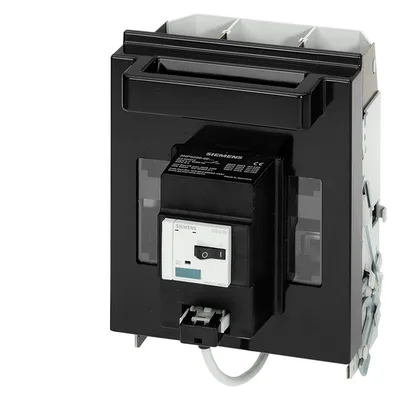

Siemens 3NP5260-0EA86

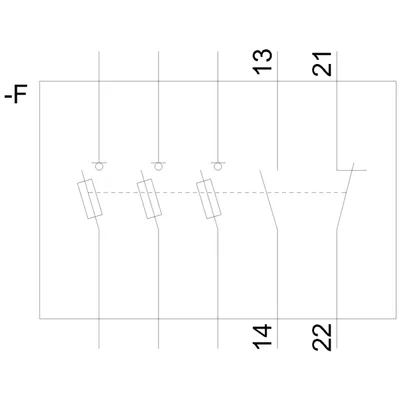

see newsletter https://support.industry.siemens.com/cs/ww/en/view/110004588 disconnector 3NP5, 3-pole, NH1, 250 A, for assembly and installation on mounting plate, with High-speed closing, screw terminal, Fuse monitoring: through 3RV, Auxiliary switch at Switch disconnector: 1 NO+1 NC, Auxiliary switch at the Fuse monitoring: 1 NO+1 NC

SiemensMFR # 3NP5260-0EA86SKU # CEY-8EF3B031CB3A

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the safety monitoringby 3RV

design of the actuating elementCover handle

design of the load switch strip formNo

number of poles3

Have questions?Chat on WhatsApp

About This Product

Siemens 3NP5260-0EA86

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the productauxiliary switch at the switch disconnector: 1 NO + 1 NC, auxiliary switch at the fuse monitoring device: 1 NO + 1 NC

design of the safety monitoringby 3RV

design of the actuating elementCover handle

design of the load switch strip formNo

General technical data

number of poles3

size of disconnecting linkNH0, NH1

size of fuse linkNH0, NH1

mounting typeFixed mounting

fuse systemLV HRC fuse

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value maximum690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.66 W

Main circuit

operational current rated value250 A

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

Product function

product function fuse monitoringYes

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value2.5 kA

Connections

type of electrical connection6 - 150 mm²

for main current circuitscrew-type terminals

Mechanical Design

height300 mm

width207 mm

depth176 mm

fastening methodMounting plate

floor mountingYes

rail mountingNo

Net Weight5.791 kg

Environmental conditions

installation altitude at height above sea level maximum2 000 m

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Accessories 29

Genuine accessories that can be used with the Siemens 3NP5260-0EA86 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NY1102	Aksesuar
3NY1210	Aksesuar
3NY1241	Aksesuar
3NY1907	Aksesuar
3NY3034	Aksesuar
3NY4011	Aksesuar
3NY1421	Aksesuar
3NY1910	Aksesuar
3NY1911	Aksesuar
3NA6142-4	Seçmeli zorunlu ürün
3NA7136	Seçmeli zorunlu ürün
3NA7136-6	Seçmeli zorunlu ürün
3NA7140	Seçmeli zorunlu ürün
3NA7140-6	Seçmeli zorunlu ürün
3NA7142	Seçmeli zorunlu ürün
3ND2136	Seçmeli zorunlu ürün
3ND2140	Seçmeli zorunlu ürün
3NA6142	Seçmeli zorunlu ürün
3NA6140-6	Seçmeli zorunlu ürün
3NA6140-4	Seçmeli zorunlu ürün
3NA6140	Seçmeli zorunlu ürün
3NA3142	Seçmeli zorunlu ürün
3NA3136-6	Seçmeli zorunlu ürün
3NA3140-6	Seçmeli zorunlu ürün
3NA3136	Seçmeli zorunlu ürün
3NA6136	Seçmeli zorunlu ürün
3NA6136-4	Seçmeli zorunlu ürün
3NA6136-6	Seçmeli zorunlu ürün
3NA3140	Seçmeli zorunlu ürün
