How can I get a price quote for Siemens 3NP5060-0CB10?

You can request a fast quote for Siemens 3NP5060-0CB10 from Yılsa Engineering. Reference part number CEY-8EF3B031CB48. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NP5060-0CB10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NP5060-0CB10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NP5060-0CB10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

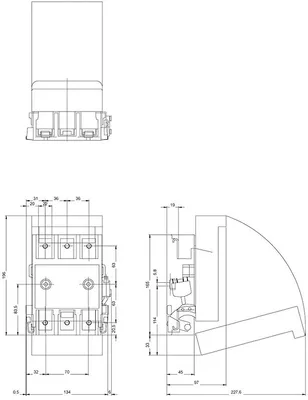

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3NP5060-0CB10

see newsletter https://support.industry.siemens.com/cs/ww/en/view/110004588 disconnector 3NP5, 3-pole, NH00, 160 A, for assembly and installation on mounting plate, with High-speed closing, Clamp terminal, Auxiliary switch at Switch disconnector: 1 NO+1 NC

SiemensMFR # 3NP5060-0CB10SKU # CEY-8EF3B031CB48

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the actuating elementCover handle

design of the load switch strip formNo

number of poles3

size of disconnecting linkNH000, NH00

Have questions?Chat on WhatsApp

About This Product

Siemens 3NP5060-0CB10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation3NP5 fuse switch disconnector

design of the productauxiliary switch at the switch disconnector: 1 NO + 1 NC

design of the actuating elementCover handle

design of the load switch strip formNo

General technical data

number of poles3

size of disconnecting linkNH000, NH00

size of fuse linkNH000, NH00

mounting typeFixed mounting

fuse systemLV HRC fuse

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value maximum690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP00

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.66 W

Main circuit

operational current rated value160 A

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

Product function

product function fuse monitoringNo

Short circuit

maximum short-circuit current breaking capacity (Icu) at 400 V rated value1.6 kA

Connections

type of electrical connection1 conductor 2.5 - 50 mm², 2 conductors 1x2.5 - 50 mm² a. 1x2.5 - 35 mm²

for main current circuitterminal clamp

Mechanical Design

height196 mm

width134 mm

depth97.5 mm

fastening methodMounting plate

floor mountingYes

rail mountingNo

Net Weight1.695 kg

Environmental conditions

installation altitude at height above sea level maximum2 000 m

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Accessories 25

Genuine accessories that can be used with the Siemens 3NP5060-0CB10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NY1074	Aksesuar
3NY1125	Aksesuar
3NY1116	Aksesuar
3NY1115	Aksesuar
3NY1108	Aksesuar
3NY1107	Aksesuar
3NY1106	Aksesuar
3NY1105	Aksesuar
3NY1208	Aksesuar
3NY4031	Aksesuar
3NY3033	Aksesuar
3NY1903	Aksesuar
3ND1830	Seçmeli zorunlu ürün
3NA7832	Seçmeli zorunlu ürün
3NA7830-7	Seçmeli zorunlu ürün
3NA7830-6	Seçmeli zorunlu ürün
3NA6832	Seçmeli zorunlu ürün
3NA6830-7	Seçmeli zorunlu ürün
3NA6830-6	Seçmeli zorunlu ürün
3NA6832-4	Seçmeli zorunlu ürün
3NA6830-4KK	Seçmeli zorunlu ürün
3NA3830-7	Seçmeli zorunlu ürün
3ND1832	Seçmeli zorunlu ürün
3NA3830-6	Seçmeli zorunlu ürün
3NA3832	Seçmeli zorunlu ürün
