How can I get a price quote for Siemens 3NP1163-1DA20?

You can request a fast quote for Siemens 3NP1163-1DA20 from Yılsa Engineering. Reference part number CEY-8EF3B0308929. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NP1163-1DA20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NP1163-1DA20 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NP1163-1DA20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

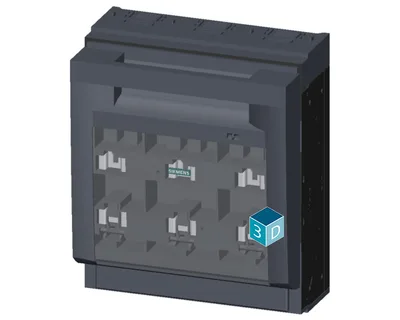

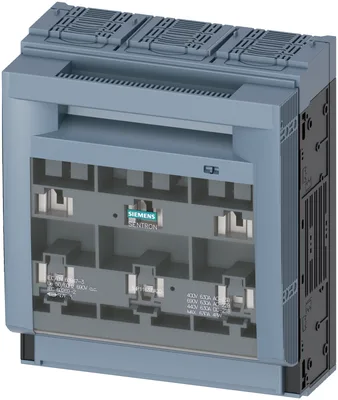

Siemens 3NP1163-1DA20

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, Box terminal, Cover level 70 mm

SiemensMFR # 3NP1163-1DA20SKU # CEY-8EF3B0308929

product designationFuse switch disconnector

design of the safety monitoringWithout

design of the load switch strip formNo

number of poles3

size of disconnecting link3 and 2

size of fuse linkNH2, NH3

Have questions?Chat on WhatsApp

About This Product

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH3, 630 A, for assembly and installation on mounting plate, Box terminal, Cover level 70 mm

Siemens 3NP1163-1DA20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationFuse switch disconnector

design of the safety monitoringWithout

design of the load switch strip formNo

type of the driving mechanism motor driveNo

General technical data

number of poles3

type of deviceFor assembly and installation on mounting plate

size of disconnecting link3 and 2

size of fuse linkNH2, NH3

let-through current with closed switch maximum60 kA

mechanical service life (operating cycles) typical1 000

I2t value with closed switch maximum5 400 kA²·s

at AC-22 B0.65

at AC-23 B0.35

with capacitive load-0.25

fuse systemLV HRC fuse

degree of pollution3

Voltage

rated value690 V

with degree of pollution 3 at AC rated value690 V

with degree of pollution 2 at AC rated value1 000 V

power factor at AC-21 B0.95

surge voltage resistance rated value8 kV

— at 35 °C rated value630 A

— at 40 °C rated value610 A

— at 45 °C rated value575 A

— at 50 °C rated value555 A

— at 55 °C rated value530 A

— at AC-21 B at 240 V rated value630 A

— at AC-21 B at 400 V rated value630 A

— at AC-21 B at 500 V rated value630 A

— at AC-21 B at 690 V rated value630 A

— at AC-22 B at 240 V rated value630 A

— at AC-22 B at 400 V rated value630 A

— at AC-22 B at 500 V rated value630 A

— at AC-22 B at 690 V rated value500 A

— at AC-23 B at 690 V rated value200 A

— at AC-23 B at 500 V rated value500 A

— at AC-23 B at 400 V rated value630 A

— at AC-23 B at 240 V rated value630 A

— at DC-21 B at 120 V rated value630 A

— at DC-21 B at 240 V rated value630 A

— at DC-21 B at 440 V rated value630 A

— at DC-22 B at 120 V rated value630 A

— at DC-22 B at 240 V rated value630 A

— at DC-22 B at 440 V rated value500 A

— at DC-23 B at 120 V rated value400 A

— at DC-23 B at 240 V rated value400 A

— at DC-23 B at 440 V rated value250 A

let-through current with high-speed activation maximum50 kA

at AC rated value maximum690 V

at DC rated value440 V

at DC rated value maximum440 V

Protection class

with closed switch with cover or cable lug coverIP40

with closed switch without cover or cable lug coverIP30

openIP20

Dissipation

with conventional rated thermal current without fuse per pole30 W

with conventional rated thermal current without fuse per device90 W

for rated value of the current at AC in hot operating state per pole36 W

of the fuse per fuse maximum48 W

Main circuit

rated value630 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product function phase failure monitoringNo

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional phase failure monitoringYes

product extension optional fuse monitoringYes

product extension optional voltage triggerNo

product extension optional overvoltage protection monitoringYes

Product function

product function overvoltage protection monitoringNo

Short circuit

at AC at 240 V with high-speed activation rated value50 kA

at AC at 500 V with high-speed activation rated value50 kA

at AC at 690 V with high-speed activation rated value50 kA

with closed switch at AC at 240 V rated value100 kA

with closed switch at AC at 500 V rated value100 kA

with closed switch at AC at 690 V rated value100 kA

Connections

arrangement of electrical connectors for main current circuitother

solid or stranded minimum50 mm²

solid or stranded maximum300 mm²

finely stranded with core end processing minimum120 mm²

finely stranded with core end processing maximum240 mm²

stranded minimum50 mm²

stranded maximum300 mm²

minimum25 N·m

maximum25 N·m

type of connectable conductor cross-sections of the laminated conductors maximum32 x 20 mm

type of connection technologyBox terminal

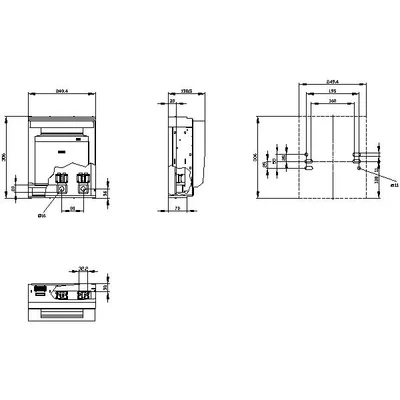

Mechanical Design

height306 mm

width249.4 mm

depth138.5 mm

fastening methodmounting plate

floor mountingYes

rail mountingNo

mounting positionhorizontal/vertical

Net Weight5.15 kg

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q

Accessories 37

Genuine accessories that can be used with the Siemens 3NP1163-1DA20 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NP1900-1EF00	Aksesuar
3NP1941-1EC00	Aksesuar
3NP1964-1MA20	Aksesuar
3NG1402	Aksesuar · NH fuse system
3NP1900-1HA00	Aksesuar
3NP1940-1FA00	Aksesuar
3NP1940-1FB00	Aksesuar
3NP1943-1CF00	Aksesuar
3NP1953-1BG40	Aksesuar
3NP1963-1CB00	Aksesuar
3NP1963-1CD00	Aksesuar
3NP1963-1DA00	Aksesuar
3NP1963-1GB20	Bileşen
3NP1963-1GB30	Bileşen
3NP1963-1GB50	Bileşen
3NP1963-1GB10	Bileşen
3NP1963-1GA00	Bileşen
3NP1963-1GB45	Bileşen
3NP1963-1GB42	Bileşen
3NA3354-6	Seçmeli zorunlu ürün
3NA3352	Seçmeli zorunlu ürün
3NA3352-6	Seçmeli zorunlu ürün
3NA3354	Seçmeli zorunlu ürün
3NA3360	Seçmeli zorunlu ürün
3NA3360-6	Seçmeli zorunlu ürün
3NA3362	Seçmeli zorunlu ürün
3NA3362-6	Seçmeli zorunlu ürün
3NA3365	Seçmeli zorunlu ürün
3NA3365-6	Seçmeli zorunlu ürün
3ND1365	Seçmeli zorunlu ürün
3ND2352	Seçmeli zorunlu ürün
3ND2354	Seçmeli zorunlu ürün
3ND2360	Seçmeli zorunlu ürün
3NA3365-0MJ	Seçmeli zorunlu ürün
3NA6352-4KK01	Seçmeli zorunlu ürün
3NA6354-4KK01	Seçmeli zorunlu ürün
3NA6360-4KK01	Seçmeli zorunlu ürün
