How can I get a price quote for Siemens 3NP1153-1DA23?

You can request a fast quote for Siemens 3NP1153-1DA23 from Yılsa Engineering. Reference part number CEY-8EF3B0395A04. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NP1153-1DA23 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NP1153-1DA23 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NP1153-1DA23?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

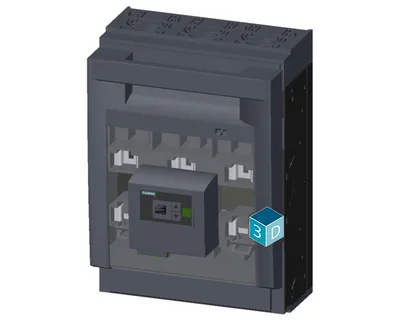

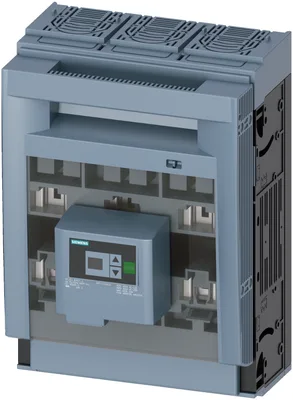

Siemens 3NP1153-1DA23

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH2, 400 A, for assembly and installation on mounting plate, Box terminal, Fuse monitoring: electronic EFM20, Cover level 70 mm

SiemensMFR # 3NP1153-1DA23SKU # CEY-8EF3B0395A04

product designationFuse switch disconnector

design of the safety monitoringelectronic EFM 20

design of the load switch strip formNo

number of poles3

size of disconnecting link2 and 1

size of fuse linkNH1, NH2

Have questions?Chat on WhatsApp

About This Product

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH2, 400 A, for assembly and installation on mounting plate, Box terminal, Fuse monitoring: electronic EFM20, Cover level 70 mm

Siemens 3NP1153-1DA23

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationFuse switch disconnector

design of the safety monitoringelectronic EFM 20

design of the load switch strip formNo

type of the driving mechanism motor driveNo

General technical data

number of poles3

type of deviceFor assembly and installation on mounting plate

size of disconnecting link2 and 1

size of fuse linkNH1, NH2

let-through current with closed switch maximum40 kA

mechanical service life (operating cycles) typical1 000

I2t value with closed switch maximum2 150 kA²·s

at AC-22 B0.65

at AC-23 B0.35

with capacitive load-0.25

fuse systemLV HRC fuse

degree of pollution2

Voltage

rated value690 V

with degree of pollution 3 at AC rated value690 V

with degree of pollution 2 at AC rated value1 000 V

power factor at AC-21 B0.95

surge voltage resistance rated value8 kV

— at 35 °C rated value400 A

— at 40 °C rated value400 A

— at 45 °C rated value392 A

— at 50 °C rated value372 A

— at 55 °C rated value356 A

— at AC-21 B at 240 V rated value400 A

— at AC-21 B at 400 V rated value400 A

— at AC-21 B at 500 V rated value400 A

— at AC-21 B at 690 V rated value400 A

— at AC-22 B at 240 V rated value400 A

— at AC-22 B at 400 V rated value400 A

— at AC-22 B at 500 V rated value400 A

— at AC-22 B at 690 V rated value400 A

— at AC-23 B at 690 V rated value125 A

— at AC-23 B at 500 V rated value315 A

— at AC-23 B at 400 V rated value400 A

— at AC-23 B at 240 V rated value400 A

let-through current with high-speed activation maximum40 kA

at AC rated value minimum230 V

at AC rated value maximum690 V

Protection class

with closed switch with cover or cable lug coverIP40

with closed switch without cover or cable lug coverIP30

openIP20

Dissipation

with conventional rated thermal current without fuse per pole14 W

with conventional rated thermal current without fuse per device42 W

for rated value of the current at AC in hot operating state per pole16.8 W

of the fuse per fuse maximum34 W

Main circuit

rated value400 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product function phase failure monitoringYes

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional voltage triggerNo

Product function

product function overvoltage protection monitoringYes

Short circuit

at AC at 240 V with high-speed activation rated value80 kA

at AC at 500 V with high-speed activation rated value80 kA

at AC at 690 V with high-speed activation rated value50 kA

with closed switch at AC at 240 V rated value100 kA

with closed switch at AC at 500 V rated value100 kA

with closed switch at AC at 690 V rated value100 kA

Connections

arrangement of electrical connectors for main current circuitother

solid or stranded minimum120 mm²

solid or stranded maximum300 mm²

finely stranded with core end processing minimum120 mm²

finely stranded with core end processing maximum240 mm²

stranded minimum120 mm²

stranded maximum300 mm²

minimum25 N·m

maximum25 N·m

type of connectable conductor cross-sections of the laminated conductors maximum32 x 10 mm

type of connection technologyBox terminal

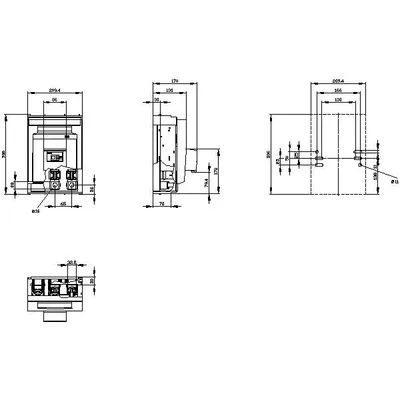

Mechanical Design

height306 mm

width209.4 mm

depth161.6 mm

fastening methodmounting plate

floor mountingYes

rail mountingNo

mounting positionhorizontal/vertical

Net Weight4.822 kg

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q

Accessories 72

Genuine accessories that can be used with the Siemens 3NP1153-1DA23 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NP1900-1EF00	Aksesuar
3NP1953-1DA00	Aksesuar
3NP1953-1CD00	Aksesuar
3NP1953-1CB00	Aksesuar
3NP1943-1CF00	Aksesuar
3NP1940-1FB00	Aksesuar
3NP1940-1FA00	Aksesuar
3NP1900-1HA00	Aksesuar
3NG1302	Aksesuar · NH fuse system
3NP1954-1MA20	Aksesuar
3NP1941-1EC00	Aksesuar
3NP1953-1BG40	Aksesuar
3NP1953-1GB50	Bileşen
3NP1953-1GB30	Bileşen
3NP1953-1GB20	Bileşen
3NP1953-1GB10	Bileşen
3NP1953-1GA00	Bileşen
3NP1953-1GB45	Bileşen
3NP1953-1GB42	Bileşen
3NA7240-6	Seçmeli zorunlu ürün
3NA7240	Seçmeli zorunlu ürün
3NA6254-4	Seçmeli zorunlu ürün
3NA6254	Seçmeli zorunlu ürün
3NA6252-6	Seçmeli zorunlu ürün
3NA6252-4	Seçmeli zorunlu ürün
3NA6252	Seçmeli zorunlu ürün
3NA7242	Seçmeli zorunlu ürün
3NA6250-6	Seçmeli zorunlu ürün
3NA6250	Seçmeli zorunlu ürün
3NA6244-6	Seçmeli zorunlu ürün
3NA6244-4	Seçmeli zorunlu ürün
3NA6244	Seçmeli zorunlu ürün
3NA6242-6	Seçmeli zorunlu ürün
3NA6242-4	Seçmeli zorunlu ürün
3NA6242	Seçmeli zorunlu ürün
3NA6250-4	Seçmeli zorunlu ürün
3NA7242-6	Seçmeli zorunlu ürün
3NA7244	Seçmeli zorunlu ürün
3NA7244-6	Seçmeli zorunlu ürün
3NA3244-4KK02	Seçmeli zorunlu ürün
3NA3242-4KK02	Seçmeli zorunlu ürün
3NA3240-4KK04	Seçmeli zorunlu ürün
3NA3240-4KK02	Seçmeli zorunlu ürün
3NA3252-4KK01	Seçmeli zorunlu ürün
3NA3244-4KK03	Seçmeli zorunlu ürün
3NA3244-4KK01	Seçmeli zorunlu ürün
3NA3242-4KK01	Seçmeli zorunlu ürün
3NA3240-4KK03	Seçmeli zorunlu ürün
3NA3240-4KK01	Seçmeli zorunlu ürün
3ND2254	Seçmeli zorunlu ürün
3ND2252	Seçmeli zorunlu ürün
3ND2244	Seçmeli zorunlu ürün
3ND2240	Seçmeli zorunlu ürün
3NA7252-6	Seçmeli zorunlu ürün
3NA7252	Seçmeli zorunlu ürün
3NA7250-6	Seçmeli zorunlu ürün
3NA6240-6	Seçmeli zorunlu ürün
3NA3244-4KK04	Seçmeli zorunlu ürün
3NA6240-4	Seçmeli zorunlu ürün
3NA3250-6	Seçmeli zorunlu ürün
3NA3244	Seçmeli zorunlu ürün
3NA3242-6	Seçmeli zorunlu ürün
3NA3242	Seçmeli zorunlu ürün
3NA3240-6	Seçmeli zorunlu ürün
3NA3240	Seçmeli zorunlu ürün
3NA3252-6	Seçmeli zorunlu ürün
3NA3244-6	Seçmeli zorunlu ürün
3NA3254	Seçmeli zorunlu ürün
3NA3252	Seçmeli zorunlu ürün
3NA3250	Seçmeli zorunlu ürün
3NA6240	Seçmeli zorunlu ürün
3NA3252-4KK02	Seçmeli zorunlu ürün
