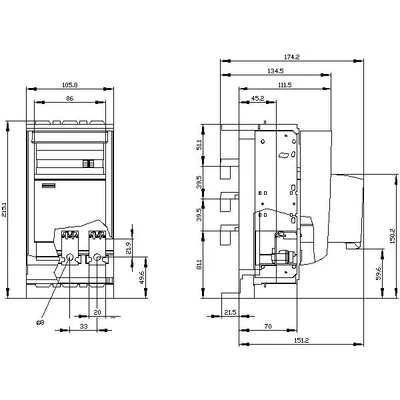

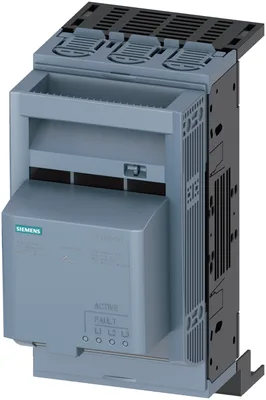

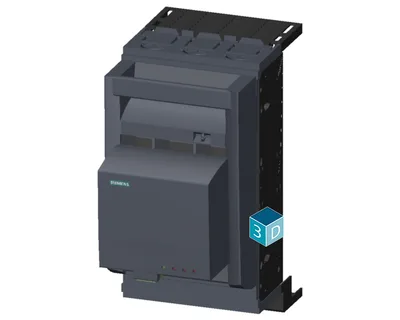

Siemens 3NP1133-1JB12

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for Rittal busbar system 40 mm, flat terminal, Fuse monitoring: electronic EFM10, Cover level 32/70 mm

SiemensMFR # 3NP1133-1JB12SKU # CEY-8EF3B0395458

product designationFuse switch disconnector

busbar designbusbar thickness 5 or 10 mm

design of the safety monitoringelectronic EFM 10

design of the load switch strip formNo

number of poles3

type of deviceFor Rittal 40 mm busbar system

Have questions?Chat on WhatsApp

About This Product

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH00, 160 A, for Rittal busbar system 40 mm, flat terminal, Fuse monitoring: electronic EFM10, Cover level 32/70 mm

Siemens 3NP1133-1JB12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationFuse switch disconnector

busbar designbusbar thickness 5 or 10 mm

design of the safety monitoringelectronic EFM 10

design of the load switch strip formNo

type of the driving mechanism motor driveNo

General technical data

number of poles3

type of deviceFor Rittal 40 mm busbar system

size of disconnecting link00 and 000

size of fuse linkNH000, NH00

let-through current with closed switch maximum23 kA

mechanical service life (operating cycles) typical2 000

I2t value with closed switch maximum223 kA²·s

at AC-22 B0.65

at AC-23 B0.45

with capacitive load-0.25

fuse systemLV HRC fuse

degree of pollution2

Voltage

rated value690 V

with degree of pollution 3 at AC rated value690 V

with degree of pollution 2 at AC rated value1 000 V

power factor at AC-21 B0.95

surge voltage resistance rated value8 kV

— at 35 °C rated value160 A

— at 40 °C rated value155 A

— at 45 °C rated value145 A

— at 50 °C rated value140 A

— at 55 °C rated value133 A

— at AC-21 B at 240 V rated value160 A

— at AC-21 B at 400 V rated value160 A

— at AC-21 B at 500 V rated value160 A

— at AC-21 B at 690 V rated value160 A

— at AC-22 B at 240 V rated value160 A

— at AC-22 B at 400 V rated value160 A

— at AC-22 B at 500 V rated value160 A

— at AC-22 B at 690 V rated value125 A

— at AC-23 B at 690 V rated value35 A

— at AC-23 B at 500 V rated value63 A

— at AC-23 B at 400 V rated value160 A

— at AC-23 B at 240 V rated value160 A

let-through current with high-speed activation maximum15 kA

at AC rated value minimum230 V

at AC rated value maximum690 V

Protection class

with closed switch with cover or cable lug coverIP40

with closed switch without cover or cable lug coverIP30

openIP20

Dissipation

with conventional rated thermal current without fuse per pole5 W

with conventional rated thermal current without fuse per device15 W

for rated value of the current at AC in hot operating state per pole5.7 W

of the fuse per fuse maximum12 W

Main circuit

rated value160 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product function phase failure monitoringNo

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional phase failure monitoringYes

product extension optional voltage triggerNo

product extension optional overvoltage protection monitoringYes

Product function

product function overvoltage protection monitoringNo

Short circuit

at AC at 240 V with high-speed activation rated value80 kA

at AC at 500 V with high-speed activation rated value80 kA

at AC at 690 V with high-speed activation rated value50 kA

with closed switch at AC at 240 V rated value120 kA

with closed switch at AC at 500 V rated value120 kA

with closed switch at AC at 690 V rated value100 kA

Connections

arrangement of electrical connectors for main current circuitother

solid or stranded minimum2.5 mm²

solid or stranded maximum95 mm²

stranded minimum2.5 mm²

stranded maximum95 mm²

minimum10 N·m

maximum12 N·m

type of connectable conductor cross-sections of the laminated conductors maximum24 x 12 mm

type of connection technologyFlat terminal

Mechanical Design

height215.1 mm

width105.8 mm

minimum12 mm

maximum15 mm

depth174.4 mm

fastening methodbusbar

floor mountingNo

rail mountingYes

mounting positionhorizontal/vertical

busbar center-to-center spacing40 mm

Net Weight1.362 kg

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q
