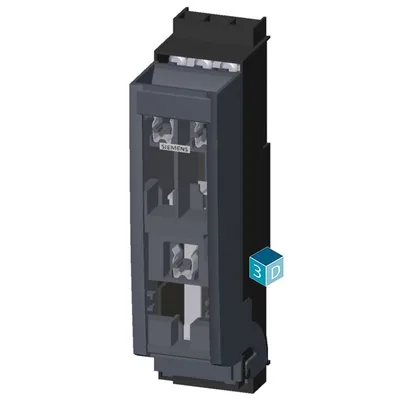

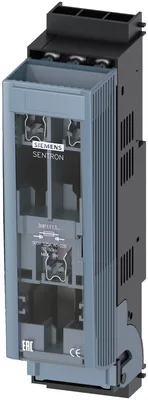

Siemens 3NP1113-1CA26

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for assembly and installation on Mounting plate, box terminal, Cover level 45 mm with auxiliary switch 1 CO

SiemensMFR # 3NP1113-1CA26SKU # YLS0KTWKQKBXU0D

product designationFuse switch disconnector

design of the safety monitoringWithout

design of the load switch strip formNo

number of poles3

size of disconnecting link0

size of fuse linkNH000

Have questions?Chat on WhatsApp

About This Product

SENTRON, Fuse switch disconnector 3NP1, 3-pole, NH000 narrow, 125 A, for assembly and installation on Mounting plate, box terminal, Cover level 45 mm with auxiliary switch 1 CO

Siemens 3NP1113-1CA26

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationFuse switch disconnector

design of the safety monitoringWithout

design of the load switch strip formNo

type of the driving mechanism motor driveNo

General technical data

number of poles3

type of deviceFor assembly and installation on mounting plate

size of disconnecting link0

size of fuse linkNH000

mechanical service life (operating cycles) typical2 000

at AC-22 B0.65

at AC-23 B0.35

fuse systemLV HRC fuse

degree of pollution2

Voltage

rated value800 V

with degree of pollution 2 at AC rated value800 V

power factor at AC-21 B0.95

surge voltage resistance rated value6 kV

— at 35 °C rated value125 A

— at 40 °C rated value111 A

— at 45 °C rated value95 A

— at 50 °C rated value76 A

— at 55 °C rated value51 A

— at AC-21 B at 240 V rated value125 A

— at AC-21 B at 400 V rated value125 A

— at AC-21 B at 500 V rated value125 A

— at AC-21 B at 690 V rated value80 A

— at AC-22 B at 240 V rated value125 A

— at AC-22 B at 400 V rated value125 A

— at AC-22 B at 500 V rated value125 A

— at AC-23 B at 400 V rated value125 A

— at AC-23 B at 240 V rated value125 A

at AC rated value maximum690 V

Protection class

with closed switch with cover or cable lug coverIP30

with closed switch without cover or cable lug coverIP10

openIP10

Dissipation

with conventional rated thermal current without fuse per pole3.6 W

with conventional rated thermal current without fuse per device10.8 W

for rated value of the current at AC in hot operating state per pole10.7 W

of the fuse per fuse maximum9 W

Main circuit

rated value125 A

Auxiliary circuit

number of CO contacts for auxiliary contacts1

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product function phase failure monitoringNo

undervoltage releaseNo

undervoltage release with leading contactNo

product feature sealableYes

product extension auxiliary switchYes

product extension optional locking capabilityYes

product extension optional phase failure monitoringNo

product extension optional fuse monitoringNo

product extension optional voltage triggerNo

product extension optional overvoltage protection monitoringNo

Product function

product function overvoltage protection monitoringNo

Short circuit

at AC at 240 V with high-speed activation rated value80 kA

at AC at 500 V with high-speed activation rated value120 kA

at AC at 690 V with high-speed activation rated value80 kA

with closed switch at AC at 240 V rated value80 kA

with closed switch at AC at 500 V rated value80 kA

with closed switch at AC at 690 V rated value80 kA

Connections

arrangement of electrical connectors for main current circuitother

solid or stranded minimum1.5 mm²

solid or stranded maximum50 mm²

finely stranded with core end processing minimum1.5 mm²

finely stranded with core end processing maximum35 mm²

stranded minimum16 mm²

stranded maximum50 mm²

minimum4 N·m

maximum5 N·m

type of connectable conductor cross-sections of the laminated conductors maximum6 x (9 x 0.8) mm

type of connection technologyBox terminal

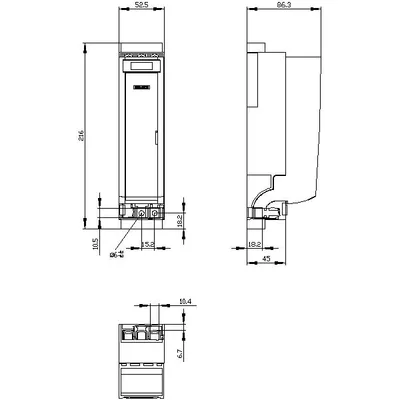

Mechanical Design

height216 mm

width53 mm

depth89 mm

fastening methodmounting plate

floor mountingYes

rail mountingNo

mounting positionhorizontal/vertical

Net Weight620 g

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-50 °C

maximum80 °C

Certificates

reference code according to IEC 81346-2Q

Accessories 37

Genuine accessories that can be used with the Siemens 3NP1113-1CA26 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NP1900-1EF00	Aksesuar
3NP1921-1EC00	Aksesuar
3NP1924-1ED10	Aksesuar
3NP1924-1MA20	Aksesuar
3NG1002	Aksesuar · NH fuse system
3NP1920-1FA00	Aksesuar
3NP1920-1FB00	Aksesuar
3NP1923-1CF00	Aksesuar
3NP1900-1HA00	Aksesuar
3NP1923-1BD00	Aksesuar
3NP1923-1BE20	Aksesuar
3NP1923-1CB00	Aksesuar
3NP1923-1EA00	Aksesuar
3NP1933-1CC00	Aksesuar
3NP1923-1DA00	Aksesuar
3NP1923-1CA30	Bileşen
3NP1923-1GB42	Bileşen
3NP1923-1GB45	Bileşen
3NP1923-1CA10	Bileşen
3NP1923-1CA20	Bileşen
3NP1923-1GA00	Bileşen
3NP1923-1GB20	Bileşen
3NP1923-1GB30	Bileşen
3NP1923-1GB50	Bileşen
3NA3824	Seçmeli zorunlu ürün
3NA3830	Seçmeli zorunlu ürün
3NA3832-8	Seçmeli zorunlu ürün
3NA6824-4	Seçmeli zorunlu ürün
3NA6830-4	Seçmeli zorunlu ürün
3NA6824	Seçmeli zorunlu ürün
3NA6830	Seçmeli zorunlu ürün
3NA7824	Seçmeli zorunlu ürün
3NA7830	Seçmeli zorunlu ürün
3ND1824	Seçmeli zorunlu ürün
3ND1830-8	Seçmeli zorunlu ürün
3NE1820-0	Seçmeli zorunlu ürün
8GK9912-0KK00	Seçmeli zorunlu ürün
