How can I get a price quote for Siemens 3NJ4103-3BF12?

You can request a fast quote for Siemens 3NJ4103-3BF12 from Yılsa Engineering. Reference part number CEY-8EF3B02F7CFA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NJ4103-3BF12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NJ4103-3BF12 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NJ4103-3BF12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

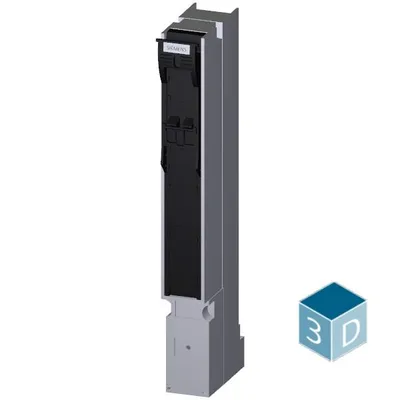

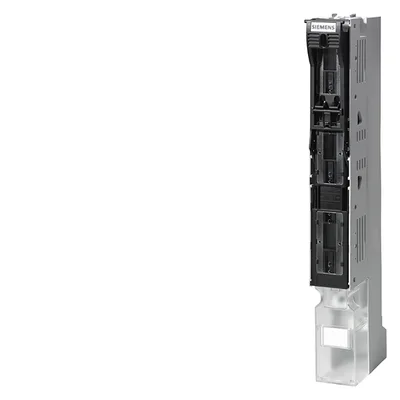

Siemens 3NJ4103-3BF12

in-line fuse switch disconnector 3-pole switchable, sz. 00 I=160 A, U=690 V screw terminal M8 Current transformer installation possible

SiemensMFR # 3NJ4103-3BF12SKU # CEY-8EF3B02F7CFA

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

Have questions?Chat on WhatsApp

About This Product

in-line fuse switch disconnector 3-pole switchable, sz. 00 I=160 A, U=690 V screw terminal M8 Current transformer installation possible

Siemens 3NJ4103-3BF12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

type of switching contact double breaking switching contactNo

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

General technical data

number of poles3

number of poles note3-pole switchable

type of deviceFor busbar system 100 mm

size of fuse linkNH000, NH00

fuse systemLV HRC fuse

Voltage

insulation voltage rated value800 V

at AC-21 B at 400 V rated value160 A

at AC-21 B at 500 V rated value160 A

at AC-21 B at 690 V rated value160 A

at AC-23 B at 400 V rated value160 A

at AC rated value690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP30

Dissipation

for rated value of the current at AC in hot operating state per pole6 W

maximum18 W

Main circuit

rated value160 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Suitability

suitability for operationSystem protection

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchNo

Product details

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

Short circuit

at AC-21 B at 400 V rated value80 kA

at AC-21 B at 500 V rated value80 kA

at AC-21 B at 690 V rated value80 kA

at AC-22 B at 400 V rated value80 kA

at AC-22 B at 500 V rated value80 kA

at AC-22 B at 690 V rated value80 kA

at AC-23 B at 400 V rated value80 kA

at AC-23 B at 500 V rated value80 kA

at AC-23 B at 690 V rated value80 kA

Connections

arrangement of electrical connectors for main current circuitScrew terminal

type of electrical connection for main current circuitM8 screw terminal

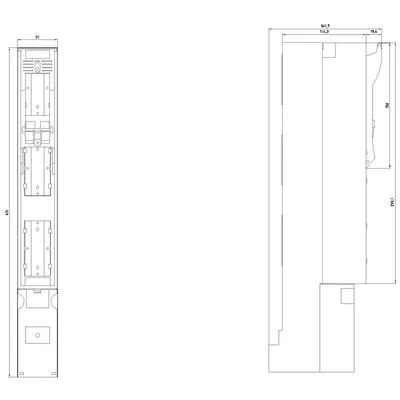

Mechanical Design

height410 mm

width50 mm

depth121 mm

fastening methodFlachanschluss, M 10

mounting positionvertical, horizontal

busbar center-to-center spacing100 mm

40 mmNo

50 mmNo

60 mmNo

100 mmYes

185 mmNo

Net Weight1.118 kg

Environmental conditions

minimum-25 °C

maximum55 °C

Accessories 29

Genuine accessories that can be used with the Siemens 3NJ4103-3BF12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NJ4912-2CA00	Aksesuar · Fuse switch disconnectors
3NJ4918-0DC02	Aksesuar · Fuse switch disconnectors
3NJ4911-4AA00	Aksesuar · Fuse switch disconnectors
3NJ4915-1FB20	Aksesuar · Fuse switch disconnectors
3NJ4915-1FB11	Aksesuar · Fuse switch disconnectors
3NJ4912-2DA00	Aksesuar · Fuse switch disconnectors
3NJ4911-1AA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2AA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2BA00	Aksesuar · Fuse switch disconnectors
3NJ4918-0AA00	Aksesuar · Fuse switch disconnectors
3NJ4913-1AA01	Aksesuar · Fuse switch disconnectors
3NJ4915-1BA00	Aksesuar · Fuse switch disconnectors
3NJ4915-1CA00	Aksesuar · Fuse switch disconnectors
3NJ4915-1EA20	Aksesuar · Fuse switch disconnectors
3NJ4915-1EB10	Aksesuar · Fuse switch disconnectors
3NJ4915-1EB20	Aksesuar · Fuse switch disconnectors
3NJ4915-1FA10	Aksesuar · Fuse switch disconnectors
3NJ4915-1FA11	Aksesuar · Fuse switch disconnectors
3NJ4915-1FA20	Aksesuar · Fuse switch disconnectors
3NJ4915-1FB10	Aksesuar · Fuse switch disconnectors
3NJ4915-1EA10	Aksesuar · Fuse switch disconnectors
8GK4751-4KK13	Uyumlu ürün
8GK4751-4KK23	Uyumlu ürün
8GK4751-4KK33	Uyumlu ürün
8GK4751-4KK10	Uyumlu ürün
8GK4751-4KK20	Uyumlu ürün
8GK4751-4KK30	Uyumlu ürün
3NA3030	Seçmeli zorunlu ürün
3NA3032	Seçmeli zorunlu ürün
