Siemens 3NJ4103-3BF02

in-line fuse switch disconnector 3-pole switchable, sz. 00 I=160 A, U=690 V screw terminal M8

SiemensMFR # 3NJ4103-3BF02SKU # CEY-8EF3B032C33E

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

Have questions?Chat on WhatsApp

About This Product

in-line fuse switch disconnector 3-pole switchable, sz. 00 I=160 A, U=690 V screw terminal M8

Siemens 3NJ4103-3BF02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

type of switching contact double breaking switching contactNo

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

General technical data

number of poles3

number of poles note3-pole switchable

type of deviceFor busbar system 100 mm

size of fuse linkNH000, NH00

fuse systemLV HRC fuse

Voltage

insulation voltage rated value800 V

at AC-21 B at 400 V rated value160 A

at AC-21 B at 500 V rated value160 A

at AC-21 B at 690 V rated value160 A

at AC-23 B at 400 V rated value160 A

at AC rated value690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP30

Dissipation

for rated value of the current at AC in hot operating state per pole6 W

maximum18 W

Main circuit

rated value160 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Suitability

suitability for operationSystem protection

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchNo

Product details

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

Short circuit

at AC-21 B at 400 V rated value80 kA

at AC-21 B at 500 V rated value80 kA

at AC-21 B at 690 V rated value80 kA

at AC-22 B at 400 V rated value80 kA

at AC-22 B at 500 V rated value80 kA

at AC-22 B at 690 V rated value80 kA

at AC-23 B at 400 V rated value80 kA

at AC-23 B at 500 V rated value80 kA

at AC-23 B at 690 V rated value80 kA

Connections

arrangement of electrical connectors for main current circuitScrew terminal

type of electrical connection for main current circuitM8 screw terminal

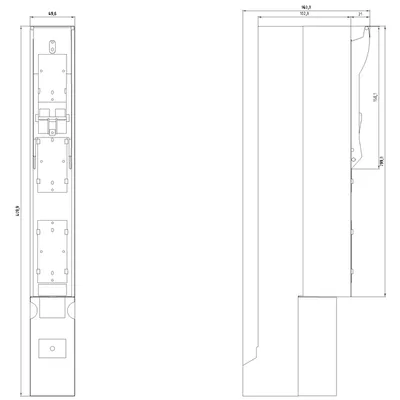

Mechanical Design

height410 mm

width50 mm

depth121 mm

fastening methodFlachanschluss, M 10

mounting positionvertical, horizontal

busbar center-to-center spacing100 mm

40 mmNo

50 mmNo

60 mmNo

100 mmYes

185 mmNo

Net Weight1.142 kg

Environmental conditions

minimum-25 °C

maximum55 °C
