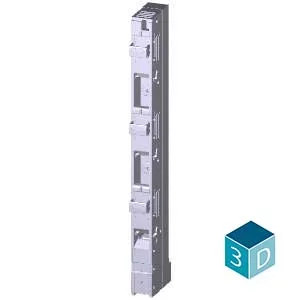

Siemens 3NJ4101-3BF01

In-line fuse switch disconnector 1-pole selectable, Sz. 00 I=160 A, U=690 V AC Flat terminal M8 for cable lug 1x 10-95 mm2

SiemensMFR # 3NJ4101-3BF01SKU # CEY-8EF3B02E46AC

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

Have questions?Chat on WhatsApp

About This Product

In-line fuse switch disconnector 1-pole selectable, Sz. 00 I=160 A, U=690 V AC Flat terminal M8 for cable lug 1x 10-95 mm2

Siemens 3NJ4101-3BF01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

type of switching contact double breaking switching contactNo

design of the auxiliary releaseWithout

design of the safety monitoringWithout

design of the load switch strip formYes

General technical data

number of poles3

number of poles note1-pole switchable

type of deviceFor busbar system 185 mm

size of fuse linkNH000, NH00

fuse systemLV HRC fuse

Voltage

insulation voltage rated value800 V

at AC-21 B at 400 V rated value160 A

at AC-21 B at 500 V rated value160 A

at AC-21 B at 690 V rated value160 A

at AC-23 B at 400 V rated value160 A

at AC rated value690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP30

Dissipation

for rated value of the current at AC in hot operating state per pole6 W

maximum18 W

Main circuit

rated value160 A

with capacitive load at 400 V rated value72 A

with capacitive load at 500 V rated value55 A

Suitability

suitability for operationSystem protection

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchNo

Product details

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

Short circuit

at AC-21 B at 400 V rated value50 kA

at AC-21 B at 500 V rated value50 kA

at AC-21 B at 690 V rated value50 kA

at AC-22 B at 400 V rated value50 kA

at AC-22 B at 500 V rated value50 kA

at AC-22 B at 690 V rated value50 kA

at AC-23 B at 400 V rated value50 kA

at AC-23 B at 500 V rated value50 kA

at AC-23 B at 690 V rated value50 kA

Connections

arrangement of electrical connectors for main current circuitScrew terminal

type of electrical connection for main current circuitscrew-type terminals

Mechanical Design

height647 mm

width50 mm

depth150 mm

fastening methodFlachanschluss, M 8

mounting positionvertical, horizontal

busbar center-to-center spacing185 mm

40 mmNo

50 mmNo

60 mmNo

100 mmNo

185 mmYes

Net Weight1.993 kg

Environmental conditions

minimum-25 °C

maximum55 °C

Accessories 16

Genuine accessories that can be used with the Siemens 3NJ4101-3BF01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NJ4912-1FA00	Aksesuar · Fuse switch disconnectors
3NJ4918-0AA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2BA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2AA00	Aksesuar · Fuse switch disconnectors
3NJ4911-1AA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2DA00	Aksesuar · Fuse switch disconnectors
3NJ4912-2CA00	Aksesuar · Fuse switch disconnectors
3NJ4912-1FA01	Aksesuar · Fuse switch disconnectors
8GK4751-4KK30	Uyumlu ürün
8GK4751-4KK20	Uyumlu ürün
8GK4751-4KK10	Uyumlu ürün
8GK4751-4KK33	Uyumlu ürün
8GK4751-4KK23	Uyumlu ürün
8GK4751-4KK13	Uyumlu ürün
3NA3030	Seçmeli zorunlu ürün
3NA3032	Seçmeli zorunlu ürün
