How can I get a price quote for Siemens 3NC3243-6B?

You can request a fast quote for Siemens 3NC3243-6B from Yılsa Engineering. Reference part number CEY-8EF3B03958FC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NC3243-6B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NC3243-6B genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NC3243-6B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

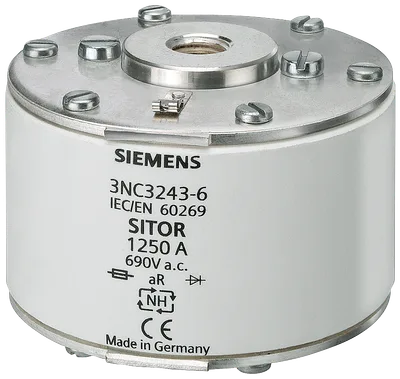

Siemens 3NC3243-6B

SITOR fuse link, with female thread on both sides, NH2, In: 1250 A, aR, Un AC: 690 V, Un DC: 440 V, without Indicator

SiemensMFR # 3NC3243-6BSKU # CEY-8EF3B03958FC

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith female thread on both sides

design of an identification indicatorWithout indicator

design of the switching contactwith female thread

design of the fuse linkSemiconductor protection fuse link

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with female thread on both sides, NH2, In: 1250 A, aR, Un AC: 690 V, Un DC: 440 V, without Indicator

Siemens 3NC3243-6B

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith female thread on both sides

design of an identification indicatorWithout indicator

design of the switching contactwith female thread

design of the fuse linkSemiconductor protection fuse link

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkaR

varying load factor (WL)0.85

type of voltage of the operating voltageAC/DC

operating voltage at AC according to UL rated value690 V

Supply voltage

at AC690 V

at DC440 V

Breaking Capacity

according to IEC 60947-2 rated value100 kA

Product details

product descriptionwith internal thread on both sides, corrosion-free, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight844 g

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 1

Genuine accessories that can be used with the Siemens 3NC3243-6B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
