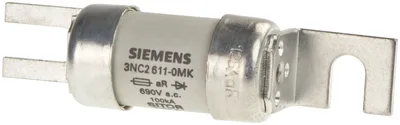

Photo may not represent actual item. Refer to name and product specs for all details.

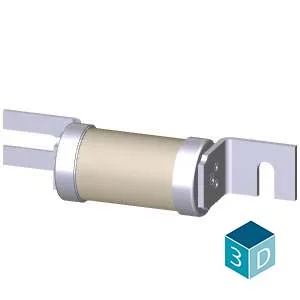

Siemens 3NC2625-0MK

SITOR fuse link, with Bolt-on links, In: 25 A, gR, Un AC: 690 V, Un DC: 440 V, without indicator

SiemensMFR # 3NC2625-0MKSKU # CEY-8EF3B0395910

product brand nameSENTRON

product designationSITOR fuse link

design of the productwith angle connector

design of an identification indicatorWithout indicator

design of the fuse linkSITOR, BS design

operating class of the fuse linkgR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with Bolt-on links, In: 25 A, gR, Un AC: 690 V, Un DC: 440 V, without indicator

Siemens 3NC2625-0MK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productwith angle connector

design of an identification indicatorWithout indicator

design of the switching contactwith M8 bolt-on links. mounting dimension: 80 mm. for screwing onto busbars

design of the fuse linkSITOR, BS design

General technical data

size of fuse system according to EN 60269-1Other (BS)

operating class of the fuse linkgR

type of voltage of the operating voltageAC/DC

Supply voltage

at AC690 V

at DC440 V

Breaking Capacity

at DC according to IEC 60947-2 rated value50 kA

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]9.5 W

for rated value of the current at AC in hot operating state per pole9.5 W

maximum9.5 W

Product details

product descriptionwith bolt-on links, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight0.099 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity
