How can I get a price quote for Siemens 3NC2291-5?

You can request a fast quote for Siemens 3NC2291-5 from Yılsa Engineering. Reference part number YLSVQRFZ1AEYJD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NC2291-5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NC2291-5 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NC2291-5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

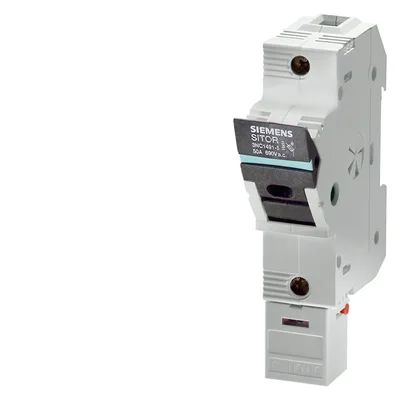

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3NC2291-5

SITOR fuse-disconnector with signaling switch microswitch connection: flat connector: A2.8 x 0.5 mm according to DIN 46244

SiemensMFR # 3NC2291-5SKU # YLSVQRFZ1AEYJD

product brand nameSENTRON

product designationSITOR fuse switch disconnector

design of the actuating elementswivel knob

number of poles1

size of fuse link22x58

utilization categoryAC20B/690 V

Have questions?Chat on WhatsApp

About This Product

SITOR fuse-disconnector with signaling switch microswitch connection: flat connector: A2.8 x 0.5 mm according to DIN 46244

Siemens 3NC2291-5

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse switch disconnector

design of the safety monitoringelectromechanical, contact: flat connector A2.8 x 0.5 mm according to DIN 46244

design of the actuating elementswivel knob

General technical data

number of poles1

size of fuse link22x58

utilization categoryAC20B/690 V

size of the fuse link22 x 58 mm

at AC rated value maximum690 V

at DC rated value maximum800 V

Protection class

protection class IP on the frontIP20

Main circuit

operational current rated value100 A

Suitability

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

Product function

product function fuse monitoringYes

Short circuit

conditional short-circuit current (Iq) rated value100 kA

Connections

minimum4 mm²

maximum50 mm²

type of electrical connection for main current circuitscrew-type terminals

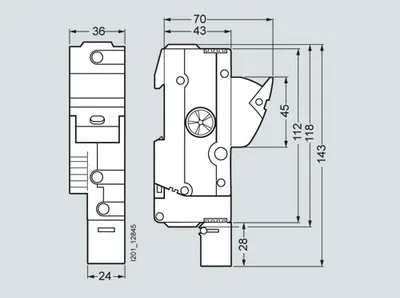

Mechanical Design

height143 mm

depth70 mm

floor mountingNo

rail mountingNo

Net Weight168 g

Accessories 24

Genuine accessories that can be used with the Siemens 3NC2291-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NC2200	Seçmeli zorunlu ürün
3NC2280	Seçmeli zorunlu ürün
3NC2263-0MK	Seçmeli zorunlu ürün
3NC2263	Seçmeli zorunlu ürün
3NC2250-0MK	Seçmeli zorunlu ürün
3NC2250	Seçmeli zorunlu ürün
3NC2240-0MK	Seçmeli zorunlu ürün
3NC2240	Seçmeli zorunlu ürün
3NC2232-0MK	Seçmeli zorunlu ürün
3NC2232	Seçmeli zorunlu ürün
3NC2225-0MK	Seçmeli zorunlu ürün
3NC2225	Seçmeli zorunlu ürün
3NC2220	Seçmeli zorunlu ürün
3NC2211-0MK	Seçmeli zorunlu ürün
3NC2200-0MK	Seçmeli zorunlu ürün
3NC2280-0MK	Seçmeli zorunlu ürün
3NC2263-5	Seçmeli zorunlu ürün
3NC2250-5	Seçmeli zorunlu ürün
3NC2240-5	Seçmeli zorunlu ürün
3NC2232-5	Seçmeli zorunlu ürün
3NC2225-5	Seçmeli zorunlu ürün
3NC2220-5	Seçmeli zorunlu ürün
3NC2200-5	Seçmeli zorunlu ürün
3NC2280-5	Seçmeli zorunlu ürün
