How can I get a price quote for Siemens 3NB1345-3KK11?

You can request a fast quote for Siemens 3NB1345-3KK11 from Yılsa Engineering. Reference part number YLSI5NSBNJV2L6D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NB1345-3KK11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NB1345-3KK11 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NB1345-3KK11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

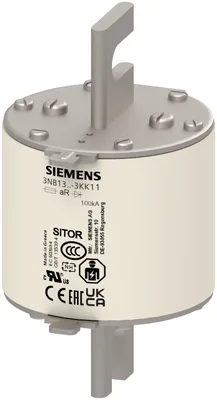

Siemens 3NB1345-3KK11

SITOR fuse size 3 800A aR 800V dc/1000V VSI 900V dc UL @MBC 8xIn screw connection M12 110mm slotted knives

SiemensMFR # 3NB1345-3KK11SKU # YLSI5NSBNJV2L6D

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorwith front indicator

design of the switching contactM12 110 mm slotted blade

design of the fuse linkSITOR, LV HRC design

Have questions?Chat on WhatsApp

About This Product

SITOR fuse size 3 800A aR 800V dc/1000V VSI 900V dc UL @MBC 8xIn screw connection M12 110mm slotted knives

Siemens 3NB1345-3KK11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorwith front indicator

design of the switching contactM12 110 mm slotted blade

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH3

operating class of the fuse linkaR

type of voltage of the operating voltageDC

Supply voltage

at DC800 V

Breaking Capacity

at DC according to IEC 60947-2 rated value100 kA

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]145 W

for rated value of the current at AC in hot operating state per pole145 W

maximum145 W

Product details

product descriptionwith slotted blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight1.068 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 4

Genuine accessories that can be used with the Siemens 3NB1345-3KK11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NJ4163-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4173-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4183-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NH5463	Seçmeli zorunlu ürün · LV HRC fuse system
