How can I get a price quote for Siemens 3NA6817-6KJ?

You can request a fast quote for Siemens 3NA6817-6KJ from Yılsa Engineering. Reference part number CEY-8EF3B0394F3C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NA6817-6KJ in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NA6817-6KJ genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NA6817-6KJ?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

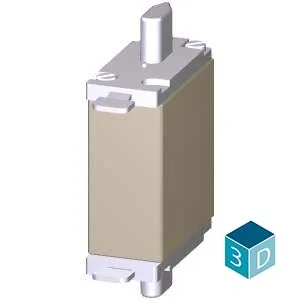

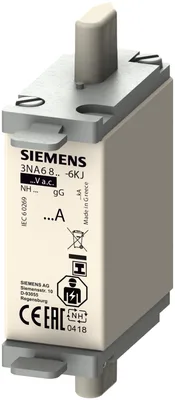

Siemens 3NA6817-6KJ

LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 690 V, Un DC: 250 V, Combined indicator, Insulated grip lugs

SiemensMFR # 3NA6817-6KJSKU # CEY-8EF3B0394F3C

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith blade contacts

design of an identification indicatorCombination alarms

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

Have questions?Chat on WhatsApp

About This Product

LV HRC fuse element, NH000, In: 40 A, gG, Un AC: 690 V, Un DC: 250 V, Combined indicator, Insulated grip lugs

Siemens 3NA6817-6KJ

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith blade contacts

design of an identification indicatorCombination alarms

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

General technical data

size of fuse system according to EN 60269-1NH000

operating class of the fuse linkgG

mounting typeinsulated grip lugs

type of voltage of the operating voltageAC/DC

operational current at AC rated value40 A

at AC690 V

at DC250 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

breaking capacity at AC according to IEC 60269 rated value120 kA

breaking capacity at DC with time constant ≤ 10 ms according to IEC 60269 rated value25 kA

Dissipation

power loss [W]3.6 W

power loss [W] for rated value of the current at AC in hot operating state per pole4 W

Mechanical Design

width of the enclosure21 mm

mounting positionAny, preferably vertical

Net Weight131 g

Environmental conditions

minimum-5 °C

maximum40 °C

environmental category-20 to +50 at 95% relative humidity

environmental category during storage90% at 20°C

Certificates

reference code according to IEC 81346-2FC

Accessories 14

Genuine accessories that can be used with the Siemens 3NA6817-6KJ motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KF1306-0LB11	Uyumlu ürün
3KF1306-0LB51	Uyumlu ürün
3KF1306-0MB11	Uyumlu ürün
3KF1306-0MR11	Uyumlu ürün
3KF1306-2LB11	Uyumlu ürün
3KF1306-4LB11	Uyumlu ürün
3KF1306-4RB11	Uyumlu ürün
3KF1406-0LB11	Uyumlu ürün
3KF1406-0MB11	Uyumlu ürün
3KF1406-2LB11	Uyumlu ürün
3KF1406-4LB11	Uyumlu ürün
3KF1406-4RB11	Uyumlu ürün
3KF1303-0MR11-8AA1	Uyumlu ürün
3KF1306-0MR11-8AA1	Uyumlu ürün
