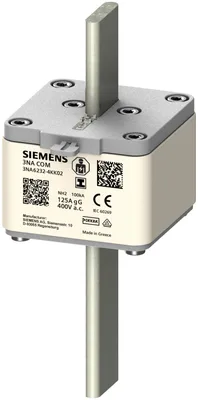

Siemens 3NA6232-4KK02

3NA COM LV HRC fuse link with measuring function with wireless communication frame size 2 125 A Un 400 V operational class gG without electronic module insulated grip lugs front indicator

SiemensMFR # 3NA6232-4KK02SKU # YLSWBV6MQYB9PY

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith metering function

design of an identification indicatorFront indicators

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

Have questions?Chat on WhatsApp

About This Product

3NA COM LV HRC fuse link with measuring function with wireless communication frame size 2 125 A Un 400 V operational class gG without electronic module insulated grip lugs front indicator

Siemens 3NA6232-4KK02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationLV HRC fuse link

design of the productWith metering function

design of an identification indicatorFront indicators

design of the switching contactNon-corroding, silver-plated

design of the fuse linkLV HRC fuse link

General technical data

size of fuse system according to EN 60269-1NH2

operating class of the fuse linkgG

mounting typeinsulated grip lugs

type of voltage of the operating voltageAC

operational current at AC rated value125 A

at AC400 V

Protection class

protection class IPIP20, with connected conductors

Breaking Capacity

breaking capacity at AC according to IEC 60269 rated value100 kA

Dissipation

power loss [W]7.5 W

Mechanical Design

height149 mm

width60 mm

width of the enclosure60 mm

depth72 mm

mounting positionAny, preferably vertical

Net Weight620 g

Environmental conditions

minimum-5 °C

maximum45 °C

ambient temperature during storage minimum-10 °C

environmental category-20 to +50 at 95% relative humidity

Certificates

reference code according to IEC 81346-2FC

Accessories 5

Genuine accessories that can be used with the Siemens 3NA6232-4KK02 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NA6232-4KK01	Uyumlu ürün
3NH2330	Seçmeli zorunlu ürün · LV HRC fuse system
3NH1330	Seçmeli zorunlu ürün · LV HRC fuse system
3NH6320	Seçmeli zorunlu ürün · LV HRC fuse system
3NH6330	Seçmeli zorunlu ürün · LV HRC fuse system
