How can I get a price quote for Siemens 3MT7900-0PN10?

You can request a fast quote for Siemens 3MT7900-0PN10 from Yılsa Engineering. Reference part number YLSMZRFPBLM3GX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3MT7900-0PN10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3MT7900-0PN10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3MT7900-0PN10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3MT7900-0PN10

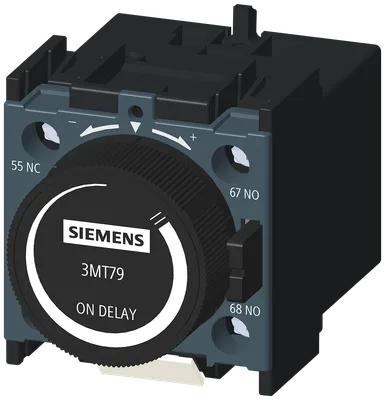

Pneumatic timer for 3MT7 contactors 06-95A ON delay Timer range 0.1-3 Sec Auxiliary contacts 1NO+1NC

SiemensMFR # 3MT7900-0PN10SKU # YLSMZRFPBLM3GX

product brand nameSINOVA

product designationpneumatic delay block

size of contactor0 to 4

protection class IP on the frontIP20

adjustable pickup delay time0.1 ... 3 s

Substance Prohibitance (day/month/year)07/01/2022

Have questions?Chat on WhatsApp

About This Product

Pneumatic timer for 3MT7 contactors 06-95A ON delay Timer range 0.1-3 Sec Auxiliary contacts 1NO+1NC

Siemens 3MT7900-0PN10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSINOVA

product designationpneumatic delay block

General technical data

size of contactor0 to 4

insulation voltage with degree of pollution 3 at AC rated value690 V

protection class IP on the frontIP20

mechanical service life (operating cycles) typical10

electrical endurance (operating cycles) at AC-15 at 230 V typical100

adjustable pickup delay time0.1 ... 3 s

relative accuracy of the operating delay time/backslide delay time related to set value10 %

Substance Prohibitance (day/month/year)07/01/2022

Net Weight0.077 kg

Ambient conditions

during operation-5 ... +55 °C

during storage-25 ... +70 °C

Auxiliary circuit

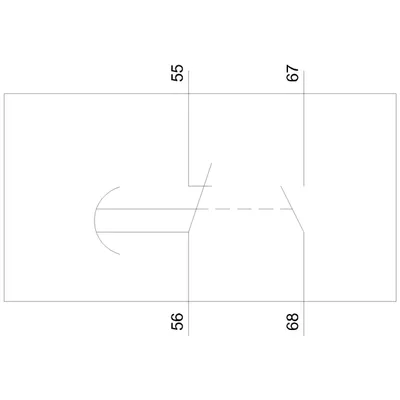

number of NC contacts delayed switching1

number of NO contacts delayed switching1

at 24 V6 A

at 230 V6 A

at 400 V4 A

at 500 V2.5 A

at 690 V1.5 A

at 24 V4 A

at 48 V2 A

at 110 V0.5 A

at 220 V0.3 A

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

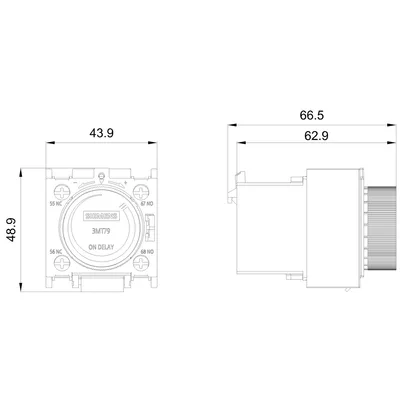

Installation/ mounting/ dimensions

fastening methodclip-on

height48.9 mm

width43.9 mm

depth66.5 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

finely stranded with core end processing1x (1.0 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²)

finely stranded without core end processing1x (1 ... 4 mm²), 2x (1 ... 4 mm²)

Electrical Safety

touch protection against electrical shockfinger-safe from front
